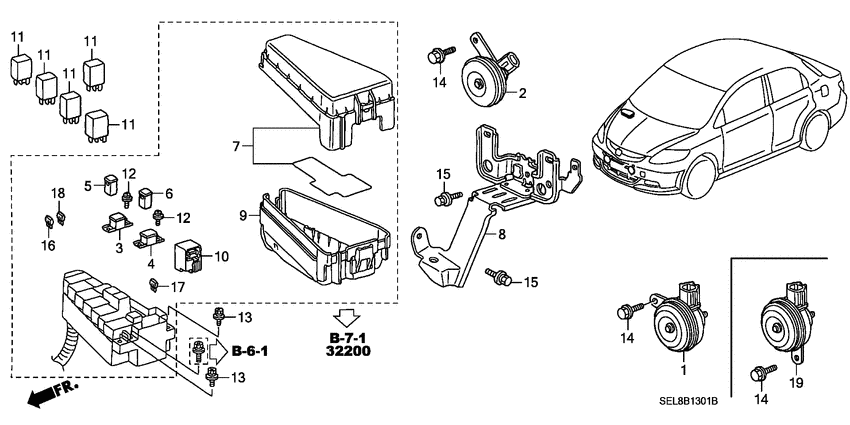

Control unit (ENGINE ROOM; RH) Diagram Honda CITY
- Year
- 2007
- Model code
- CITY
- Sales region
- General
- Engine
- L12A
- transmission
- 5MT
- Number of doors
- 4
- grade
- S
- area code
- PA
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38100-SFJ-W02 Horn assyLOW(MITSUBA) |
38100-SFJ-W02 |
from US $31.62 |
||
|
3
|
3
38213-SM4-003 FuseBLOCK (50A) |
38213-SM4-003 |
from US $6.36 |
||
|
4
|
4
38216-SM4-003 FuseBLOCK (80A) |
38216-SM4-003 |
from US $6.58 |
||
|
5
|
5
38231-S04-003 FuseBLOCK (30A) |
38231-S04-003 |
US $2.31 |
||
|
6
|
6
38231-S04-961 FuseBLOCK (40A) |
38231-S04-961 |
US $2.31 |
||
|
7
|
7
38251-SEL-T01 Cover comp.UPPER |
38251-SEL-T01 |
US $10.22 |
||
|
8
|
8
38251-SEL-000 BracketRELAY BOX |
38251-SEL-000 |
US $12.88 |
||
|
9
|
9
38252-SAA-003 CoverLOWER |
38252-SAA-003 |
US $11.20 |
||
|
10
|
10
38255-S5A-003 Detector unitELECTRONIC LOAD |
38255-S5A-003 |
US $84.48 |
||
|
11
|
11
39794-S04-014 Relay assyPOWER (4P) (MICRO ISO) (MATSUSHITA) |
39794-S04-014 |
US $23.49 |
||
|
12
|
12
90130-SCC-300 Bolt-washer5X13 |
90130-SCC-300 |
US $1.33 |
||
|
13
|
13
90130-SR3-003 Bolt5X13 |
90130-SR3-003 |
US $1.26 |
||
|
14
|
14
90150-S84-003 BoltEARTH, 8X16 |
90150-S84-003 |
US $1.88 |
||
|
15
|
15
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
16
|
16
98200-41000 FuseMINI(10A) |
98200-41000 |
from US $0.52 |
||
|
18
|
18
98200-42000 FuseMINI (20A) |
98200-42000 |
from US $0.52 |
