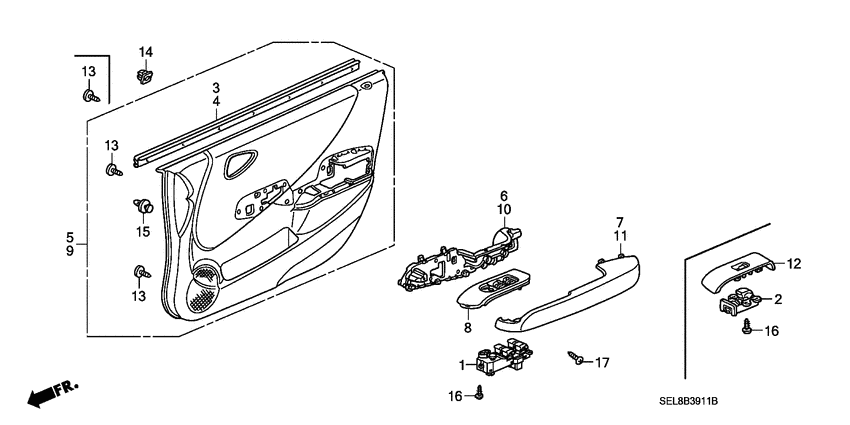

Front door lining (RH) Diagram Honda CITY
- Year
- 2007
- Model code
- CITY
- Sales region
- General
- Engine
- L12A
- transmission
- CVT
- Number of doors
- 4
- grade
- S
- area code
- PA
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35750-SEL-T03
Switch assy
|
35750-SEL-T03 |
— | ||
|
2
|
2
35760-S6A-003ZC
Switch assy
|
35760-S6A-003ZC |
— | ||
|
3
|
3
72335-SEL-T01
Weatherstrip
|
72335-SEL-T01 |
— | ||
|
4
|
4
72375-SEL-T01
Weatherstrip
|
72375-SEL-T01 |
— | ||
|
5
|
5
83533-SEL-T02ZB Lining comp.R. FR. DOOR *YR239L* |
83533-SEL-T02ZB |
US $248.32 |
||
|
5
|
5
83533-SEM-K70ZA
Lining comp.
|
83533-SEM-K70ZA |
— | ||
|
6
|
6
83541-SEL-T01ZA BaseR. FR. DOOR GRIP (P.W.) *YR239L* |
83541-SEL-T01ZA |
US $15.49 |
||
|
7
|
7
83542-SEL-T01ZB CoverR. FR. DOOR GRIP (P.W.) *YR239L* |
83542-SEL-T01ZB |
US $19.58 |
||
|
8
|
8
83543-SEL-T01ZC PanelR. FR. POWER WINDOW SWITCH (MASTER) *NH600L* |
83543-SEL-T01ZC |
US $8.82 |
||
|
9
|
9
83583-SEL-T02ZB Lining comp.L. FR. DOOR *YR239L* |
83583-SEL-T02ZB |
US $272.64 |
||
|
9
|
9
83583-SEM-K70ZA
Lining comp.
|
83583-SEM-K70ZA |
— | ||
|
10
|
10
83591-SEL-T01ZA BaseL. FR. DOOR GRIP (P.W.) *YR239L* |
83591-SEL-T01ZA |
US $15.49 |
||
|
11
|
11
83592-SEL-T01ZB CoverL. FR. DOOR GRIP (P.W.) *YR239L* |
83592-SEL-T01ZB |
US $19.58 |
||
|
12
|
12
83593-SEL-T01ZC PanelL. FR. POWER WINDOW SWITCH (SUB) *NH600L* |
83593-SEL-T01ZC |
US $8.82 |
||
|
13
|
13
90132-SS0-000 ScrewTAPPING, 4X10 (PO) |
90132-SS0-000 |
from US $1.12 |
||
|
14
|
14
90662-SB2-003 GrommetSCREW, 5MM |
90662-SB2-003 |
US $1.85 |
||
|
15
|
15
91560-S9A-A01 ClipDOOR LINING (LIGHT BLUE) |
91560-S9A-A01 |
US $1.19 |
||
|
16
|
16
93901-22220 ScrewTAPPING, 3X10 |
93901-22220 |
from US $0.37 |
||
|
17
|
17
93903-45320 SCREW TAPPING |
93903-45320 |
US $0.37 |
