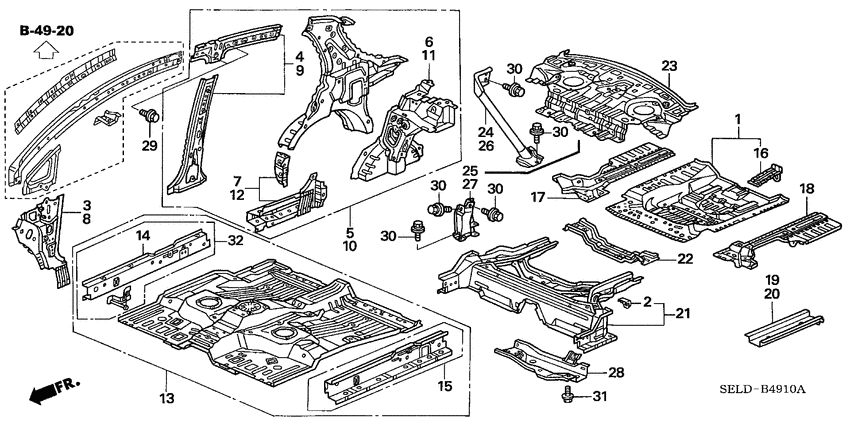

Floor/inner panels Diagram Honda CITY
- Year
- 2004
- Model code
- CITY
- Sales region
- General
- Engine
- L12A
- transmission
- 5MT
- Number of doors
- 4
- grade
- STD
- area code
- PA
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
04655-SEM-K00ZZ
Panel set
|
04655-SEM-K00ZZ |
— | ||
|
2
|
2
60823-S5A-300ZZ BracketBRAKE HOSE |
60823-S5A-300ZZ |
US $4.34 |
||
|
3
|
3
64130-SEL-T01ZZ Pillar comp.R. FR. INNER LOWER |
64130-SEL-T01ZZ |
US $64 |
||
|
4
|
4
64220-SEL-T00ZZ Pillar comp.R. CENTER INNER |
64220-SEL-T00ZZ |
US $92.80 |
||
|
5
|
5
64300-SEL-P01ZZ
Panel comp
|
64300-SEL-P01ZZ |
— | ||
|
6
|
6
64330-SEL-T01ZZ
Wheelhouse comp.
|
64330-SEL-T01ZZ |
— | ||
|
7
|
7
64340-SEL-P00ZZ
Stiffener comp
|
64340-SEL-P00ZZ |
— | ||
|
8
|
8
64530-SEL-T00ZZ Pillar comp.L. FR. INNER LOWER |
64530-SEL-T00ZZ |
US $55.42 |
||
|
9
|
9
64620-SEL-T00ZZ Pillar comp.L. CENTER INNER |
64620-SEL-T00ZZ |
US $92.80 |
||
|
10
|
10
64700-SEL-P01ZZ
Panel comp
|
64700-SEL-P01ZZ |
— | ||
|
11
|
11
64730-SEL-T01ZZ
Wheelhouse comp.
|
64730-SEL-T01ZZ |
— | ||
|
12
|
12
64740-SEL-P00ZZ
Stiffener comp
|
64740-SEL-P00ZZ |
— | ||
|
13
|
13
65100-SEL-T91ZZ
Floor comp
|
65100-SEL-T91ZZ |
— | ||
|
14
|
14
65141-SEL-T00ZZ
Sill
|
65141-SEL-T00ZZ |
— | ||
|
15
|
15
65191-SEL-T01ZZ
Sill
|
65191-SEL-T01ZZ |
— | ||
|
16
|
16
65513-SEM-G00ZZ
Stiffener
|
65513-SEM-G00ZZ |
— | ||
|
16
|
16
65513-SEL-T00ZZ
Stiffener
|
65513-SEL-T00ZZ |
— | ||
|
17
|
17
65540-SEL-T00ZZ
Panel comp
|
65540-SEL-T00ZZ |
— | ||
|
18
|
18
65590-SEL-T00ZZ
Panel comp
|
65590-SEL-T00ZZ |
— | ||
|
19
|
19
65612-SEL-T00ZZ Frame bR. RR. |
65612-SEL-T00ZZ |
US $42.37 |
||
|
20
|
20
65662-SEL-T00ZZ Frame bL. RR. |
65662-SEL-T00ZZ |
US $42.37 |
||
|
21
|
21
65700-SEL-P90ZZ
Crossmember comp.
|
65700-SEL-P90ZZ |
— | ||
|
22
|
22
65751-SEL-T00ZZ
Crossmember
|
65751-SEL-T00ZZ |
— | ||
|
23
|
23
66500-SEL-T01ZZ
Shelf comp.
|
66500-SEL-T01ZZ |
— | ||
|
24
|
24
66521-SEL-T00ZZ
Gusset
|
66521-SEL-T00ZZ |
— | ||
|
26
|
26
66721-SEL-T00ZZ
Gusset
|
66721-SEL-T00ZZ |
— | ||
|
28
|
28
74610-SEL-T00 Crossmember comp.FR. FLOOR CENTER |
74610-SEL-T00 |
US $54.53 |
||
|
29
|
29
93405-060-160-9 Bolt-washer6X16 |
93405-060-160-9 |
US $0.59 |
||
|
30
|
30
93405-080-160-8 Bolt-washer8X16 |
93405-080-160-8 |
from US $0.74 |
||
|
31
|
31
93406-080-160-8 Bolt-washer8X16 |
93406-080-160-8 |
from US $0.67 |
