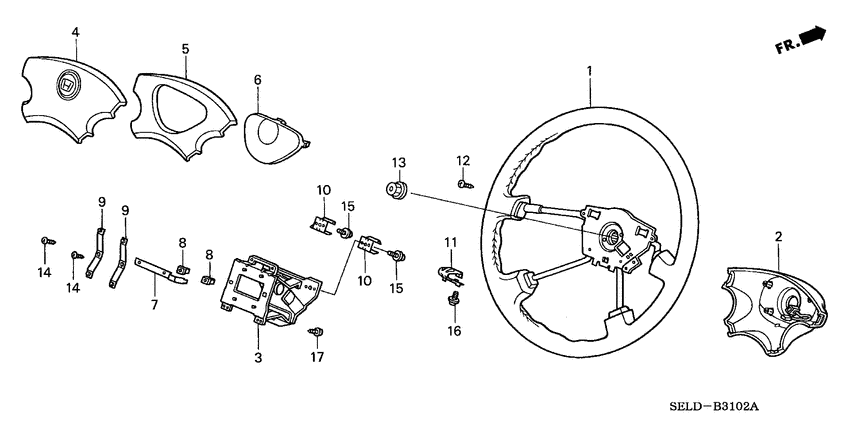

Steering wheel (3) Diagram Honda CITY
- Year
- 2004
- Model code
- CITY
- Sales region
- General
- Engine
- L12A
- transmission
- 5MT
- Number of doors
- 4
- grade
- STD
- area code
- PA
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
78501-SV4-003ZB BodySTEERING WHEEL *NH264L* |
78501-SV4-003ZB |
US $417.28 |
||
|
1
|
1
78501-SV4-003ZG BodySTEERING WHEEL *YR248L* |
78501-SV4-003ZG |
US $378.88 |
||
|
2
|
2
78518-SV4-003ZG CoverBODY *YR248L* |
78518-SV4-003ZG |
US $18.30 |
||
|
2
|
2
78518-SV4-003ZC CoverBODY *NH264L* |
78518-SV4-003ZC |
US $18.30 |
||
|
3
|
3
78520-SV4-003 Damper comp |
78520-SV4-003 |
US $36.35 |
||
|
4
|
4
78532-SV4-003ZC PadHORN *NH264L* |
78532-SV4-003ZC |
US $36.74 |
||
|
4
|
4
78532-SV4-003ZG PadHORN *YR248L* |
78532-SV4-003ZG |
US $36.74 |
||
|
5
|
5
78533-SV4-003
Foundation
|
78533-SV4-003 |
— | ||
|
6
|
6
78534-SV4-003 PlateHORN |
78534-SV4-003 |
US $7.98 |
||
|
7
|
7
78535-SV4-003 PlateCONDUCT |
78535-SV4-003 |
US $2.66 |
||
|
8
|
8
78536-SV4-003 Grommet |
78536-SV4-003 |
US $2.03 |
||
|
9
|
9
78537-SV4-003
Spring set
|
78537-SV4-003 |
— | ||
|
10
|
10
78538-SV4-003 ClampSPRING (A) |
78538-SV4-003 |
US $2.10 |
||
|
11
|
11
78539-SV4-003 ClampSPRING (B) |
78539-SV4-003 |
US $2.10 |
||
|
12
|
12
90125-SR4-003
Screw
|
90125-SR4-003 |
— | ||
|
13
|
13
90163-S04-000 NutSTEERING WHEEL |
90163-S04-000 |
US $2.93 |
||
|
14
|
14
90172-SV4-003 ScrewTAPPING, 3X8 |
90172-SV4-003 |
US $1.19 |
||
|
15
|
15
93893-040-101-8 Screw-washer4X10 |
93893-040-101-8 |
from US $0.52 |
||
| replacement | |||||
|
15
|
15
93893-040-100-8 Screw-washer4X10 |
93893-040-100-8 |
from US $0.52 |
||
|
16
|
16
93893-050-141-7 Screw-washer5X14 |
93893-050-141-7 |
US $0.52 |
||
|
17
|
17
93911-24220 ScrewTAPPING, 4X12 (PO) |
93911-24220 |
US $0.37 |
||
