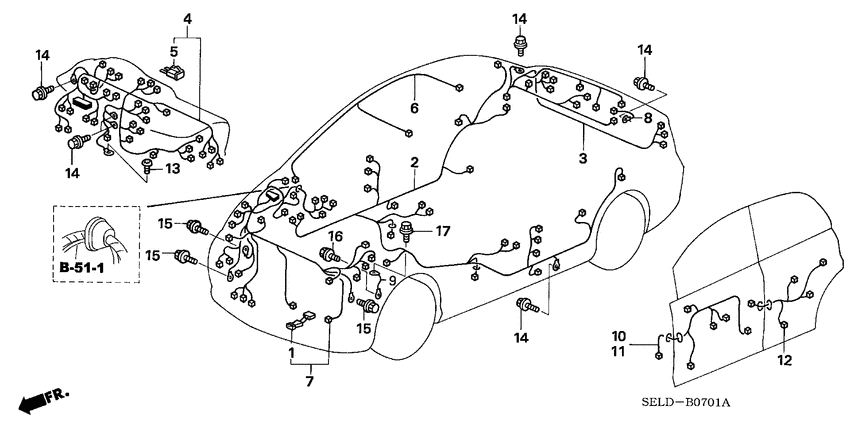

Wire harness (RH) Diagram Honda CITY
- Year
- 2004
- Model code
- CITY
- Sales region
- General
- Engine
- L12A
- transmission
- 5MT
- Number of doors
- 4
- grade
- STD
- area code
- PA
- right-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30510-SAA-J01 Condenser & resistor comp. |
30510-SAA-J01 |
US $13.32 |
||
|
2
|
2
32107-SEL-T01
Harness
|
32107-SEL-T01 |
— | ||
|
3
|
3
32108-SEL-010
Harness
|
32108-SEL-010 |
— | ||
|
4
|
4
32117-SEL-K01
Harness
|
32117-SEL-K01 |
— | ||
|
4
|
4
32117-SEL-M20
Harness
|
32117-SEL-M20 |
— | ||
|
4
|
4
32117-SEL-M30
Harness
|
32117-SEL-M30 |
— | ||
|
4
|
4
32117-SEL-M32
Harness
|
32117-SEL-M32 |
— | ||
|
6
|
6
32155-SEL-T00
Cord
|
32155-SEL-T00 |
— | ||
|
7
|
7
32200-SEL-T00
Harness
|
32200-SEL-T00 |
— | ||
|
8
|
8
32202-SEL-000 CordDEFROSTER EARTH |
32202-SEL-000 |
US $6.58 |
||
|
9
|
9
32601-SEL-920 Cable assyMISSION EARTH |
32601-SEL-920 |
US $8.54 |
||
|
10
|
10
32751-SEL-910
Harness
|
32751-SEL-910 |
— | ||
|
11
|
11
32752-SEL-911
Harness
|
32752-SEL-911 |
— | ||
|
12
|
12
32753-SEL-000
Harness
|
32753-SEL-000 |
— | ||
|
14
|
14
90148-SE0-003 BoltEARTH, 6X16 (WASHER 12.5MM) (ZN) |
90148-SE0-003 |
from US $2.37 |
||
|
15
|
15
90149-SE0-003 BoltEARTH, 6X16 |
90149-SE0-003 |
from US $2.52 |
||
|
16
|
16
90153-SE0-003 BoltEARTH, 6X12 |
90153-SE0-003 |
from US $1.12 |
||
|
17
|
17
92101-06008-0H
Bolt
|
92101-06008-0H |
— |
