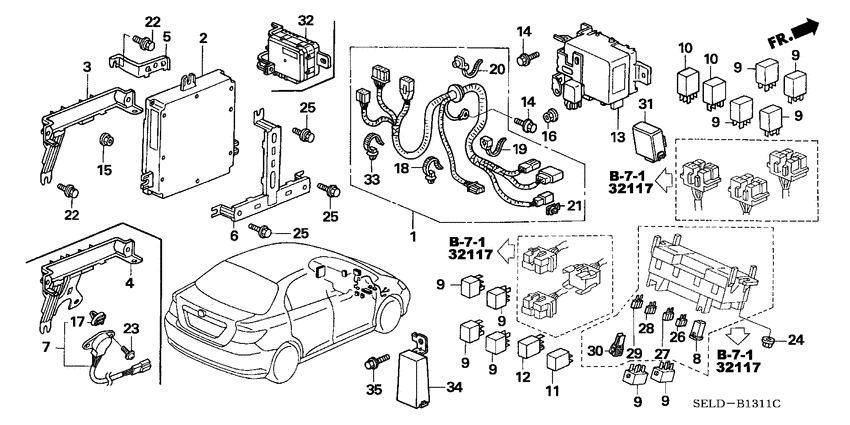

Control unit (CABIN; RH) Diagram Honda CITY
- Year
- 2004
- Model code
- CITY
- Sales region
- General
- Engine
- L12A
- transmission
- CVT
- Number of doors
- 4
- grade
- DX
- area code
- PA
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32125-SEL-E00
Sub cord
|
32125-SEL-E00 |
— | ||
|
2
|
2
37820-REE-M02
Control module
|
37820-REE-M02 |
— | ||
|
2
|
2
37820-RED-N71
Control module
|
37820-RED-N71 |
— | ||
| replacement | |||||
|
2
|
2
37820-RED-N81
Control module
|
37820-RED-N81 |
— | ||
|
4
|
4
37821-REH-Y00
Bracket comp. a
|
37821-REH-Y00 |
— | ||
|
5
|
5
37822-PWA-000 Bracket comp. bENGINE CONTROL MODULE |
37822-PWA-000 |
US $6.44 |
||
|
6
|
6
37823-PWA-000 Bracket comp. cENGINE CONTROL MODULE |
37823-PWA-000 |
US $9.38 |
||
|
7
|
7
37860-PDA-Y01 Sensor assyIMA |
37860-PDA-Y01 |
US $99.84 |
||
|
8
|
8
38231-S04-003 FuseBLOCK (30A) |
38231-S04-003 |
US $2.31 |
||
|
9
|
9
39794-SDA-A04 Relay assyPOWER(MICRO ISO) (MATSUSHITA) |
39794-SDA-A04 |
US $21.12 |
||
|
10
|
10
39794-S10-003 Relay assyPOWER(5P) (MICRO ISO)(MITSUBA) |
39794-S10-003 |
US $19.45 |
||
|
11
|
11
39794-S5A-004 Relay assyFUEL PUMP(5P) (DENSO) |
39794-S5A-004 |
US $21.12 |
||
|
12
|
12
39794-S5A-902 Relay assyENGINE CONTROL MODULE(4P)(DENSO) |
39794-S5A-902 |
US $21.12 |
||
|
13
|
13
39980-SEL-T12 Eps unit |
39980-SEL-T12 |
US $421.12 |
||
|
14
|
14
90148-SE0-003 BoltEARTH, 6X16 (WASHER 12.5MM) (ZN) |
90148-SE0-003 |
from US $2.37 |
||
|
15
|
15
90301-SP0-003 NutPAINT CUTTING, 6MM |
90301-SP0-003 |
US $2.59 |
||
|
16
|
16
90361-SV4-003 NutPAINT CUTTING, 6MM |
90361-SV4-003 |
US $1.47 |
||
|
17
|
17
91533-S04-003 ClipCOUPLER (NATURAL) |
91533-S04-003 |
from US $1.47 |
||
|
18
|
18
91540-S0A-003 ClipHARNESS BAND(NATURAL) (96.9MM) |
91540-S0A-003 |
from US $2.29 |
||
|
19
|
19
91547-SH3-003 ClipBAND(NATURAL)(160MM) |
91547-SH3-003 |
US $2.52 |
||
|
20
|
20
91559-S47-003 ClipHARNESS BAND(NATURAL) (167MM) |
91559-S47-003 |
US $2.03 |
||
|
21
|
21
91565-SEL-003 ClipCOUPLER(BLACK) |
91565-SEL-003 |
from US $1.70 |
||
|
22
|
22
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
23
|
23
93893-040-101-8 Screw-washer4X10 |
93893-040-101-8 |
from US $0.52 |
||
| replacement | |||||
|
23
|
23
93893-040-100-8 Screw-washer4X10 |
93893-040-100-8 |
from US $0.52 |
||
|
24
|
24
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
25
|
25
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
26
|
26
98200-40750 FuseMINI (7.5A) |
98200-40750 |
from US $0.52 |
||
|
27
|
27
98200-41000 FuseMINI(10A) |
98200-41000 |
from US $0.52 |
||
|
28
|
28
98200-41500 FuseMINI(15A) |
98200-41500 |
from US $0.52 |
||
|
29
|
29
98200-42000 FuseMINI (20A) |
98200-42000 |
from US $0.52 |
||
