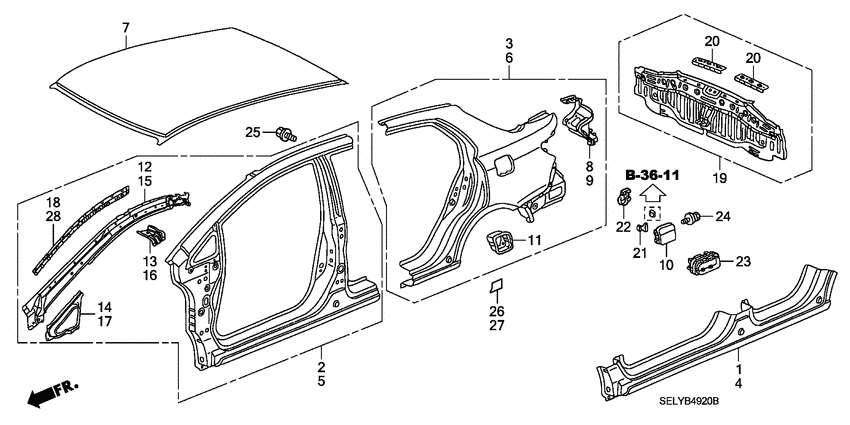

Outer panels/rear panel Diagram Honda CITY
- Year
- 2008
- Model code
- CITY
- Sales region
- General
- Engine
- L13A
- transmission
- 5MT
- Number of doors
- 4
- grade
- 1.4 S CE
- abs
- +
- area code
- TR
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
04631-SEL-T00ZZ PanelR. SIDE SILL |
04631-SEL-T00ZZ |
US $174.08 |
||
|
2
|
2
04635-SEM-G00ZZ
Panel set
|
04635-SEM-G00ZZ |
— | ||
|
3
|
3
04636-SEM-G00ZZ
Panel set
|
04636-SEM-G00ZZ |
— | ||
|
4
|
4
04641-SEL-T00ZZ PanelL. SIDE SILL |
04641-SEL-T00ZZ |
US $174.08 |
||
|
5
|
5
04645-SEM-G00ZZ
Panel set
|
04645-SEM-G00ZZ |
— | ||
|
6
|
6
04646-SEM-G00ZZ
Panel set
|
04646-SEM-G00ZZ |
— | ||
|
7
|
7
62100-SEL-T40ZZ
Panel comp
|
62100-SEL-T40ZZ |
— | ||
|
8
|
8
63320-SEM-G00ZZ
Gutter comp.
|
63320-SEM-G00ZZ |
— | ||
|
9
|
9
63720-SEM-G00ZZ
Gutter comp.
|
63720-SEM-G00ZZ |
— | ||
|
10
|
10
63910-SEL-T01ZZ Lid compFUEL FILLER |
63910-SEL-T01ZZ |
US $30.34 |
||
|
11
|
11
63915-SEL-T00ZZ AdapterFUEL CAP |
63915-SEL-T00ZZ |
US $27.14 |
||
|
12
|
12
64121-SEL-T00ZZ PillarR. FR. INNER UPPER |
64121-SEL-T00ZZ |
US $89.60 |
||
|
13
|
13
64122-SEL-T00ZZ ExtensionR. FR. PILLAR INNER UPPER |
64122-SEL-T00ZZ |
US $11.48 |
||
|
14
|
14
64123-SEL-T00ZZ PillarR. FR. INNER MIDDLE |
64123-SEL-T00ZZ |
US $22.91 |
||
|
15
|
15
64521-SEL-T00ZZ PillarL. FR. INNER UPPER |
64521-SEL-T00ZZ |
US $103.68 |
||
|
16
|
16
64522-SEL-T00ZZ ExtensionL. FR. PILLAR INNER UPPER |
64522-SEL-T00ZZ |
US $11.48 |
||
|
17
|
17
64523-SEL-T00ZZ PillarL. FR. INNER MIDDLE |
64523-SEL-T00ZZ |
US $22.91 |
||
|
18
|
18
64524-SEL-P00ZZ
Patch
|
64524-SEL-P00ZZ |
— | ||
|
19
|
19
66100-SEM-G00ZZ
Panel comp
|
66100-SEM-G00ZZ |
— | ||
|
20
|
20
66118-S5A-300ZZ
Stiffener
|
66118-S5A-300ZZ |
— | ||
|
21
|
21
70494-SE0-000
Spring
|
70494-SE0-000 |
— | ||
|
22
|
22
74423-S1A-E01 HolderFUEL CAP |
74423-S1A-E01 |
US $3.78 |
||
|
23
|
23
75450-S10-000 Outlet assyRR. AIR |
75450-S10-000 |
from US $18.82 |
||
|
24
|
24
90147-634-003 BoltFENDER, 6X18 |
90147-634-003 |
from US $3.55 |
||
|
25
|
25
93405-060-160-9 Bolt-washer6X16 |
93405-060-160-9 |
US $0.59 |
||
|
26
|
26
74401-SEM-G00
Tape
|
74401-SEM-G00 |
— | ||
|
27
|
27
74405-SEM-G00
Tape
|
74405-SEM-G00 |
— |
