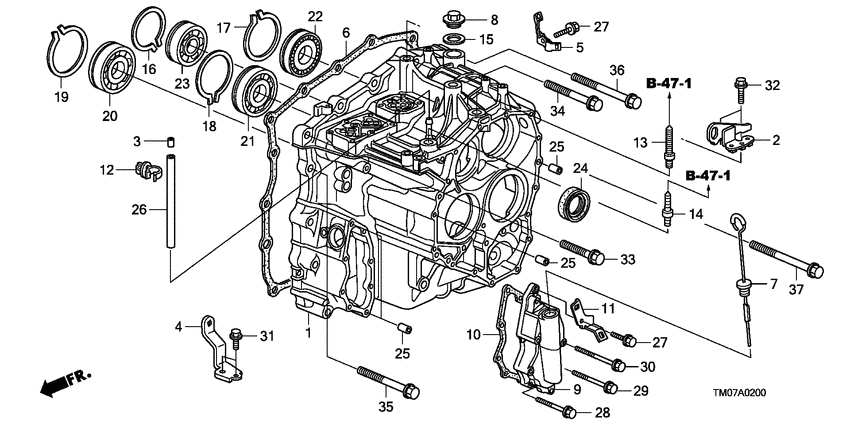

Transmission case Diagram Honda CITY
- Year
- 2009
- Model code
- CITY
- Sales region
- General
- Engine
- L15A
- transmission
- 5AT
- Number of doors
- 4
- grade
- EX
- area code
- KY
- electric power steering
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21210-RG0-000 Case comp.TRANSMISSION |
21210-RG0-000 |
US $289.28 |
||
|
2
|
2
21231-RG5-010 Hanger comp.TRANSMISSION |
21231-RG5-010 |
US $9.24 |
||
|
3
|
3
21321-689-000 PlugBREATHER TUBE |
21321-689-000 |
US $1.89 |
||
|
4
|
4
21391-RG5-000
Stay
|
21391-RG5-000 |
— | ||
|
5
|
5
21514-RMM-000
Stay b
|
21514-RMM-000 |
— | ||
|
6
|
6
21811-RMM-000 PackingTORQUE CONVERTER CASE |
21811-RMM-000 |
US $24.48 |
||
|
7
|
7
25610-RG5-003 Gauge comp.ATF |
25610-RG5-003 |
US $8.40 |
||
|
8
|
8
25614-PK4-000 BoltFILLER (ATF) |
25614-PK4-000 |
US $8.63 |
||
|
9
|
9
28450-RG5-000 CoverSOLENOID |
28450-RG5-000 |
US $31.27 |
||
|
10
|
10
28451-RMM-000 PackingSOLENOID COVER |
28451-RMM-000 |
US $4 |
||
|
11
|
11
32746-RME-A70
Stay f
|
32746-RME-A70 |
— | ||
|
12
|
12
41936-PDZ-003 ClampBREATHER TUBE |
41936-PDZ-003 |
US $1.61 |
||
|
13
|
13
90380-S5A-000 BoltSTUD, 12X99.8 |
90380-S5A-000 |
US $3.36 |
||
|
14
|
14
90383-TF0-000 BoltSTUD, 12X50 |
90383-TF0-000 |
US $3.08 |
||
|
15
|
15
90441-PK4-000 WasherSEALING, 24MM |
90441-PK4-000 |
US $48.30 |
||
|
16
|
16
90603-PB6-000 RingSNAP, 62MM |
90603-PB6-000 |
from US $3.78 |
||
|
17
|
17
90609-PC8-000 RingSNAP, 68MM |
90609-PC8-000 |
US $4.43 |
||
|
18
|
18
90612-RPC-000 RingSNAP, 78MM |
90612-RPC-000 |
US $2.87 |
||
|
19
|
19
90615-PF4-000 RingSNAP, 75MM |
90615-PF4-000 |
US $2.73 |
||
|
20
|
20
91001-RPC-006 BearingBALL, 27X75X18.5 |
91001-RPC-006 |
US $27.20 |
||
|
21
|
21
91002-RPC-005 BearingBALL, 29X78X19/16 |
91002-RPC-005 |
US $31.28 |
||
|
22
|
22
91004-RPC-016 BearingBALL, 29X68X13 |
91004-RPC-016 |
US $21.76 |
||
|
23
|
23
91005-RPC-016 BearingBALL, 20X62X16.5 |
91005-RPC-016 |
US $20.40 |
||
|
24
|
24
91205-PL3-A01 Oil seal35X56X8 (ARAI) |
91205-PL3-A01 |
from US $8.95 |
||
|
25
|
25
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
26
|
26
95005-451-902-0 Tube4.5X190 (95005-45001-20M) |
95005-451-902-0 |
US $1.55 |
||
|
27
|
27
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
28
|
28
95701-060-300-8 BoltFLANGE, 6X30 |
95701-060-300-8 |
from US $0.74 |
||
|
29
|
29
95701-060-450-8 BoltFLANGE, 6X45 |
95701-060-450-8 |
from US $0.74 |
||
|
30
|
30
95701-060-550-8 BoltFLANGE, 6X55 |
95701-060-550-8 |
from US $0.81 |
||
|
31
|
31
95701-080-160-8 BoltFLANGE, 8X16 |
95701-080-160-8 |
from US $0.59 |
||
|
32
|
32
95701-080-200-8 BoltFLANGE, 8X20 |
95701-080-200-8 |
from US $0.58 |
||
|
33
|
33
95701-100-400-8 BoltFLANGE, 10X40 |
95701-100-400-8 |
from US $0.81 |
||
|
34
|
34
95701-100-600-8 BoltFLANGE, 10X60 |
95701-100-600-8 |
from US $1.04 |
||
|
35
|
35
95701-100-700-8 BoltFLANGE, 10X70 |
95701-100-700-8 |
from US $1.18 |
||
|
36
|
36
95701-100-800-8 BoltFLANGE, 10X80 |
95701-100-800-8 |
from US $1.18 |
||
|
37
|
37
95701-100-900-8 BoltFLANGE, 10X90 |
95701-100-900-8 |
from US $1.48 |
