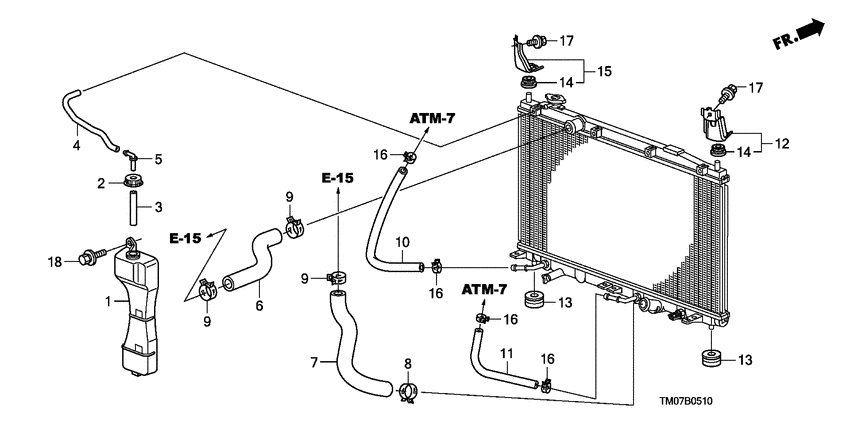

Radiator hose/reserve tan k Diagram Honda CITY
- Year
- 2010
- Model code
- CITY
- Sales region
- General
- Engine
- L15A
- transmission
- 5AT
- Number of doors
- 4
- grade
- EX-A
- area code
- KY
- electric power steering
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19101-RB0-000
Tank comp.
|
19101-RB0-000 |
— | ||
|
2
|
2
19102-RNA-A00 CapRESERVE TANK |
19102-RNA-A00 |
from US $5.47 |
||
|
3
|
3
19103-PLC-000 Hose aRESERVE TANK |
19103-PLC-000 |
US $3.57 |
||
|
4
|
4
19104-RB0-000 Hose bRESERVE TANK |
19104-RB0-000 |
US $4.90 |
||
|
5
|
5
19106-RSA-G00 JointRESERVE TANK |
19106-RSA-G00 |
from US $1.39 |
||
|
6
|
6
19501-RD7-Z00 HoseWATER UPPER |
19501-RD7-Z00 |
US $23.45 |
||
|
7
|
7
19502-RD7-Z00 HoseWATER LOWER |
19502-RD7-Z00 |
US $22.75 |
||
|
8
|
8
19511-P08-004
Clip
|
19511-P08-004 |
— | ||
| replacement | |||||
|
8
|
8
19511-PA6-003 ClipWATER HOSE(CHUO SPRING) |
19511-PA6-003 |
from US $3.70 |
||
|
9
|
9
19511-P3S-T01 ClipWATER HOSE (TOPY FASTENERS) |
19511-P3S-T01 |
US $3.83 |
||
|
10
|
10
25213-P5P-003 HoseATF, 390MM |
25213-P5P-003 |
US $23.04 |
||
|
11
|
11
25214-RBA-013 HoseATF, 320MM |
25214-RBA-013 |
US $15.62 |
||
|
12
|
12
74171-TM0-T00
Bracket
|
74171-TM0-T00 |
— | ||
|
13
|
13
74172-SS0-000 CushionRADIATOR MOUNTING LOWER |
74172-SS0-000 |
from US $6.30 |
||
|
14
|
14
74173-SJ4-000 CushionRADIATOR MOUNTING UPPER |
74173-SJ4-000 |
from US $3.26 |
||
|
15
|
15
74176-TM0-T00
Bracket
|
74176-TM0-T00 |
— | ||
|
16
|
16
90635-PT0-802
Clip, Oil Pipe
|
90635-PT0-802 |
— | ||
| replacement | |||||
|
16
|
16
90635-RV0-003 CLIP, OIL PIPE |
90635-RV0-003 |
from US $3.32 |
||
|
17
|
17
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
||
|
18
|
18
93405-060-200-8 Bolt-washer6X20 |
93405-060-200-8 |
from US $0.59 |
||
