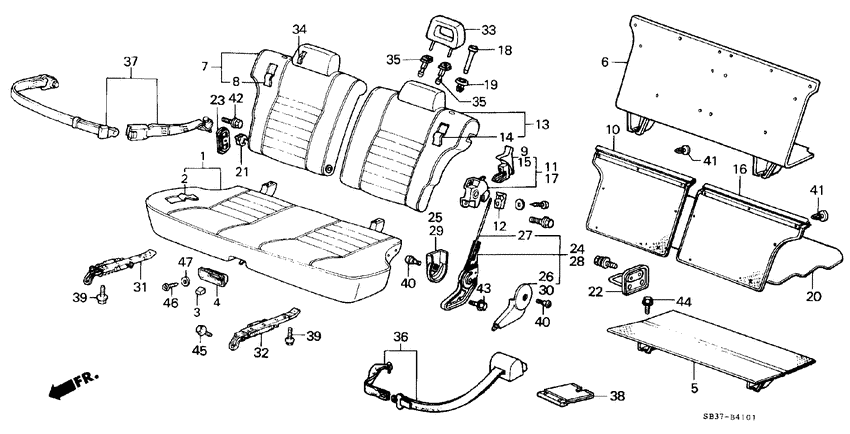

Rear seat/seatbelt (2D; 2) Diagram Honda CIVIC
- Year
- 1985
- Model code
- CIVIC
- Sales region
- General
- Engine
- EV2
- transmission
- 5MT
- Number of doors
- 3
- grade
- DX
- area code
- KG
- intermittent wiper
- +
- 5mt
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
78110-SB3-701ZG
Cushion assy
0S100001 - 0S200000 |
78110-SB3-701ZG |
— | ||
|
1
|
1
78110-SB3-701ZF Cushion assyRR. SEAT *NH67L* 0S100001 - 0S200000 |
78110-SB3-701ZF |
US $1,611.52 |
||
|
1
|
1
78110-SB3-701ZE
Cushion assy
0S100001 - 0S200000 |
78110-SB3-701ZE |
— | ||
|
2
|
2
78111-SB3-701ZE CoverRR. SEAT CUSHION TRIM *B32L* 0S100001 - 0S200000 |
78111-SB3-701ZE |
US $962.56 |
||
|
2
|
2
78111-SB3-701ZG CoverRR. SEAT CUSHION TRIM *YR82L* 0S100001 - 0S200000 |
78111-SB3-701ZG |
US $962.56 |
||
|
2
|
2
78111-SB3-701ZF CoverRR. SEAT CUSHION TRIM *NH67L* 0S100001 - 0S200000 |
78111-SB3-701ZF |
US $962.56 |
||
|
3
|
3
78121-SB3-971
Knob
0S100001 - |
78121-SB3-971 |
— | ||
|
4
|
4
78122-SB3-971ZA CoverLOCK *B32L* 0S100001 - 0S200000 |
78122-SB3-971ZA |
US $9.66 |
||
|
4
|
4
78122-SB3-971ZE CoverLOCK *YR82L* 0S100001 - 0S200000 |
78122-SB3-971ZE |
US $9.66 |
||
|
4
|
4
78122-SB3-971ZC
Cover
0S100001 - 0S200000 |
78122-SB3-971ZC |
— | ||
|
6
|
6
78130-SB3-971ZF Bridge compRR. SEAT *NH67L* 0S100001 - 0S200000 |
78130-SB3-971ZF |
US $163.84 |
||
|
6
|
6
78130-SB3-971ZH Bridge compRR. SEAT *YR82L* 0S100001 - 0S200000 |
78130-SB3-971ZH |
US $163.84 |
||
|
6
|
6
78130-SB3-971ZG Bridge compRR. SEAT *B32L* 0S100001 - 0S200000 |
78130-SB3-971ZG |
US $163.84 |
||
|
7
|
7
78150-SB3-701ZF Seatback assy.R. RR. *NH67L* 0S100001 - 0S200000 |
78150-SB3-701ZF |
US $880.64 |
||
|
7
|
7
78150-SB3-701ZE
Seatback assy.
0S100001 - 0S200000 |
78150-SB3-701ZE |
— | ||
|
7
|
7
78150-SB3-701ZG
Seatback assy.
0S100001 - 0S200000 |
78150-SB3-701ZG |
— | ||
|
8
|
8
78151-SB3-701ZF CoverR. RR. SEATBACK TRIM *NH67L* 0S100001 - 0S200000 |
78151-SB3-701ZF |
US $486.40 |
||
|
8
|
8
78151-SB3-701ZE CoverR. RR. SEATBACK TRIM *B32L* 0S100001 - 0S200000 |
78151-SB3-701ZE |
US $486.40 |
||
|
8
|
8
78151-SB3-701ZG CoverR. RR. SEATBACK TRIM *YR82L* 0S100001 - 0S200000 |
78151-SB3-701ZG |
US $486.40 |
||
|
13
|
13
78160-SB3-701ZE Seatback assy.L. RR. *B32L* 0S100001 - 0S200000 |
78160-SB3-701ZE |
US $779.52 |
||
|
13
|
13
78160-SB3-701ZG Seatback assy.L. RR. *YR82L* 0S100001 - 0S200000 |
78160-SB3-701ZG |
US $779.52 |
||
|
13
|
13
78160-SB3-701ZF Seatback assy.L. RR. *NH67L* 0S100001 - 0S200000 |
78160-SB3-701ZF |
US $779.52 |
||
|
14
|
14
78161-SB3-701ZF CoverL. RR. SEATBACK TRIM *NH67L* 0S100001 - |
78161-SB3-701ZF |
US $486.40 |
||
|
14
|
14
78161-SB3-701ZE CoverL. RR. SEATBACK TRIM *B32L* 0S100001 - |
78161-SB3-701ZE |
US $486.40 |
||
|
14
|
14
78161-SB3-701ZG CoverL. RR. SEATBACK TRIM *YR82L* 0S100001 - |
78161-SB3-701ZG |
US $486.40 |
||
|
18
|
18
78165-SA5-003ZP KnobRR. SEAT LOCK *NH67L* 00000000 - 0S200000 |
78165-SA5-003ZP |
US $3.92 |
||
|
18
|
18
78165-SA5-003ZR KnobRR. SEAT LOCK *YR82L* 00000000 - 0S200000 |
78165-SA5-003ZR |
US $3.92 |
||
|
18
|
18
78165-SA5-003ZN KnobRR. SEAT LOCK *B32L* 00000000 - 0S200000 |
78165-SA5-003ZN |
US $2.80 |
||
|
19
|
19
78166-SB3-003ZE CollarRR. SEATBACK LOCK *YR82L* 00000000 - 0S200000 |
78166-SB3-003ZE |
US $2.59 |
||
|
19
|
19
78166-SB3-003ZC CollarRR. SEATBACK LOCK *NH67L* 00000000 - 0S200000 |
78166-SB3-003ZC |
US $2.59 |
||
|
19
|
19
78166-SB3-003ZA CollarRR. SEATBACK LOCK *B32L* 00000000 - 0S200000 |
78166-SB3-003ZA |
US $2.59 |
||
|
20
|
20
78180-SB3-970ZJ MatTRUNK FLOOR *B32L* 0S100001 - 0S200000 |
78180-SB3-970ZJ |
US $148.48 |
||
|
20
|
20
78180-SB3-870ZJ MatTRUNK FLOOR *NH67L* 0S100001 - 0S200000 |
78180-SB3-870ZJ |
US $139.52 |
||
|
20
|
20
78180-SB3-870ZK MatTRUNK FLOOR *YR82L* 0S100001 - 0S200000 |
78180-SB3-870ZK |
US $139.52 |
||
|
20
|
20
78180-SB3-970ZH MatTRUNK FLOOR *NH67L* 0S100001 - 0S200000 |
78180-SB3-970ZH |
US $148.48 |
||
|
20
|
20
78180-SB3-970ZK MatTRUNK FLOOR *YR82L* 0S100001 - 0S200000 |
78180-SB3-970ZK |
US $148.48 |
||
|
20
|
20
78180-SB3-870ZH MatTRUNK FLOOR *B32L* 0S100001 - 0S200000 |
78180-SB3-870ZH |
US $139.52 |
||
|
24
|
24
78251-SB3-971ZA AdjusterR. RECLINING *B32L* 00000000 - 0S200000 |
78251-SB3-971ZA |
US $174.08 |
||
|
24
|
24
78251-SB3-971ZE AdjusterR. RECLINING *YR82L* 00000000 - 0S200000 |
78251-SB3-971ZE |
US $174.08 |
||
|
24
|
24
78251-SB3-971ZC
Adjuster
00000000 - 0S200000 |
78251-SB3-971ZC |
— | ||
|
25
|
25
78252-SB3-971ZC
Cover
00000000 - 0S200000 |
78252-SB3-971ZC |
— | ||
|
25
|
25
78252-SB3-971ZA CoverR. LOWER *B32L* 00000000 - 0S200000 |
78252-SB3-971ZA |
US $10.22 |
||
|
25
|
25
78252-SB3-971ZE CoverR. LOWER *YR82L* 00000000 - 0S200000 |
78252-SB3-971ZE |
US $10.22 |
||
|
26
|
26
78253-SB3-971ZE CoverR. UPPER *YR82L* 00000000 - 0S200000 |
78253-SB3-971ZE |
US $9.66 |
||
|
26
|
26
78253-SB3-971ZC
Cover
00000000 - 0S200000 |
78253-SB3-971ZC |
— | ||
|
26
|
26
78253-SB3-971ZA CoverR. UPPER *B32L* 00000000 - 0S200000 |
78253-SB3-971ZA |
US $9.66 |
||
|
27
|
27
78254-SB3-971
Rod
|
78254-SB3-971 |
— | ||
|
28
|
28
78451-SB3-971ZC
Adjuster
00000000 - 0S200000 |
78451-SB3-971ZC |
— | ||
|
28
|
28
78451-SB3-971ZA AdjusterL. RECLINING *B32L* 00000000 - 0S200000 |
78451-SB3-971ZA |
US $174.08 |
||
|
28
|
28
78451-SB3-971ZE AdjusterL. RECLINING *YR82L* 00000000 - 0S200000 |
78451-SB3-971ZE |
US $174.08 |
||
|
29
|
29
78452-SB3-971ZE CoverL. LOWER *YR82L* 00000000 - 0S200000 |
78452-SB3-971ZE |
US $10.22 |
||
|
29
|
29
78452-SB3-971ZC
Cover
00000000 - 0S200000 |
78452-SB3-971ZC |
— | ||
|
29
|
29
78452-SB3-971ZA CoverL. LOWER *B32L* 00000000 - 0S200000 |
78452-SB3-971ZA |
US $10.22 |
||
|
30
|
30
78453-SB3-971ZC
Cover
00000000 - 0S200000 |
78453-SB3-971ZC |
— | ||
|
30
|
30
78453-SB3-971ZA CoverL. UPPER *B32L* 00000000 - 0S200000 |
78453-SB3-971ZA |
US $9.66 |
||
|
30
|
30
78453-SB3-971ZE CoverL. UPPER *YR82L* 00000000 - 0S200000 |
78453-SB3-971ZE |
US $9.66 |
||
|
31
|
31
78510-SB3-972
Adjuster
0S000916 - |
78510-SB3-972 |
— | ||
|
32
|
32
78520-SB3-972
Adjuster
0S000916 - |
78520-SB3-972 |
— | ||
|
34
|
34
78581-SB3-761ZG
Cover
0S100001 - 0S200000 |
78581-SB3-761ZG |
— | ||
|
34
|
34
78581-SB3-761ZF
Cover
0S100001 - 0S200000 |
78581-SB3-761ZF |
— | ||
|
34
|
34
78581-SB3-761ZH
Cover
0S100001 - 0S200000 |
78581-SB3-761ZH |
— | ||
|
36
|
36
78610-SB3-762ZE Seatbelt assy.RR. *YR82L* (TAKATA)(2P-MAN) 00000000 - 0S200000 |
78610-SB3-762ZE |
US $118.40 |
||
|
36
|
36
78610-SB3-761ZA Seatbelt assy.RR. *B32L* (NIPPON SEIKO)(2P-MAN) 00000000 - 0S200000 |
78610-SB3-761ZA |
US $118.40 |
||
|
36
|
36
78610-SB3-762ZC Seatbelt assy.RR. *NH67L* (TAKATA)(2P-MAN) 00000000 - 0S200000 |
78610-SB3-762ZC |
US $118.40 |
||
|
36
|
36
78610-SB3-762ZA Seatbelt assy.RR. *B32L* (TAKATA)(2P-MAN) 00000000 - 0S200000 |
78610-SB3-762ZA |
US $118.40 |
||
|
36
|
36
78610-SB3-761ZE Seatbelt assy.RR. *YR82L* (NIPPON SEIKO)(2P-MAN 00000000 - 0S200000 |
78610-SB3-761ZE |
US $118.40 |
||
|
36
|
36
78610-SB3-761ZC Seatbelt assy.RR. *NH67L* (NIPPON SEIKO)(2P-MAN 00000000 - 0S200000 |
78610-SB3-761ZC |
US $118.40 |
||
|
37
|
37
78650-SB3-745ZB Seatbelt assy.RR. CENTER *B32L* 0S100001 - 0S200000 |
78650-SB3-745ZB |
US $118.40 |
||
|
37
|
37
78650-SB3-744ZC Seatbelt assy.RR. CENTER *NH67L*(TAKATA) 0S100001 - 0S200000 |
78650-SB3-744ZC |
US $118.40 |
||
|
37
|
37
78650-SB3-745ZC Seatbelt assy.RR. CENTER *NH67L* 0S100001 - 0S200000 |
78650-SB3-745ZC |
US $118.40 |
||
|
37
|
37
78650-SB3-744ZD Seatbelt assy.RR. CENTER *YR82L*(TAKATA) 0S100001 - 0S200000 |
78650-SB3-744ZD |
US $118.40 |
||
|
37
|
37
78650-SB3-745ZD Seatbelt assy.RR. CENTER *YR82L* 0S100001 - 0S200000 |
78650-SB3-745ZD |
US $118.40 |
||
|
37
|
37
78650-SB3-744ZB Seatbelt assy.RR. CENTER *B32L*(TAKATA) 0S100001 - 0S200000 |
78650-SB3-744ZB |
US $118.40 |
||
|
39
|
39
90108-SA5-003 Bolt-washer8X19 |
90108-SA5-003 |
US $2.24 |
||
|
40
|
40
90251-SB3-971
Screw
|
90251-SB3-971 |
— | ||
|
41
|
41
90667-SA7-003ZK ClipMAT, 5MM *NH67L* 0S100001 - 0S200000 |
90667-SA7-003ZK |
US $1.82 |
||
|
43
|
43
93492-100-200-7 Bolt-washer10X20 0S100001 - 0S200000 |
93492-100-200-7 |
US $0.74 |
||
|
44
|
44
93493-060-200-8 Bolt-washer6X20 0S100001 - |
93493-060-200-8 |
from US $0.59 |
||
| replacement | |||||
|
44
|
44
93403-060-200-8 Bolt-washer6X20 0S100001 - |
93403-060-200-8 |
from US $0.62 |
||
|
45
|
45
93493-080-200-8 Bolt-washer8X20 0S100001 - |
93493-080-200-8 |
from US $0.74 |
||
| replacement | |||||
|
45
|
45
93403-080-200-8 Bolt-washer8X20 0S100001 - |
93403-080-200-8 |
from US $0.74 |
||
|
46
|
46
93901-24280 ScrewTAPPING, 4X10 0S100001 - |
93901-24280 |
from US $0.37 |
||
|
47
|
47
94101-04700 WasherPLAIN, 4MM 0S100001 - |
94101-04700 |
from US $0.37 |
||
