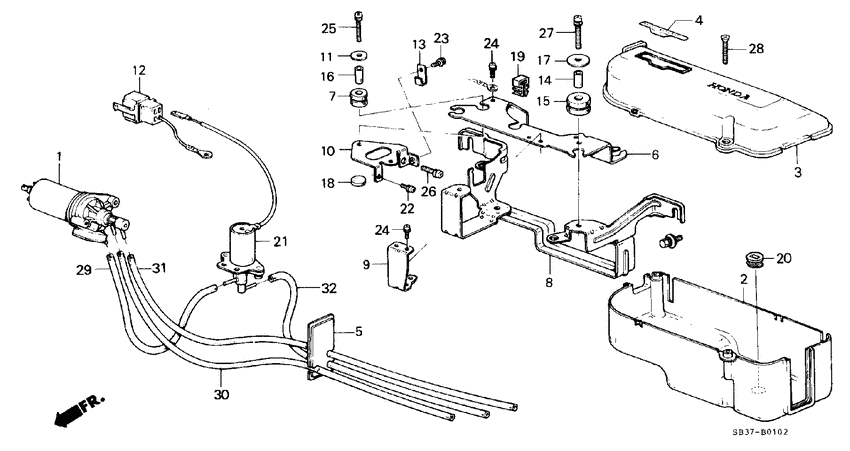

Control box Diagram Honda CIVIC
- Year
- 1987
- Model code
- CIVIC
- Sales region
- General
- Engine
- EV2
- transmission
- 5MT
- Number of doors
- 3
- grade
- DX
- area code
- KS
- heated seat
- +
- intermittent wiper
- +
- 5mt
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16300-PE3-741
Valve
|
16300-PE3-741 |
— | ||
|
2
|
2
36023-PE3-732
Cover
0S300001 - |
36023-PE3-732 |
— | ||
|
3
|
3
36020-PE3-732
Cover
0S200001 - |
36020-PE3-732 |
— | ||
|
5
|
5
36024-PE3-731
Holder
|
36024-PE3-731 |
— | ||
|
6
|
6
36027-PE3-731
Base
|
36027-PE3-731 |
— | ||
|
8
|
8
36030-PE3-732
Stay
|
36030-PE3-732 |
— | ||
|
9
|
9
36032-PE3-732
Stay
|
36032-PE3-732 |
— | ||
|
10
|
10
36033-PE3-732
Bracket
|
36033-PE3-732 |
— | ||
|
12
|
12
36041-PE3-732
Cord assy
0S200001 - |
36041-PE3-732 |
— | ||
|
13
|
13
36049-PC0-921
Clamp
|
36049-PC0-921 |
— | ||
|
14
|
14
36052-657-300 CollarCONTROL VALVE |
36052-657-300 |
US $6 |
||
|
15
|
15
36053-PE0-004 Rubber bMOUNTING |
36053-PE0-004 |
US $2.94 |
||
|
17
|
17
36055-PE0-004
Washer
|
36055-PE0-004 |
— | ||
|
18
|
18
36058-PE3-731
Rubber
|
36058-PE3-731 |
— | ||
|
21
|
21
36130-PE3-732
Valve assy.
|
36130-PE3-732 |
— |
