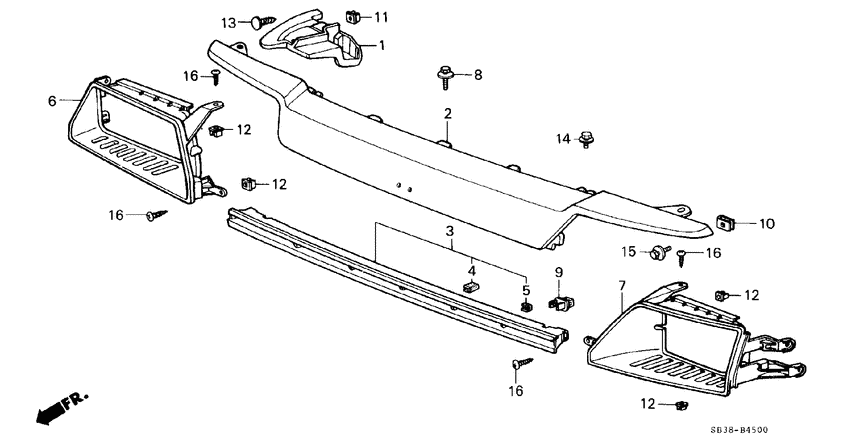

Front grille Diagram Honda CIVIC
- Year
- 1987
- Model code
- CIVIC
- Sales region
- General
- Engine
- EW2
- transmission
- 5MT
- Number of doors
- 3
- grade
- GL
- area code
- KE
- right-hand drive
- +
- rear fog light
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
60821-SB3-010
Shelter
0S200001 - |
60821-SB3-010 |
— | ||
|
2
|
2
61180-SB3-730ZZ
Mask comp.
0S200001 - |
61180-SB3-730ZZ |
— | ||
|
3
|
3
62301-SB3-731
Grille assy
0S200001 - |
62301-SB3-731 |
— | ||
|
4
|
4
62302-SB3-730
Bush a
0S200001 - |
62302-SB3-730 |
— | ||
|
8
|
8
90114-SB3-000
Bolt-washer
0S300001 - |
90114-SB3-000 |
— | ||
|
10
|
10
90676-SB3-003
Clip
|
90676-SB3-003 |
— | ||
|
11
|
11
90661-SB3-003
Grommet
|
90661-SB3-003 |
— | ||
|
12
|
12
90682-SB0-003 GrommetSCREW, 5MM 0S002316 - |
90682-SB0-003 |
US $1.55 |
||
|
15
|
15
93495-060-160-8 Bolt-washer6X16 |
93495-060-160-8 |
US $1.63 |
||
| replacement | |||||
|
15
|
15
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
