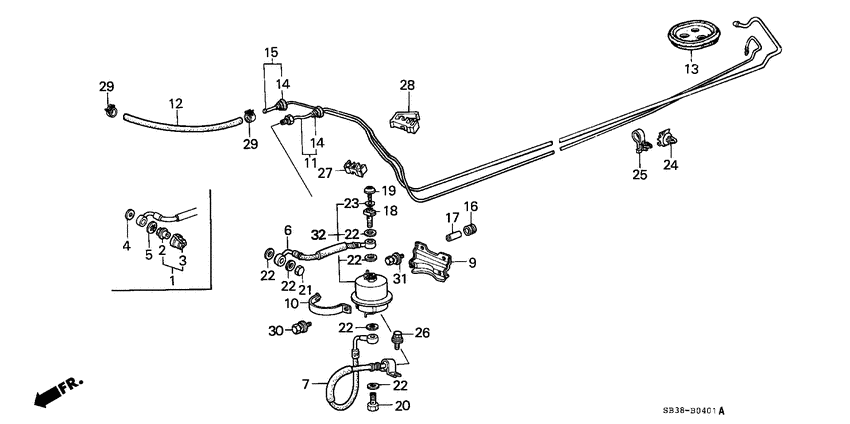

Fuel pipe (FI) Diagram Honda CIVIC
- Year
- 1985
- Model code
- CIVIC
- Sales region
- General
- Engine
- EW3
- transmission
- 5MT
- Number of doors
- 3
- grade
- 1.5I
- area code
- KE
- right-hand drive
- +
- rear fog light
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16680-PE7-661
Damper assy.
0S100001 - |
16680-PE7-661 |
— | ||
| replacement | |||||
|
1
|
1
16680-PCX-003 Damper assy.PULSATION 0S100001 - |
16680-PCX-003 |
US $49.37 |
||
|
2
|
2
16701-PE7-732
Silencer assy
0S100001 - |
16701-PE7-732 |
— | ||
|
3
|
3
16702-PE2-013
Cap
0S100001 - |
16702-PE2-013 |
— | ||
|
6
|
6
16722-PE7-771
Hose comp.
00000000 - 0S200000 |
16722-PE7-771 |
— | ||
|
7
|
7
16874-SB2-935
Hose
0S118158 - |
16874-SB2-935 |
— | ||
|
7
|
7
16874-SB2-934
Hose
00000000 - 0S118157 |
16874-SB2-934 |
— | ||
|
9
|
9
16918-SB2-932
Stay
|
16918-SB2-932 |
— | ||
|
10
|
10
16919-SB2-930
Band
|
16919-SB2-930 |
— | ||
|
11
|
11
17700-SB3-934
Pipe comp
0S102733 - |
17700-SB3-934 |
— | ||
|
11
|
11
17700-SB3-933 Pipe compFUEL FEED 00000000 - 0S102732 |
17700-SB3-933 |
US $60.93 |
||
|
12
|
12
17706-SB2-733
Hose b
|
17706-SB2-733 |
— | ||
|
13
|
13
17710-SB3-740
Grommet
|
17710-SB3-740 |
— | ||
|
14
|
14
17711-SA7-930
Grommet
|
17711-SA7-930 |
— | ||
|
15
|
15
17740-SB3-933
Pipe comp
|
17740-SB3-933 |
— | ||
|
16
|
16
38608-692-000 RubberMOUNTING |
38608-692-000 |
US $3.29 |
||
|
17
|
17
38609-692-000 CollarDISTANCE |
38609-692-000 |
from US $2.66 |
||
|
18
|
18
90008-PE2-000 BoltBANJO, 12MM 00000000 - 0S200000 |
90008-PE2-000 |
US $5.04 |
||
|
19
|
19
90009-PE2-010 BoltSEALING, 6MM |
90009-PE2-010 |
US $4.03 |
||
| replacement | |||||
|
19
|
19
90009-RMX-010 Bolt,sealing 6mm |
90009-RMX-010 |
from US $2.73 |
||
|
20
|
20
90020-PD1-000 BoltSEALING, 12MM 00000000 - 0S200000 |
90020-PD1-000 |
US $6.19 |
||
| replacement | |||||
|
20
|
20
90020-PD6-000 BoltSEALING, 12MM 00000000 - 0S200000 |
90020-PD6-000 |
from US $7.99 |
||
|
21
|
21
90201-PD1-000 Nut aSEALING, 12MM 00000000 - 0S200000 |
90201-PD1-000 |
from US $2.15 |
||
|
22
|
22
90428-PD6-003 WasherSEALING, 12MM 0S118158 - |
90428-PD6-003 |
from US $2.38 |
||
|
22
|
22
90428-PD1-003 WasherSEALING, 12MM 00000000 - 0S118157 |
90428-PD1-003 |
US $5.41 |
||
|
23
|
23
90430-PD1-003 WasherSEALING, 6MM 00000000 - 0S200000 |
90430-PD1-003 |
US $4.25 |
||
| replacement | |||||
|
23
|
23
90430-PD6-003 WasherSEALING, 6MM 00000000 - 0S200000 |
90430-PD6-003 |
from US $1.48 |
||
|
24
|
24
90664-SB2-931
Clamp
|
90664-SB2-931 |
— | ||
|
25
|
25
90665-SB2-931
Clamp
|
90665-SB2-931 |
— | ||
|
26
|
26
90690-SB2-003
Bolt
|
90690-SB2-003 |
— | ||
|
28
|
28
95003-400-146-0 TubeVINYL, 12X16X140 (95003-40001-60M) 0S100001 - |
95003-400-146-0 |
US $1.48 |
||
|
28
|
28
90782-SB2-931
Clip
00000000 - 0S200000 |
90782-SB2-931 |
— | ||
|
29
|
29
91406-SA7-931 ClampFUEL HOSE, 15.5MM |
91406-SA7-931 |
US $10.18 |
||
| replacement | |||||
|
29
|
29
91406-SL0-931 ClampFUEL HOSE, 15.5MM |
91406-SL0-931 |
from US $4 |
||
|
30
|
30
93493-060-160-8 Bolt-washer6X16 |
93493-060-160-8 |
from US $0.59 |
||
| replacement | |||||
|
30
|
30
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
31
|
31
93495-060-200-8 Bolt-washer6X20 00000000 - 0S114212 |
93495-060-200-8 |
US $0.59 |
||
|
31
|
31
93495-060-250-8 Bolt-washer6X25 0S114213 - |
93495-060-250-8 |
US $0.74 |
||
|
32
|
32
16010-SB2-730
Strainer set
|
16010-SB2-730 |
— | ||
