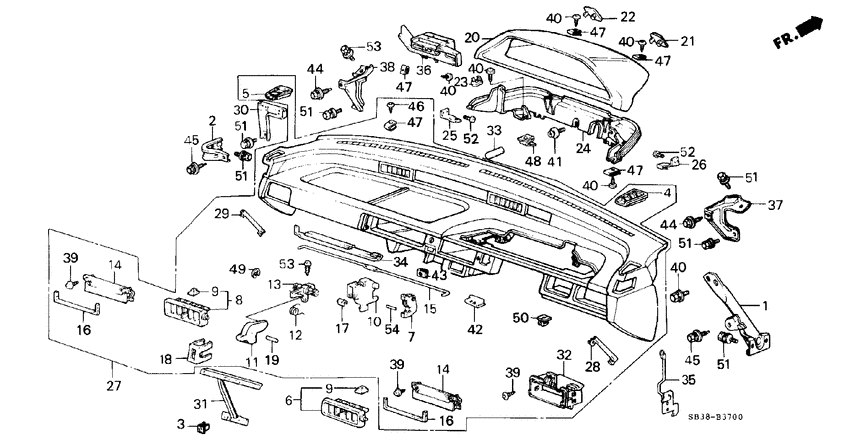

Instrument panel (E,Q,T,U) Diagram Honda CIVIC
- Year
- 1986
- Model code
- CIVIC
- Sales region
- General
- Engine
- EW3
- transmission
- 5MT
- Number of doors
- 3
- grade
- 1.5I
- area code
- KE
- right-hand drive
- +
- sunroof
- +
- rear fog light
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
60647-SB3-000
Stay
|
60647-SB3-000 |
— | ||
|
2
|
2
60679-SB3-000ZZ
Bracket
|
60679-SB3-000ZZ |
— | ||
|
3
|
3
62316-679-003 GrommetSCREW, 4MM |
62316-679-003 |
US $2.31 |
||
|
4
|
4
64451-SB3-000ZK GarnishR. SIDE DEFROSTER *NH83L* 0S200001 - |
64451-SB3-000ZK |
US $11.06 |
||
|
5
|
5
64461-SB3-000ZK GarnishL. SIDE DEFROSTER *NH83L* 0S200001 - |
64461-SB3-000ZK |
US $11.06 |
||
|
6
|
6
64474-SB3-000ZA
Outlet
0S200001 - |
64474-SB3-000ZA |
— | ||
|
7
|
7
64475-SB3-000
Hinge
|
64475-SB3-000 |
— | ||
|
8
|
8
64479-SB3-000ZA
Outlet
0S200001 - |
64479-SB3-000ZA |
— | ||
|
9
|
9
64499-SB3-000
Bush
0S200001 - |
64499-SB3-000 |
— | ||
|
10
|
10
64521-SB3-000
Panel
|
64521-SB3-000 |
— | ||
|
11
|
11
64522-SB3-000ZA
Knob
|
64522-SB3-000ZA |
— | ||
|
12
|
12
64524-SB3-000
Spring
|
64524-SB3-000 |
— | ||
|
13
|
13
64525-SB3-000
Link
|
64525-SB3-000 |
— | ||
|
14
|
14
64526-SB3-000
Valve
|
64526-SB3-000 |
— | ||
|
15
|
15
64527-SB3-000
Shaft
|
64527-SB3-000 |
— | ||
|
16
|
16
64529-SB3-000
Seal
|
64529-SB3-000 |
— | ||
|
17
|
17
64530-SB3-000
Stopper
|
64530-SB3-000 |
— | ||
|
18
|
18
64531-SB3-000ZA
Garnish
|
64531-SB3-000ZA |
— | ||
|
19
|
19
64539-SB3-000
Pin
|
64539-SB3-000 |
— | ||
|
20
|
20
66220-SB3-010ZJ
Visor
0S200001 - |
66220-SB3-010ZJ |
— | ||
|
21
|
21
66222-SB3-000ZJ
Lid
0S200001 - |
66222-SB3-000ZJ |
— | ||
|
22
|
22
66223-SB3-000ZJ
Lid
0S200001 - |
66223-SB3-000ZJ |
— | ||
|
23
|
23
66226-SB3-000ZA Lid aVISOR *NH1L* |
66226-SB3-000ZA |
US $3.36 |
||
|
24
|
24
66231-SB3-010ZA
Frame
0S100001 - |
66231-SB3-010ZA |
— | ||
|
25
|
25
66241-SB3-000
Bracket
|
66241-SB3-000 |
— | ||
|
26
|
26
66242-SB3-000
Stay
|
66242-SB3-000 |
— | ||
|
27
|
27
66821-SB3-040ZC
Panel assy.
0S200001 - |
66821-SB3-040ZC |
— | ||
|
28
|
28
66831-SB3-000
Guide assy
|
66831-SB3-000 |
— | ||
|
29
|
29
66836-SB3-000
Guide assy
|
66836-SB3-000 |
— | ||
|
30
|
30
66838-SB3-000
Bracket
|
66838-SB3-000 |
— | ||
|
31
|
31
66839-SB3-020
Stay
|
66839-SB3-020 |
— | ||
|
32
|
32
66840-SB3-000
Box assy
|
66840-SB3-000 |
— | ||
|
33
|
33
66844-SA7-000 CapINSTRUMENT PANEL STAY |
66844-SA7-000 |
US $4.07 |
||
|
34
|
34
66847-SB3-010
Frame
|
66847-SB3-010 |
— | ||
|
35
|
35
66848-SB3-010
Stay
|
66848-SB3-010 |
— | ||
|
36
|
36
66849-SB3-000
Bracket
|
66849-SB3-000 |
— | ||
|
37
|
37
66886-SB3-000
Bracket
|
66886-SB3-000 |
— | ||
|
38
|
38
66887-SB3-000
Bracket
|
66887-SB3-000 |
— | ||
|
39
|
39
90101-SA4-000 ScrewTAPPING, 4X12 |
90101-SA4-000 |
US $0.80 |
||
| replacement | |||||
|
39
|
39
93913-14280 ScrewTAPPING, 4X12 (PO) |
93913-14280 |
from US $0.37 |
||
|
41
|
41
90105-SA7-000 Screw-washer4X16 |
90105-SA7-000 |
from US $0.28 |
||
|
42
|
42
90105-SB3-000
Clip
0S200001 - |
90105-SB3-000 |
— | ||
|
44
|
44
90128-SA7-000 Bolt-washer6X25 00000000 - 0S212856 |
90128-SA7-000 |
US $3.58 |
||
|
45
|
45
90128-SB0-000 Bolt-washer6X30 0S212857 - |
90128-SB0-000 |
US $2.59 |
||
|
46
|
46
90160-SB3-003ZA
Screw
|
90160-SB3-003ZA |
— | ||
|
47
|
47
90302-SA4-003 NutSPRING, 4MM |
90302-SA4-003 |
from US $2.59 |
||
|
48
|
48
90302-SB3-010
Nut
|
90302-SB3-010 |
— | ||
|
49
|
49
90454-SB3-000
Circlip
|
90454-SB3-000 |
— | ||
|
50
|
50
90651-692-731
Nut
|
90651-692-731 |
— | ||
|
51
|
51
93495-060-160-8 Bolt-washer6X16 |
93495-060-160-8 |
US $1.63 |
||
| replacement | |||||
|
51
|
51
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
53
|
53
93903-24280 ScrewTAPPING, 4X10 |
93903-24280 |
from US $0.37 |
||
|
54
|
54
94305-40142 PinSPRING, 4X14 |
94305-40142 |
US $0.81 |
||
