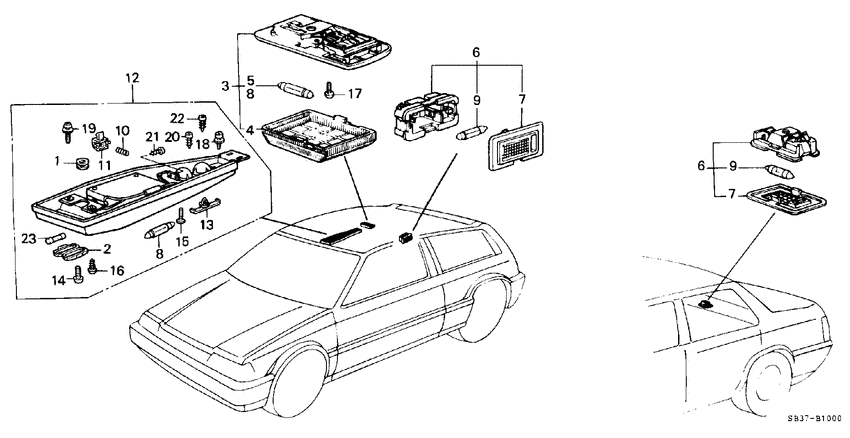

Interior light Diagram Honda CIVIC
- Year
- 1987
- Model code
- CIVIC
- Sales region
- General
- Engine
- EW2
- transmission
- 4AT
- Number of doors
- 3
- grade
- GL
- area code
- KF
- yellow bulb
- +
- intermittent wiper
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
3
|
3
34250-SB2-003ZA Light assyINTERIOR *Y8L* (DAIICHI) |
34250-SB2-003ZA |
US $27.01 |
||
|
4
|
4
34252-SB2-003 LensDAIICHI |
34252-SB2-003 |
US $5.18 |
||
|
6
|
6
34260-SA0-013
Light assy
|
34260-SA0-013 |
— | ||
|
7
|
7
34262-SA0-003
Lens
|
34262-SA0-003 |
— | ||
|
8
|
8
34295-SA5-003 Bulb12V 3.4W) (DAIICHI |
34295-SA5-003 |
from US $1.85 |
||
|
9
|
9
34295-538-003 Bulb12V 5W) (DAIICHI |
34295-538-003 |
US $4.96 |
||
| replacement | |||||
|
9
|
9
34295-SD4-003 Bulb12V 5W.K |
34295-SD4-003 |
from US $1.98 |
||
|
12
|
12
71870-SB3-763ZA
Console assy
0S300001 - |
71870-SB3-763ZA |
— | ||
|
17
|
17
93891-040-120-8 Screw-washer4X12 |
93891-040-120-8 |
from US $0.44 |
||
|
19
|
19
93893-050-161-8 Screw-washer5X16 |
93893-050-161-8 |
from US $0.52 |
||
| replacement | |||||
|
19
|
19
93893-050-160-8 Screw-washer5X16 |
93893-050-160-8 |
from US $0.55 |
||
