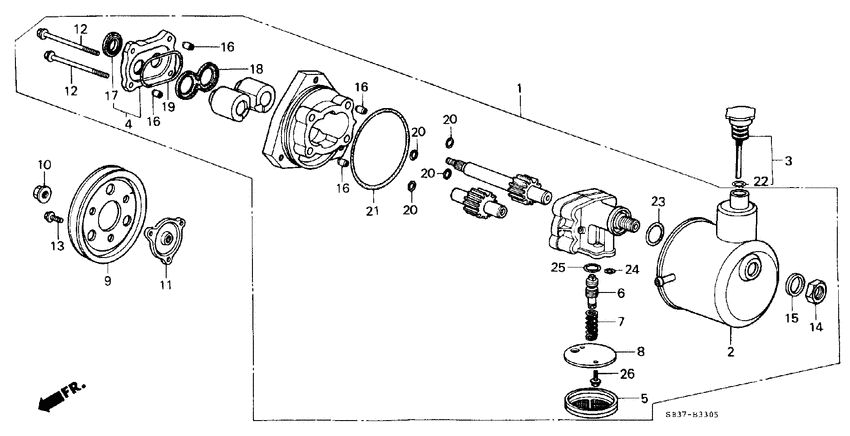

P.s. pump components (1) Diagram Honda CIVIC
- Year
- 1985
- Model code
- CIVIC
- Sales region
- General
- Engine
- EW2
- transmission
- 3AT
- Number of doors
- 3
- grade
- GL
- area code
- KS
- sunroof
- +
- intermittent wiper
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56110-PE0-030
Sub pump assy.
0S100001 - 0S108033 |
56110-PE0-030 |
— | ||
|
2
|
2
56230-PE0-010
Reservoir
0S100001 - 0S108033 |
56230-PE0-010 |
— | ||
|
3
|
3
56240-PE0-013
Cap comp.
0S100001 - 0S108033 |
56240-PE0-013 |
— | ||
|
4
|
4
56250-PE0-000
Cover comp.
0S100001 - 0S108033 |
56250-PE0-000 |
— | ||
|
5
|
5
56306-PE0-000
Screen
0S100001 - 0S108033 |
56306-PE0-000 |
— | ||
|
6
|
6
56360-PC1-010
Spool assy.
0S100001 - 0S108033 |
56360-PC1-010 |
— | ||
|
6
|
6
56350-PC1-010
Spool assy.
0S100001 - 0S108033 |
56350-PC1-010 |
— | ||
|
7
|
7
56385-PC1-000
Spring
0S100001 - 0S108033 |
56385-PC1-000 |
— | ||
|
8
|
8
56470-PE0-000
Plate
0S100001 - 0S108033 |
56470-PE0-000 |
— | ||
|
9
|
9
56472-671-000
Pulley
0S100001 - 0S108033 |
56472-671-000 |
— | ||
|
10
|
10
56473-671-000
Nut
0S100001 - 0S108033 |
56473-671-000 |
— | ||
|
11
|
11
56481-PC1-000
Flange
0S100001 - 0S108033 |
56481-PC1-000 |
— | ||
|
12
|
12
90001-PE0-000
Bolt
0S100001 - 0S108033 |
90001-PE0-000 |
— | ||
|
13
|
13
90011-896-000 BoltFLANGE, 6X8 0S100001 - 0S108033 |
90011-896-000 |
US $3.98 |
||
|
14
|
14
90206-PE0-000
Nut
0S100001 - 0S108033 |
90206-PE0-000 |
— | ||
|
15
|
15
90403-PE0-000
Washer
0S100001 - 0S108033 |
90403-PE0-000 |
— | ||
|
16
|
16
90701-679-000 Dowel pin8X10 0S100001 - 0S108033 |
90701-679-000 |
US $1.80 |
||
| replacement | |||||
|
16
|
16
94301-08100 Dowel pin8X10 0S100001 - 0S108033 |
94301-08100 |
from US $0.89 |
||
|
17
|
17
91201-PE0-003
Oil seal
0S100001 - 0S108033 |
91201-PE0-003 |
— | ||
|
17
|
17
91201-PE0-004 Oil seal16X30X7 (ARAI) 0S100001 - 0S108033 |
91201-PE0-004 |
US $5.32 |
||
|
18
|
18
91302-PC1-004
Seal
0S100001 - 0S108033 |
91302-PC1-004 |
— | ||
| replacement | |||||
|
18
|
18
91302-PC1-003 SealPLUNGER (NOK) 0S100001 - 0S108033 |
91302-PC1-003 |
from US $4.13 |
||
|
18
|
18
91302-PC1-003 SealPLUNGER (NOK) 0S100001 - 0S108033 |
91302-PC1-003 |
from US $4.13 |
||
|
19
|
19
91302-657-000 O-ring53.8X3.1 0S100001 - 0S108033 |
91302-657-000 |
from US $3.99 |
||
|
20
|
20
91312-PE0-000 O-ring9.5X1.5 0S100001 - 0S108033 |
91312-PE0-000 |
US $2.10 |
||
|
21
|
21
91313-PE0-004 O-ring94.6X3.5 (ARAI) 0S100001 - 0S108033 |
91313-PE0-004 |
US $6.44 |
||
|
21
|
21
91313-PE0-003
O-ring
0S100001 - 0S108033 |
91313-PE0-003 |
— | ||
|
22
|
22
91314-PE0-004 O-ring19.8X1.9 (ARAI) 0S100001 - 0S108033 |
91314-PE0-004 |
US $1.97 |
||
| replacement | |||||
|
22
|
22
91353-KM1-004 O-ring a (19.8x1.9)0S100001 - 0S108033 |
91353-KM1-004 |
from US $2.56 |
||
|
22
|
22
91314-PE0-003 O-ring19.8X1.9 (NOK) 0S100001 - 0S108033 |
91314-PE0-003 |
US $1.97 |
||
| replacement | |||||
|
22
|
22
91353-KM1-004 O-ring a (19.8x1.9)0S100001 - 0S108033 |
91353-KM1-004 |
from US $2.56 |
||
|
23
|
23
91315-PE0-003 O-ring22.1X1.9 (NOK) 0S100001 - 0S108033 |
91315-PE0-003 |
US $2.17 |
||
|
23
|
23
91315-PE0-004
O-ring
0S100001 - 0S108033 |
91315-PE0-004 |
— | ||
|
24
|
24
91316-PE0-004
O-ring
0S100001 - 0S108033 |
91316-PE0-004 |
— | ||
|
24
|
24
91316-PE0-003 O-ring6.5X1.5 (NOK) 0S100001 - 0S108033 |
91316-PE0-003 |
US $2.17 |
||
|
25
|
25
91322-PC1-003 O-ring18X1.5 (NOK) 0S100001 - 0S108033 |
91322-PC1-003 |
US $2.10 |
||
|
25
|
25
91322-PC1-004
O-ring
0S100001 - 0S108033 |
91322-PC1-004 |
— | ||
|
26
|
26
95700-060-180-8 BoltFLANGE, 6X18 0S100001 - 0S108033 |
95700-060-180-8 |
US $1.41 |
||
| replacement | |||||
|
26
|
26
95701-060-180-8 Bolt, FLANGE, 6X180S100001 - 0S108033 |
95701-060-180-8 |
from US $0.34 |
||
