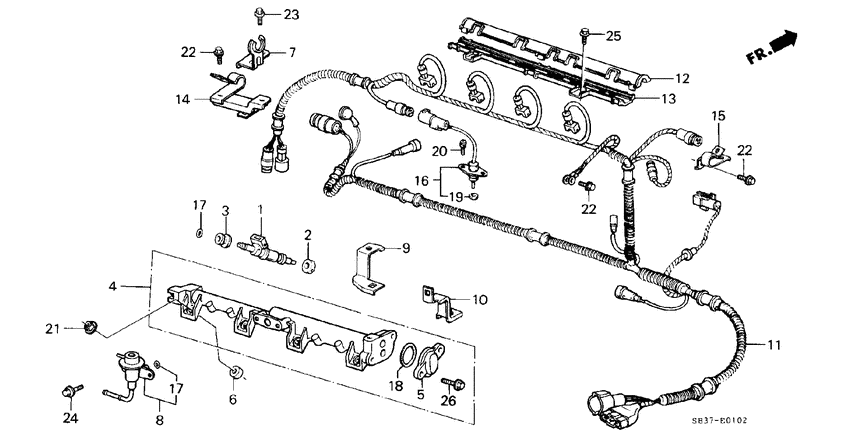

Fuel injector Diagram Honda CIVIC
- Year
- 1987
- Model code
- CIVIC
- Sales region
- General
- Engine
- EW3
- transmission
- 5MT
- Number of doors
- 3
- grade
- GT
- area code
- KX
- catalyst
- +
- intermittent wiper
- +
- 5mt
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16450-PD6-003
Injector
|
16450-PD6-003 |
— | ||
|
2
|
2
16472-PD6-000 Seal ringINJECTOR (OTSUKA) |
16472-PD6-000 |
US $7.33 |
||
|
3
|
3
16473-PD6-000 Cushion ringINJECTOR (OTSUKA) |
16473-PD6-000 |
from US $5.33 |
||
| replacement | |||||
|
3
|
3
16473-P10-A01 Cushion ringINJECTOR (NOK) |
16473-P10-A01 |
US $10.10 |
||
|
4
|
4
16620-PE7-661
Line comp
9000001 - |
16620-PE7-661 |
— | ||
|
5
|
5
16623-PE2-005
Cover
|
16623-PE2-005 |
— | ||
|
6
|
6
16638-PD6-000
Insulator
|
16638-PD6-000 |
— | ||
|
7
|
7
16729-PE7-730
Clamp
|
16729-PE7-730 |
— | ||
|
8
|
8
16740-PE7-662
Regulator assy
9000001 - |
16740-PE7-662 |
— | ||
|
9
|
9
17365-PE7-660
Stay
9000001 - |
17365-PE7-660 |
— | ||
|
10
|
10
17435-PE7-660
Stay
9000001 - |
17435-PE7-660 |
— | ||
|
11
|
11
32110-PE7-674
Sub cord
9200001 - |
32110-PE7-674 |
— | ||
|
12
|
12
32127-PE2-000
Holder
|
32127-PE2-000 |
— | ||
|
13
|
13
32128-PE7-660
Holder
|
32128-PE7-660 |
— | ||
|
14
|
14
32741-PE2-010 ClampL. ENGINE WIRE HARNESS 9000001 - |
32741-PE2-010 |
US $9.10 |
||
|
15
|
15
32742-PE2-020
Clamp
|
32742-PE2-020 |
— | ||
|
16
|
16
37880-PE2-013 Sensor assyAIR TEMP 9000001 - |
37880-PE2-013 |
US $54.55 |
||
|
17
|
17
91301-PD6-003 O-ring7.3X2.2 (ARAI) |
91301-PD6-003 |
US $3.38 |
||
| replacement | |||||
|
17
|
17
91301-P2F-A01 O-ring7.3X2.2 (NOK) |
91301-P2F-A01 |
US $5.39 |
||
|
18
|
18
91301-PE7-661 O-ring22.1X1.9 9000001 - |
91301-PE7-661 |
US $2.17 |
||
|
19
|
19
91303-PD1-910
O-ring
9000001 - |
91303-PD1-910 |
— | ||
| replacement | |||||
|
19
|
19
91303-PK2-005 O-ring (7.5X1.5)7.5X1.5 9000001 - |
91303-PK2-005 |
from US $1.63 |
||
|
20
|
20
93892-050-120-8 Screw-washer5X12 |
93892-050-120-8 |
from US $0.44 |
||
|
21
|
21
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
22
|
22
95700-060-100-8 BoltFLANGE, 6X10 |
95700-060-100-8 |
US $24.80 |
||
| replacement | |||||
|
22
|
22
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
|
23
|
23
95700-060-120-8
Bolt
|
95700-060-120-8 |
— | ||
| replacement | |||||
|
23
|
23
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
24
|
24
95700-060-140-8 BoltFLANGE, 6X14 |
95700-060-140-8 |
from US $0.52 |
||
| replacement | |||||
|
24
|
24
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
|
25
|
25
95700-060-160-8 BoltFLANGE, 6X16 |
95700-060-160-8 |
US $1.70 |
||
| replacement | |||||
|
25
|
25
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
26
|
26
95700-060-180-8 BoltFLANGE, 6X18 |
95700-060-180-8 |
US $1.41 |
||
| replacement | |||||
|
26
|
26
95701-060-180-8 Bolt, FLANGE, 6X18 |
95701-060-180-8 |
from US $0.34 |
||
