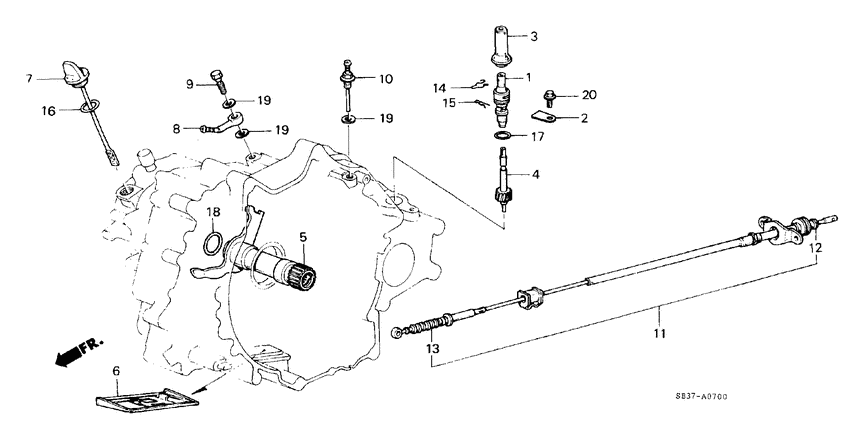

Starter shaft/ speedometer gear Diagram Honda CIVIC
- Year
- 1985
- Model code
- CIVIC
- Sales region
- General
- Engine
- EW2
- transmission
- 3AT
- Number of doors
- 4
- grade
- GL
- area code
- KX
- intermittent wiper
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23811-689-020
Holder comp
|
23811-689-020 |
— | ||
|
2
|
2
23813-689-000
Plate
|
23813-689-000 |
— | ||
|
3
|
3
23814-689-000 SealGEAR HOLDER |
23814-689-000 |
US $5.18 |
||
|
4
|
4
23820-PA9-010
Gear
|
23820-PA9-010 |
— | ||
|
5
|
5
25155-PF0-000
Stator Shaft
1500001 - 1506169 |
25155-PF0-000 |
— | ||
| replacement | |||||
|
5
|
5
25155-PF0-020
Stator shaft assy
1500001 - 1506169 |
25155-PF0-020 |
— | ||
|
5
|
5
25155-PF0-010
Shaft assy
1506170 - |
25155-PF0-010 |
— | ||
|
6
|
6
25420-PA9-000
Strainer
|
25420-PA9-000 |
— | ||
|
7
|
7
25610-PF0-850
Gauge comp.
1500001 - |
25610-PF0-850 |
— | ||
|
8
|
8
25910-639-000
Joint a
|
25910-639-000 |
— | ||
|
9
|
9
25951-639-000 BoltJOINT |
25951-639-000 |
from US $11.23 |
||
|
10
|
10
25960-PA9-000 JointOIL HOSE 00000000 - 1539816 |
25960-PA9-000 |
US $12.93 |
||
|
10
|
10
25960-PA9-010
Joint
1539817 - 2000000 |
25960-PA9-010 |
— | ||
|
11
|
11
54315-SB3-981
Wire
|
54315-SB3-981 |
— | ||
|
12
|
12
54341-SA0-980
Boot
|
54341-SA0-980 |
— | ||
|
13
|
13
54342-689-980 Boot aCONTROL WIRE |
54342-689-980 |
US $7.56 |
||
|
14
|
14
90637-689-000 ClipSPEEDOMETER CABLE |
90637-689-000 |
US $3.42 |
||
|
15
|
15
90638-689-000 ClipSPEEDOMETER GEAR |
90638-689-000 |
US $3.27 |
||
|
16
|
16
91301-250-000 O-ring21.5MM |
91301-250-000 |
from US $2.29 |
||
| replacement | |||||
|
16
|
16
91307-425-003 O-ring21.5X3.2 |
91307-425-003 |
from US $1.67 |
||
|
17
|
17
91313-611-000 O-ring23.5X2 00000000 - 1400000 |
91313-611-000 |
US $2.59 |
||
|
18
|
18
91316-612-000 O-ring27.5X1.7 |
91316-612-000 |
from US $2.66 |
||
|
19
|
19
94109-12000 WasherDRAIN PLUG, 12MM |
94109-12000 |
from US $0.34 |
||
|
20
|
20
95900-060-160-8 BoltFLANGE, 6X16 |
95900-060-160-8 |
from US $0.52 |
||
| replacement | |||||
|
20
|
20
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
