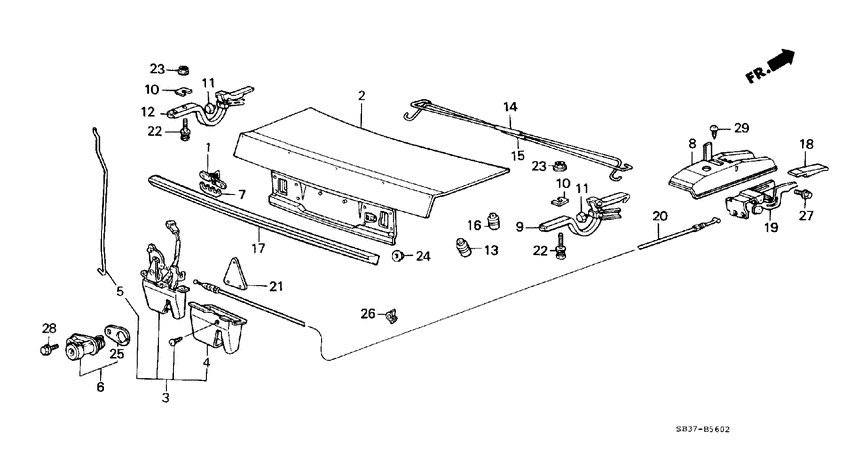

Trunk lid (4D; 0S200001-) Diagram Honda CIVIC
- Year
- 1987
- Model code
- CIVIC
- Sales region
- General
- Engine
- EW2
- transmission
- 4AT
- Number of doors
- 4
- grade
- GL
- area code
- KX
- sunroof
- +
- intermittent wiper
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
74862-SE3-003 StrikerTRUNK |
74862-SE3-003 |
US $11.27 |
||
|
2
|
2
83110-SB4-731ZZ
Lid comp
|
83110-SB4-731ZZ |
— | ||
|
2
|
2
83110-SB4-661ZZ
Lid comp
|
83110-SB4-661ZZ |
— | ||
|
3
|
3
83300-SB4-013
Lock assy
|
83300-SB4-013 |
— | ||
|
4
|
4
83302-SA4-013
Cover
|
83302-SA4-013 |
— | ||
|
5
|
5
83302-SB4-003
Rod
|
83302-SB4-003 |
— | ||
|
6
|
6
83303-SB4-023
Cylinder
0S300001 - |
83303-SB4-023 |
— | ||
|
7
|
7
83306-SB4-000
Spacer
|
83306-SB4-000 |
— | ||
|
8
|
8
83309-SB2-661ZF
Cover
|
83309-SB2-661ZF |
— | ||
|
8
|
8
83309-SB2-661ZJ CoverTAILGATE OPENER *NH89L* |
83309-SB2-661ZJ |
US $12.60 |
||
|
8
|
8
83309-SB2-661ZH
Cover
|
83309-SB2-661ZH |
— | ||
|
9
|
9
83410-SB4-020ZZ
Hinge comp
|
83410-SB4-020ZZ |
— | ||
|
10
|
10
83415-SA4-000
Shim
|
83415-SA4-000 |
— | ||
|
11
|
11
83418-SB4-010
Cushion
|
83418-SB4-010 |
— | ||
|
12
|
12
83420-SB4-020ZZ
Hinge comp
|
83420-SB4-020ZZ |
— | ||
|
13
|
13
83431-SA4-000 CushionFR. TRUNK |
83431-SA4-000 |
US $2.86 |
||
|
14
|
14
83431-SB4-910
Spring
|
83431-SB4-910 |
— | ||
|
14
|
14
83431-SB4-000
Spring
|
83431-SB4-000 |
— | ||
|
15
|
15
83441-SB4-000
Spring
|
83441-SB4-000 |
— | ||
|
15
|
15
83441-SB4-910
Spring
|
83441-SB4-910 |
— | ||
|
16
|
16
85268-SA5-003 StopperTAILGATE (BLACK) |
85268-SA5-003 |
US $6.99 |
||
|
17
|
17
85290-SB4-911
Spoiler
0S206390 - |
85290-SB4-911 |
— | ||
|
18
|
18
85511-SB3-003ZJ KnobTAILGATE OPENER *NH89L* |
85511-SB3-003ZJ |
US $8.68 |
||
|
18
|
18
85511-SB3-003ZH
Knob
|
85511-SB3-003ZH |
— | ||
|
18
|
18
85511-SB3-003ZF
Knob
|
85511-SB3-003ZF |
— | ||
|
19
|
19
85522-SB3-003
Opener assy
|
85522-SB3-003 |
— | ||
|
20
|
20
85525-SB4-661
Cable
|
85525-SB4-661 |
— | ||
|
21
|
21
85831-SB4-000
Cover
|
85831-SB4-000 |
— | ||
|
22
|
22
90103-SE3-000
Bolt
|
90103-SE3-000 |
— | ||
|
23
|
23
90222-SB4-000 Nut-washer6MM |
90222-SB4-000 |
US $1.05 |
||
|
24
|
24
90303-SB0-000 NutCAP, 6MM |
90303-SB0-000 |
US $1.96 |
||
|
25
|
25
90501-SH3-000 PackingSEAT 0S300001 - |
90501-SH3-000 |
US $2.31 |
||
|
26
|
26
90697-SB2-003 ClipHOOD WIRE 0S300001 - |
90697-SB2-003 |
US $1.82 |
||
|
27
|
27
93482-060-160-8 Bolt-washer6X16 |
93482-060-160-8 |
from US $0.52 |
||
| replacement | |||||
|
27
|
27
93402-060-160-8 Bolt-washer6X16 |
93402-060-160-8 |
from US $0.52 |
||
|
28
|
28
93492-060-120-8 Bolt-washer6X12 |
93492-060-120-8 |
from US $0.52 |
||
| replacement | |||||
|
28
|
28
93402-060-120-8 Bolt-washer6X12 |
93402-060-120-8 |
from US $0.52 |
||
|
29
|
29
93903-34180 ScrewTAPPING, 4X8 |
93903-34180 |
from US $0.37 |
||
