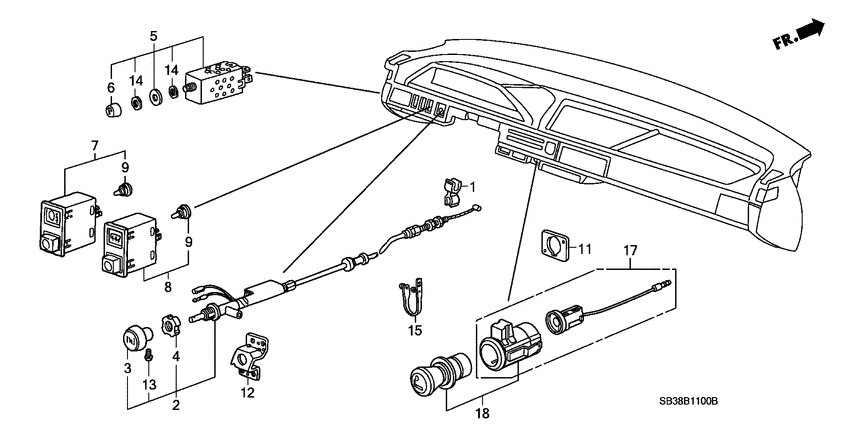

Switch (1) Diagram Honda CIVIC
- Year
- 1987
- Model code
- CIVIC
- Sales region
- General
- Engine
- ZA1
- transmission
- 4MT
- Number of doors
- 3
- grade
- DX 1200
- area code
- KP
- left-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
17950-SB3-663
Wire comp
0S200001 - |
17950-SB3-663 |
— | ||
|
3
|
3
17951-SB3-000
Knob
0S001993 - |
17951-SB3-000 |
— | ||
|
4
|
4
17957-659-003 Nut14MM |
17957-659-003 |
US $3.01 |
||
|
8
|
8
35500-SB2-013
Switch assy
|
35500-SB2-013 |
— | ||
|
9
|
9
37553-SA0-003
Bulb & socket
|
37553-SA0-003 |
— | ||
|
12
|
12
66219-SB3-602
Bracket
0S100001 - |
66219-SB3-602 |
— | ||
|
13
|
13
90130-SA0-003
Screw
0S100001 - |
90130-SA0-003 |
— | ||
|
15
|
15
90679-671-621 BandVENT TUBE |
90679-671-621 |
US $4.48 |
||
|
17
|
17
39620-SB3-305
Socket assy
|
39620-SB3-305 |
— | ||
|
18
|
18
39600-S84-G01
Lighter assy
|
39600-S84-G01 |
— | ||
| replacement | |||||
|
18
|
18
39600-SW3-505 LIGHTER ASSYCIGA |
39600-SW3-505 |
US $21.62 |
||
