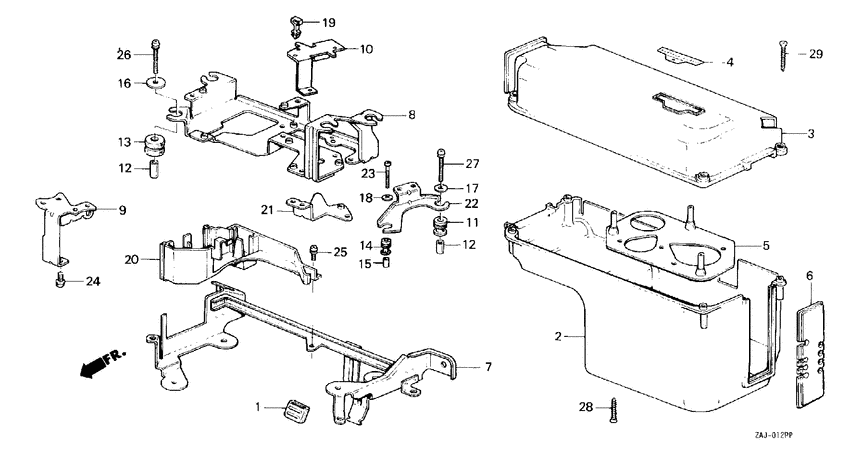

Control box cover Diagram Honda CIVIC
- Year
- 1986
- Model code
- CIVIC WAGON
- Sales region
- General
- Engine
- EW2
- transmission
- 5MT
- Number of doors
- 5
- grade
- DX
- area code
- KQ
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18804-PB2-300 RubberCUSHION |
18804-PB2-300 |
US $4.06 |
||
|
2
|
2
36019-PE0-941
Cover
|
36019-PE0-941 |
— | ||
|
3
|
3
36020-PE1-672
Cover
|
36020-PE1-672 |
— | ||
|
4
|
4
36022-PE4-791
Label
|
36022-PE4-791 |
— | ||
|
5
|
5
36023-PE0-911
Plate
|
36023-PE0-911 |
— | ||
|
6
|
6
36024-PE4-791 HolderTUBE |
36024-PE4-791 |
US $6.86 |
||
|
7
|
7
36033-PE1-671
Stay comp
|
36033-PE1-671 |
— | ||
|
8
|
8
36035-PE0-911
Base comp.
|
36035-PE0-911 |
— | ||
|
9
|
9
36037-PE1-671
Bracket
|
36037-PE1-671 |
— | ||
|
10
|
10
36037-PE4-751
Bracket
|
36037-PE4-751 |
— | ||
|
11
|
11
36051-657-300
Rubber
|
36051-657-300 |
— | ||
|
12
|
12
36052-657-300 CollarCONTROL VALVE |
36052-657-300 |
US $6 |
||
|
13
|
13
36053-PE0-004 Rubber bMOUNTING |
36053-PE0-004 |
US $2.94 |
||
|
14
|
14
36053-657-003
Rubber b
|
36053-657-003 |
— | ||
|
15
|
15
36054-657-003
Collar b
|
36054-657-003 |
— | ||
|
16
|
16
36055-PE0-004
Washer
|
36055-PE0-004 |
— | ||
|
17
|
17
36055-657-003
Washer a
|
36055-657-003 |
— | ||
|
18
|
18
36056-657-003
Washer b
|
36056-657-003 |
— | ||
|
19
|
19
36059-PD1-004
Clamp b
|
36059-PD1-004 |
— | ||
|
20
|
20
36068-PE1-672
Case
|
36068-PE1-672 |
— | ||
|
21
|
21
36089-PE0-911
Bracket
|
36089-PE0-911 |
— | ||
|
22
|
22
36092-PE0-911
Bracket
|
36092-PE0-911 |
— | ||
|
23
|
23
93892-040-221-8 Screw-washer4X22 |
93892-040-221-8 |
US $0.44 |
||
|
24
|
24
93892-050-080-8 Screw-washer5X8 |
93892-050-080-8 |
from US $0.44 |
||
|
25
|
25
93892-050-100-8 Screw-washer5X10 |
93892-050-100-8 |
from US $0.44 |
||
|
26
|
26
93892-060-250-8 Screw-washer6X25 |
93892-060-250-8 |
from US $0.59 |
||
|
27
|
27
93892-060-280-8 Screw-washer6X28 |
93892-060-280-8 |
US $0.59 |
||
|
28
|
28
93905-34520 ScrewTAPPING, 4X20 |
93905-34520 |
US $0.37 |
||
|
29
|
29
93905-34620 ScrewTAPPING, 4X25 |
93905-34620 |
US $0.37 |
