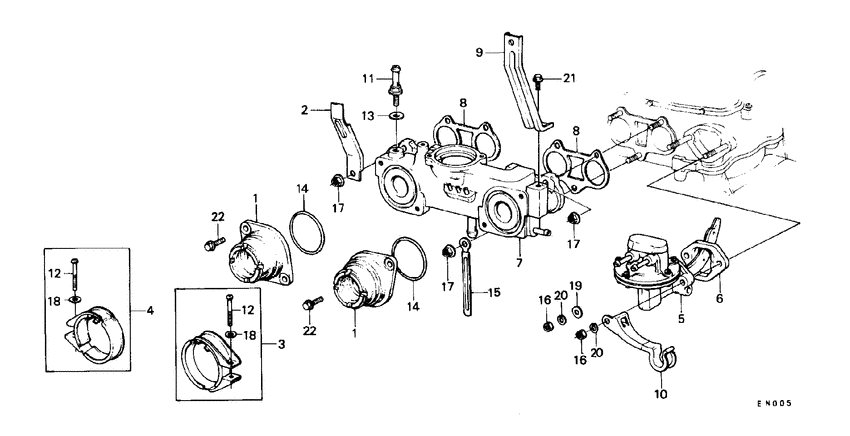

Carburetor insulator/ manifold/fuel pump (2) Diagram Honda CIVIC
- Year
- 1983
- Model code
- CIVIC
- Sales region
- General
- Engine
- EN4
- transmission
- 5MT
- Number of doors
- 3
- grade
- S
- area code
- KB
- sunroof
- +
- air conditioner (dealer set)
- +
- rear wiper
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16211-PB9-000
Insulator comp.
|
16211-PB9-000 |
— | ||
|
2
|
2
16219-PB9-010
Stay
|
16219-PB9-010 |
— | ||
|
3
|
3
16240-PB9-000
Band
|
16240-PB9-000 |
— | ||
|
4
|
4
16241-PB9-000
Band
|
16241-PB9-000 |
— | ||
|
5
|
5
16700-PB9-013
Pump assy.
2013907 - |
16700-PB9-013 |
— | ||
|
6
|
6
16701-634-000 Insulator comp.FUEL PUMP |
16701-634-000 |
from US $13.41 |
||
|
7
|
7
17100-PB9-000
Manifold
|
17100-PB9-000 |
— | ||
|
8
|
8
17105-634-000
Gasket
|
17105-634-000 |
— | ||
|
9
|
9
17255-PB9-010
Stay
2039049 - |
17255-PB9-010 |
— | ||
|
10
|
10
19509-PB9-000
Clamp
|
19509-PB9-000 |
— | ||
|
11
|
11
25713-580-010
Joint
|
25713-580-010 |
— | ||
|
12
|
12
90100-PB9-000 ScrewPAN, 6X28 |
90100-PB9-000 |
US $2.94 |
||
|
13
|
13
90474-580-000
Washer
|
90474-580-000 |
— | ||
|
14
|
14
91301-PB9-000
O-ring
|
91301-PB9-000 |
— | ||
|
15
|
15
91417-PA1-010 ClipENGINE SUB CORD |
91417-PA1-010 |
from US $3.15 |
||
|
16
|
16
94001-080-800-S NutHEX., 8MM |
94001-080-800-S |
from US $0.44 |
||
| replacement | |||||
|
16
|
16
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
17
|
17
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
18
|
18
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
19
|
19
94102-08800 WasherPLAIN, 8MM |
94102-08800 |
from US $0.37 |
||
|
20
|
20
94111-08800 WasherSPRING, 8MM |
94111-08800 |
from US $0.37 |
||
|
21
|
21
95700-060-120-8
Bolt
|
95700-060-120-8 |
— | ||
| replacement | |||||
|
21
|
21
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
22
|
22
95700-060-160-8 BoltFLANGE, 6X16 |
95700-060-160-8 |
US $1.70 |
||
| replacement | |||||
|
22
|
22
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
