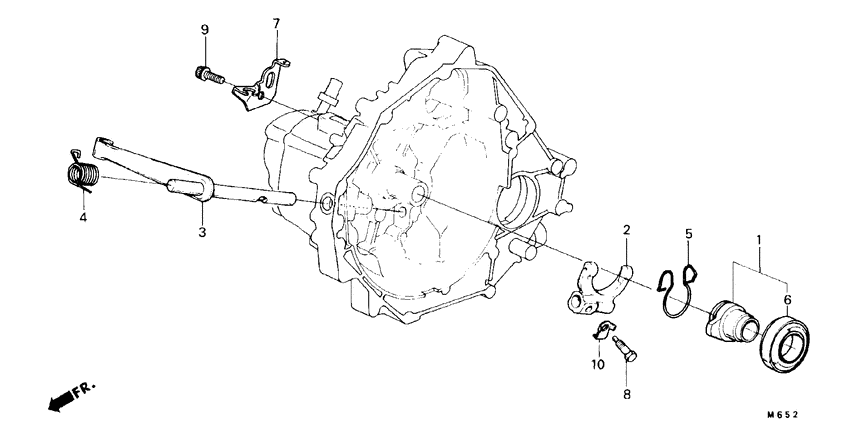

Clutch release Diagram Honda CIVIC
- Year
- 1983
- Model code
- CIVIC
- Sales region
- General
- Engine
- EN4
- transmission
- 5MT
- Number of doors
- 3
- grade
- S
- area code
- KB
- sunroof
- +
- rear wiper
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22810-PB7-010
Holder comp
9100001 - |
22810-PB7-010 |
— | ||
|
2
|
2
22821-PA0-000
Arm a
|
22821-PA0-000 |
— | ||
|
3
|
3
22830-PB7-000
Shaft
9100001 - |
22830-PB7-000 |
— | ||
|
4
|
4
22851-634-000
Spring
|
22851-634-000 |
— | ||
|
5
|
5
22861-634-000
Clip
|
22861-634-000 |
— | ||
|
6
|
6
22863-634-004 BearingCLUTCH RELEASE (KOYO) |
22863-634-004 |
US $31.87 |
||
|
6
|
6
22863-634-023
Bearing
|
22863-634-023 |
— | ||
|
7
|
7
22871-PB7-010
Stay
9100001 - |
22871-PB7-010 |
— | ||
|
8
|
8
90029-611-000 BoltHEX., 8X24 |
90029-611-000 |
US $8.26 |
||
| replacement | |||||
|
8
|
8
90029-611-010 BoltHEX., 8X24 |
90029-611-010 |
from US $2.52 |
||
|
9
|
9
90081-PB7-000
Screw
|
90081-PB7-000 |
— | ||
|
10
|
10
90406-611-000 WasherLOCK, 8MM |
90406-611-000 |
US $4.25 |
||
| replacement | |||||
|
10
|
10
90406-PS1-000
Washer
|
90406-PS1-000 |
— | ||
