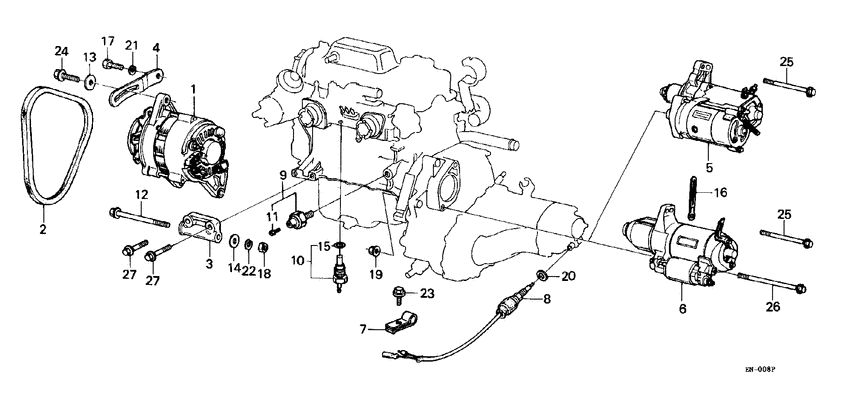

Engine electrical (3) Diagram Honda CIVIC
- Year
- 1983
- Model code
- CIVIC
- Sales region
- General
- Engine
- EN4
- transmission
- 5MT
- Number of doors
- 3
- grade
- S
- area code
- KB
- sunroof
- +
- rear wiper
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-PA1-745
Alternator assy
|
31100-PA1-745 |
— | ||
|
2
|
2
31110-PA1-742 BeltALTERNATOR (BANDO) |
31110-PA1-742 |
US $16.26 |
||
|
2
|
2
31110-PA1-741 BeltALTERNATOR (MITSUBOSHI) |
31110-PA1-741 |
US $16.26 |
||
|
3
|
3
31112-PA1-740
Bracket
|
31112-PA1-740 |
— | ||
|
4
|
4
31113-PA1-740
Stay
|
31113-PA1-740 |
— | ||
|
6
|
6
31200-PC0-891 Motor assy.STARTER (DR4FM 1.0KW) (DENSO) 3000001 - |
31200-PC0-891 |
US $707.84 |
||
|
7
|
7
32745-PA6-660 Clamp eENGINE WIRE HARNESS 3000001 - |
32745-PA6-660 |
US $4.76 |
||
|
8
|
8
35600-PA5-013
Switch assy
3000001 - |
35600-PA5-013 |
— | ||
|
9
|
9
37240-657-013 SwitchOIL PRESSURE (DENSO) |
37240-657-013 |
US $44.46 |
||
| replacement | |||||
|
9
|
9
37240-P13-013 Switch assyOIL PRESSURE (DENSO) |
37240-P13-013 |
from US $20.67 |
||
|
10
|
10
37750-611-154 Sending unitWATER TEMPERATURE (DENSO) |
37750-611-154 |
US $51.71 |
||
|
11
|
11
90002-PA6-003 Bolt-washer4X8 (DENSO) |
90002-PA6-003 |
from US $1.68 |
||
|
12
|
12
90057-671-000 BoltALTERNATOR |
90057-671-000 |
from US $6.51 |
||
|
13
|
13
90430-657-000 Washer23X8.3X3.2 |
90430-657-000 |
US $9.33 |
||
|
14
|
14
90438-611-010
Washer
|
90438-611-010 |
— | ||
|
15
|
15
91307-611-000 O-ring13.5X1.4 |
91307-611-000 |
from US $1.55 |
||
| replacement | |||||
|
15
|
15
91307-PH7-660 O-ring13.5X1.4 |
91307-PH7-660 |
from US $2.44 |
||
|
16
|
16
91404-PA1-000
Clip
|
91404-PA1-000 |
— | ||
|
17
|
17
92000-08022-0H BoltHEX., 8X22 |
92000-08022-0H |
US $0.59 |
||
|
18
|
18
94001-100-800-S NutHEX., 10MM |
94001-100-800-S |
from US $0.52 |
||
|
20
|
20
94109-14000 WASHER, DRAIN PLUG (14MM)DRAIN PLUG WASHER, 14MM |
94109-14000 |
from US $0.38 |
||
|
21
|
21
94111-08800 WasherSPRING, 8MM |
94111-08800 |
from US $0.37 |
||
|
22
|
22
94111-10800 WasherSPRING, 10MM |
94111-10800 |
from US $0.44 |
||
|
23
|
23
95700-060-140-8 BoltFLANGE, 6X14 |
95700-060-140-8 |
from US $0.52 |
||
| replacement | |||||
|
23
|
23
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
|
24
|
24
95700-080-250-8 BoltFLANGE, 8X25 |
95700-080-250-8 |
from US $0.70 |
||
| replacement | |||||
|
24
|
24
95701-080-250-8 BoltFLANGE, 8X25 |
95701-080-250-8 |
from US $0.74 |
||
|
25
|
25
95700-101-000-8 BoltFLANGE, 10X100 |
95700-101-000-8 |
from US $1.48 |
||
| replacement | |||||
|
25
|
25
95701-101-000-8 BoltFLANGE, 10X100 |
95701-101-000-8 |
from US $0.74 |
||
|
26
|
26
95700-101-250-8 BoltFLANGE, 10X125 |
95700-101-250-8 |
US $1.85 |
||
|
27
|
27
95800-100-350-8 BoltFLANGE, 10X35 |
95800-100-350-8 |
from US $0.81 |
||
| replacement | |||||
|
27
|
27
95801-100-350-8 BoltFLANGE, 10X35 |
95801-100-350-8 |
from US $0.98 |
||
