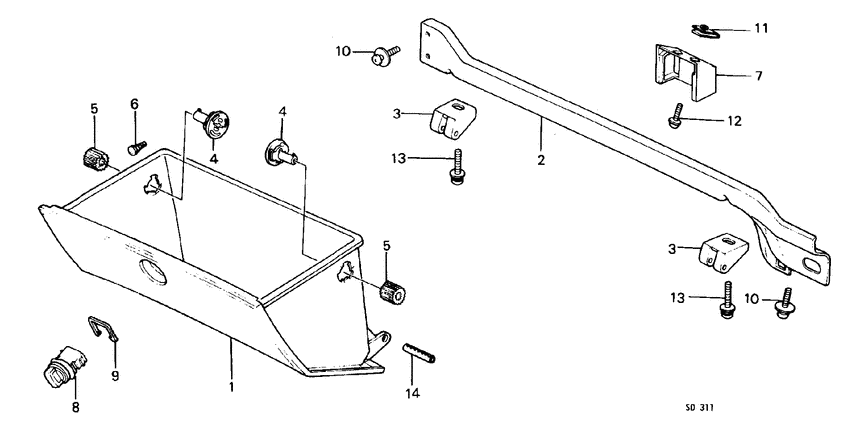

Glove box Diagram Honda CIVIC
- Year
- 1983
- Model code
- CIVIC
- Sales region
- General
- Engine
- EN4
- transmission
- 5MT
- Number of doors
- 3
- grade
- S
- area code
- KB
- sunroof
- +
- rear wiper
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
66401-SA0-660ZB
Box comp
|
66401-SA0-660ZB |
— | ||
|
2
|
2
66402-SA0-660
Frame
|
66402-SA0-660 |
— | ||
|
3
|
3
66405-693-000
Stay
|
66405-693-000 |
— | ||
|
4
|
4
66406-SA0-000
Stopper
|
66406-SA0-000 |
— | ||
|
5
|
5
66417-SA0-000 RubberGLOVE BOX STOPPER |
66417-SA0-000 |
US $3.22 |
||
|
6
|
6
66418-579-000 StopperGLOVE BOX LID |
66418-579-000 |
US $8.40 |
||
|
7
|
7
66430-SA0-660
Striker
|
66430-SA0-660 |
— | ||
|
8
|
8
66450-689-000
Lock assy
|
66450-689-000 |
— | ||
|
9
|
9
66451-692-661
Clip
|
66451-692-661 |
— | ||
|
10
|
10
90103-SA4-000
Screw-washer
|
90103-SA4-000 |
— | ||
|
11
|
11
90305-SA0-000 NutFLOATING, 4MM |
90305-SA0-000 |
from US $3.56 |
||
|
12
|
12
93891-040-160-8 Screw-washer4X16 |
93891-040-160-8 |
from US $0.44 |
||
|
13
|
13
93894-050-200-8 Screw-washer5X20 |
93894-050-200-8 |
from US $0.44 |
||
|
14
|
14
94305-40222 PinSPRING, 4X22 |
94305-40222 |
from US $0.89 |
