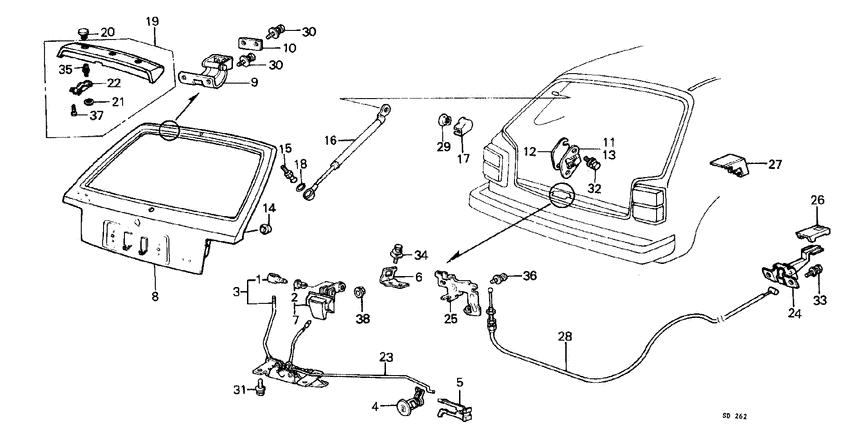

Tailgate (3D,5D) Diagram Honda CIVIC
- Year
- 1983
- Model code
- CIVIC
- Sales region
- General
- Engine
- EN4
- transmission
- 5MT
- Number of doors
- 3
- grade
- S
- area code
- KB
- sunroof
- +
- rear wiper
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75411-634-000 Joint |
75411-634-000 |
US $2.52 |
||
|
2
|
2
75612-611-000 BushOUTSIDE HANDLE JOINT |
75612-611-000 |
US $3.01 |
||
|
3
|
3
83300-SA0-043
Lock assy
|
83300-SA0-043 |
— | ||
|
4
|
4
83303-SA0-732
Cylinder
0S300001 - |
83303-SA0-732 |
— | ||
|
5
|
5
83304-SA0-010
Spring
|
83304-SA0-010 |
— | ||
|
6
|
6
83305-SA0-013
Striker
|
83305-SA0-013 |
— | ||
|
7
|
7
83307-SA0-033
Handle assy
0S300001 - |
83307-SA0-033 |
— | ||
|
8
|
8
85210-SA0-741ZZ
Tailgate comp.
0S300001 - |
85210-SA0-741ZZ |
— | ||
|
9
|
9
85250-SA0-010ZZ
Hinge comp
|
85250-SA0-010ZZ |
— | ||
|
10
|
10
85259-SA0-000
Shim
|
85259-SA0-000 |
— | ||
|
11
|
11
85260-SA2-000
Cushion
|
85260-SA2-000 |
— | ||
|
12
|
12
85263-SA2-000
Shim
|
85263-SA2-000 |
— | ||
|
13
|
13
85265-SA2-000
Cushion
|
85265-SA2-000 |
— | ||
|
14
|
14
85267-671-000 CushionTAILGATE |
85267-671-000 |
US $4.06 |
||
|
15
|
15
85269-SA0-013
Stud
|
85269-SA0-013 |
— | ||
|
16
|
16
85270-SA0-053
Stay assy
0S300001 - |
85270-SA0-053 |
— | ||
|
17
|
17
85277-SA0-020
Cover
|
85277-SA0-020 |
— | ||
|
18
|
18
85279-SA0-003
Clip
|
85279-SA0-003 |
— | ||
|
19
|
19
85290-SA0-730
Spoiler assy.
|
85290-SA0-730 |
— | ||
|
20
|
20
85291-SA0-731
Cap
0S300001 - |
85291-SA0-731 |
— | ||
|
21
|
21
85292-SA0-730
Rubber
|
85292-SA0-730 |
— | ||
|
22
|
22
85293-SA0-730
Bracket
|
85293-SA0-730 |
— | ||
|
23
|
23
85511-SA0-033
Rod
|
85511-SA0-033 |
— | ||
|
24
|
24
85512-SA0-003
Opener
|
85512-SA0-003 |
— | ||
|
25
|
25
85513-SA0-013
Link
|
85513-SA0-013 |
— | ||
|
26
|
26
85514-SA0-013ZE
Knob
|
85514-SA0-013ZE |
— | ||
|
27
|
27
85515-SA0-000ZK
Lid
|
85515-SA0-000ZK |
— | ||
|
27
|
27
85515-SA0-000ZL
Lid
|
85515-SA0-000ZL |
— | ||
|
27
|
27
85515-SA0-000ZN
Lid
|
85515-SA0-000ZN |
— | ||
|
27
|
27
85515-SA0-000ZD
Lid
|
85515-SA0-000ZD |
— | ||
|
28
|
28
85525-SA0-660
Cable
|
85525-SA0-660 |
— | ||
|
29
|
29
90115-659-003 NutSELF-LOCK, 8MM (CLINCH) |
90115-659-003 |
from US $1.05 |
||
|
30
|
30
90129-SA0-000
Bolt
|
90129-SA0-000 |
— | ||
|
31
|
31
93492-060-120-8 Bolt-washer6X12 |
93492-060-120-8 |
from US $0.52 |
||
| replacement | |||||
|
31
|
31
93402-060-120-8 Bolt-washer6X12 |
93402-060-120-8 |
from US $0.52 |
||
|
32
|
32
93493-060-120-8 Bolt-washer6X12 |
93493-060-120-8 |
from US $0.59 |
||
| replacement | |||||
|
32
|
32
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
33
|
33
93493-060-160-0 Bolt-washer6X16 |
93493-060-160-0 |
from US $0.59 |
||
| replacements | |||||
|
33
|
33
93413-0601600 Bolt-washer (6x16) |
93413-0601600 |
from US $0.59 |
||
|
33
|
33
93403-060-160-0 Bolt-washer6X16 |
93403-060-160-0 |
from US $0.59 |
||
|
34
|
34
93495-060-160-8 Bolt-washer6X16 |
93495-060-160-8 |
US $1.63 |
||
| replacement | |||||
|
34
|
34
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
35
|
35
93891-060-160-7 Screw-washer6X16 |
93891-060-160-7 |
from US $0.52 |
||
|
36
|
36
93893-050-120-8 Screw-washer5X12 |
93893-050-120-8 |
from US $0.52 |
||
|
37
|
37
93903-24380 ScrewTAPPING, 4X12 0S300001 - |
93903-24380 |
from US $0.37 |
||
|
38
|
38
94050-05080 NutFLANGE, 5MM |
94050-05080 |
from US $0.44 |
||
