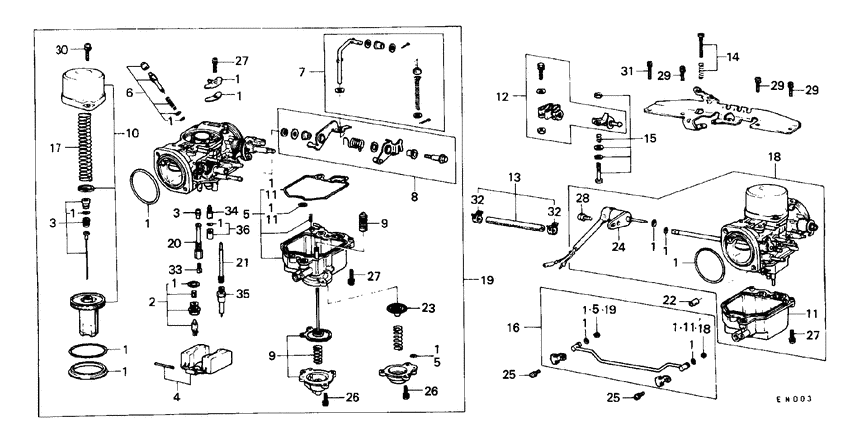

Carburetor comp Diagram Honda CIVIC
- Year
- 1983
- Model code
- CIVIC
- Sales region
- General
- Engine
- EN4
- transmission
- 5MT
- Number of doors
- 3
- grade
- S
- area code
- KE
- right-hand drive
- +
- rear fog light
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-PB9-005
Gasket set
|
16010-PB9-005 |
— | ||
|
2
|
2
16011-PB9-781
Valve set
3000001 - |
16011-PB9-781 |
— | ||
|
3
|
3
16012-PB9-005
Needle Set
|
16012-PB9-005 |
— | ||
|
4
|
4
16013-PB9-005 Float set |
16013-PB9-005 |
US $48.42 |
||
|
5
|
5
16015-PB9-005
Chamber set
|
16015-PB9-005 |
— | ||
|
6
|
6
16016-PB9-005
Screw set a
|
16016-PB9-005 |
— | ||
|
7
|
7
16019-PB9-005
Rod set
|
16019-PB9-005 |
— | ||
|
8
|
8
16020-PB9-005
Arm set
|
16020-PB9-005 |
— | ||
|
9
|
9
16021-PB9-781
Diaphragm set
3000001 - |
16021-PB9-781 |
— | ||
|
10
|
10
16022-PB9-005
Piston set
|
16022-PB9-005 |
— | ||
|
11
|
11
16023-PB9-005
Chamber set
|
16023-PB9-005 |
— | ||
|
12
|
12
16025-PB9-005
Joint set
|
16025-PB9-005 |
— | ||
|
13
|
13
16026-PB9-005
Joint set
|
16026-PB9-005 |
— | ||
|
14
|
14
16028-679-005
Screw set b
|
16028-679-005 |
— | ||
|
15
|
15
16029-413-004
Screw set c
|
16029-413-004 |
— | ||
| replacement | |||||
|
15
|
15
16029-PC6-005
Screw set
|
16029-PC6-005 |
— | ||
|
16
|
16
16042-PB9-005
Joint set
|
16042-PB9-005 |
— | ||
|
17
|
17
16050-443-701
Spring
|
16050-443-701 |
— | ||
|
18
|
18
16101-PB9-015
Carburetor assy.
3000001 - |
16101-PB9-015 |
— | ||
|
19
|
19
16102-PB9-015
Carburetor assy.
3000001 - |
16102-PB9-015 |
— | ||
|
20
|
20
16165-PB9-005
Holder
|
16165-PB9-005 |
— | ||
|
21
|
21
16166-PB9-005
Nozzle
|
16166-PB9-005 |
— | ||
|
22
|
22
16178-463-004
Pin
|
16178-463-004 |
— | ||
|
23
|
23
16191-PC2-005
Diaphragm comp
3000001 - |
16191-PC2-005 |
— | ||
|
24
|
24
16230-679-015
Valve
|
16230-679-015 |
— | ||
|
25
|
25
93892-040-080-8 Screw-washer4X8 |
93892-040-080-8 |
from US $0.49 |
||
|
26
|
26
93892-040-120-8 Screw-washer4X12 |
93892-040-120-8 |
from US $0.49 |
||
|
27
|
27
93892-040-160-8 Screw-washer4X16 |
93892-040-160-8 |
from US $0.44 |
||
|
28
|
28
93892-050-120-8 Screw-washer5X12 |
93892-050-120-8 |
from US $0.44 |
||
|
29
|
29
93892-050-140-8 Screw-washer5X14 |
93892-050-140-8 |
from US $0.47 |
||
|
30
|
30
93892-050-160-8 Screw-washer5X16 |
93892-050-160-8 |
from US $0.44 |
||
|
31
|
31
93892-050-200-8 Screw-washer5X20 |
93892-050-200-8 |
from US $0.47 |
||
|
32
|
32
95002-410-500-8 ClampTUBE(D10.5) |
95002-410-500-8 |
from US $0.74 |
||
|
33
|
33
99101-393-1650 JetMAIN, #165 3000001 - |
99101-393-1650 |
from US $4.44 |
||
| replacement | |||||
|
33
|
33
99101-GHB1650 Jet (#165)3000001 - |
99101-GHB1650 |
from US $5.33 |
||
|
34
|
34
99103-PB9-0380
Jet
|
99103-PB9-0380 |
— | ||
|
35
|
35
99112-PB9-0450
Jet
3000001 - |
99112-PB9-0450 |
— | ||
|
36
|
36
99201-663-085-0
Jet set
|
99201-663-085-0 |
— | ||
