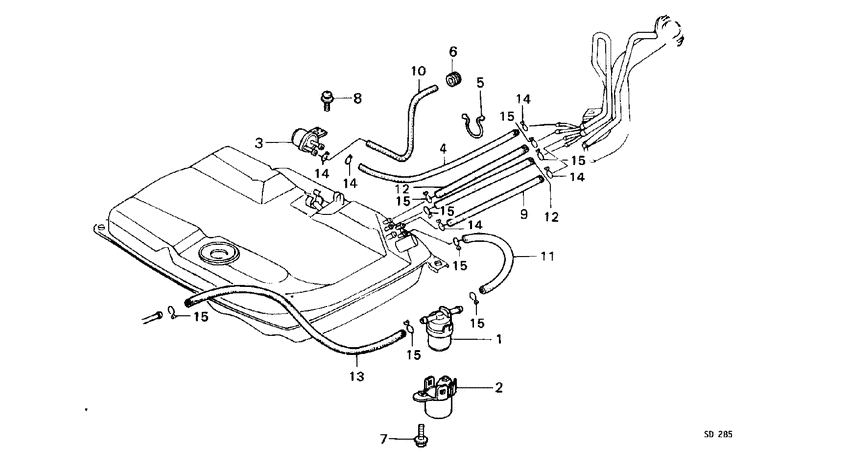

Fuel strainer (3D,4D,5D) Diagram Honda CIVIC
- Year
- 1983
- Model code
- CIVIC
- Sales region
- General
- Engine
- EN1
- transmission
- 5MT
- Number of doors
- 3
- grade
- DX
- area code
- KF
- yellow bulb
- +
- air conditioner (dealer set)
- +
- rear wiper
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16900-SA0-901
Strainer comp.
|
16900-SA0-901 |
— | ||
|
2
|
2
16902-SE0-000
Cover
|
16902-SE0-000 |
— | ||
|
3
|
3
17371-SA0-661
Valve
|
17371-SA0-661 |
— | ||
|
4
|
4
17372-SA0-000
Tube
|
17372-SA0-000 |
— | ||
|
5
|
5
17916-PA6-003
Clip
|
17916-PA6-003 |
— | ||
|
6
|
6
90854-SA0-680
Grommet
|
90854-SA0-680 |
— | ||
|
7
|
7
93495-060-160-8 Bolt-washer6X16 |
93495-060-160-8 |
US $1.63 |
||
| replacement | |||||
|
7
|
7
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
8
|
8
93893-050-120-8 Screw-washer5X12 |
93893-050-120-8 |
from US $0.52 |
||
|
9
|
9
95001-452-603-0 TubeFUEL, 4.5X260 (95001-45001-60M) |
95001-452-603-0 |
US $2.66 |
||
|
10
|
10
95001-453-703-0
Tube
0S300001 - |
95001-453-703-0 |
— | ||
|
11
|
11
95001-552-053-0
Tube
|
95001-552-053-0 |
— | ||
|
12
|
12
95001-552-603-0
Tube
|
95001-552-603-0 |
— | ||
|
13
|
13
95001-553-003-0
Tube
0S300001 - |
95001-553-003-0 |
— | ||
|
14
|
14
95002-02084 ClipTUBE (B8) 0S300001 - |
95002-02084 |
from US $0.44 |
||
|
15
|
15
95002-02104 ClipTUBE (B10) 0S300001 - |
95002-02104 |
US $0.52 |
||
