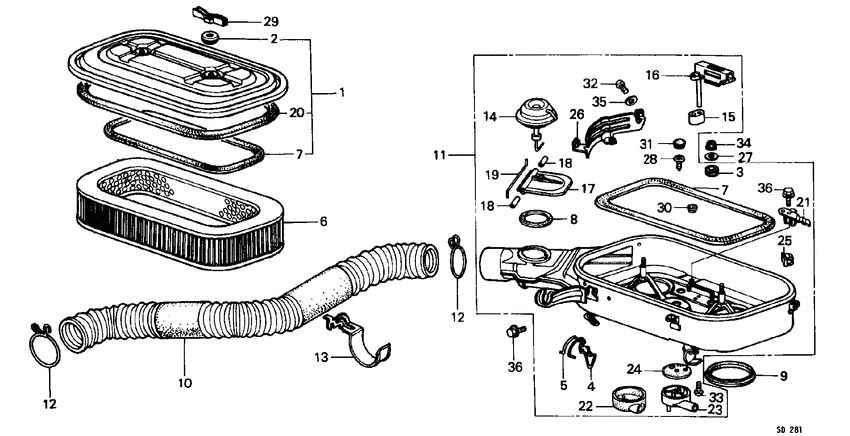

Air cleaner (S) Diagram Honda CIVIC
- Year
- 1982
- Model code
- CIVIC
- Sales region
- General
- Engine
- EN4
- transmission
- 5MT
- Number of doors
- 3
- grade
- S
- area code
- KG
- sunroof
- +
- air conditioner (dealer set)
- +
- rear wiper
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17210-PB9-000 Cover comp.AIR CLEANER 00000000 - 0S300000 |
17210-PB9-000 |
US $57.86 |
||
|
2
|
2
17212-PA0-000
Washer
|
17212-PA0-000 |
— | ||
| replacement | |||||
|
2
|
2
17212-PC0-000
Washer
|
17212-PC0-000 |
— | ||
|
3
|
3
17213-PA0-000
Rubber
|
17213-PA0-000 |
— | ||
|
4
|
4
17216-671-000
Clip A
|
17216-671-000 |
— | ||
|
5
|
5
17217-634-670
Clip b
00000000 - 0S300000 |
17217-634-670 |
— | ||
|
6
|
6
17220-PB9-003 ElementAIR CLEANER 00000000 - 0S300000 |
17220-PB9-003 |
US $22.40 |
||
|
7
|
7
17221-PB9-300 PackingELEMENT 00000000 - 0S300000 |
17221-PB9-300 |
US $13.95 |
||
|
8
|
8
17222-657-300
Seal
|
17222-657-300 |
— | ||
|
9
|
9
17226-PB9-000
Insulator
|
17226-PB9-000 |
— | ||
|
10
|
10
17242-PA1-641
Pipe
|
17242-PA1-641 |
— | ||
|
10
|
10
17232-PB9-003 PipeAIR INTAKE |
17232-PB9-003 |
US $65.28 |
||
|
11
|
11
17240-PB9-010 Case assy.AIR CLEANER 00000000 - 0S300000 |
17240-PB9-010 |
US $277.76 |
||
|
12
|
12
17243-671-000 ClipAIR INTAKE TUBE |
17243-671-000 |
US $3.22 |
||
|
13
|
13
17244-PA0-000
Clamp
|
17244-PA0-000 |
— | ||
|
14
|
14
17245-657-013 DiaphragmCONTROL VALVE |
17245-657-013 |
US $37.38 |
||
|
15
|
15
17247-689-000
Insulator
|
17247-689-000 |
— | ||
|
16
|
16
17250-PA0-003 Sensor compAIR IN. |
17250-PA0-003 |
US $53.25 |
||
|
17
|
17
17251-PB9-000
Valve comp.
|
17251-PB9-000 |
— | ||
|
18
|
18
17253-689-300 PlugCONTROL VALVE |
17253-689-300 |
US $3.15 |
||
|
19
|
19
17257-PB9-010
Pin
|
17257-PB9-010 |
— | ||
|
20
|
20
17258-PB9-300
Packing
|
17258-PB9-300 |
— | ||
|
23
|
23
17271-PB9-010
Chamber
|
17271-PB9-010 |
— | ||
|
24
|
24
17272-PB9-000
Packing
|
17272-PB9-000 |
— | ||
|
26
|
26
17415-PB9-000
Plate
|
17415-PB9-000 |
— | ||
|
27
|
27
77302-124-000 WasherSEAT MOUNTING |
77302-124-000 |
from US $2 |
||
|
28
|
28
90070-PA5-660
Screw
|
90070-PA5-660 |
— | ||
|
29
|
29
90203-PB2-000 NutAIR CLEANER COVER (DACRO COATING) |
90203-PB2-000 |
from US $2.17 |
||
|
30
|
30
90808-PB9-000
Plug
|
90808-PB9-000 |
— | ||
|
31
|
31
90809-PB9-000
Plug
|
90809-PB9-000 |
— | ||
|
32
|
32
93500-040-060-H ScrewPAN, 4X6 |
93500-040-060-H |
from US $0.18 |
||
|
33
|
33
93500-040-200-H ScrewPAN, 4X20 |
93500-040-200-H |
from US $0.37 |
||
|
34
|
34
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
35
|
35
94101-04800 WasherPLAIN, 4MM |
94101-04800 |
from US $0.37 |
||
|
36
|
36
95700-060-100-8 BoltFLANGE, 6X10 |
95700-060-100-8 |
US $24.80 |
||
| replacement | |||||
|
36
|
36
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
