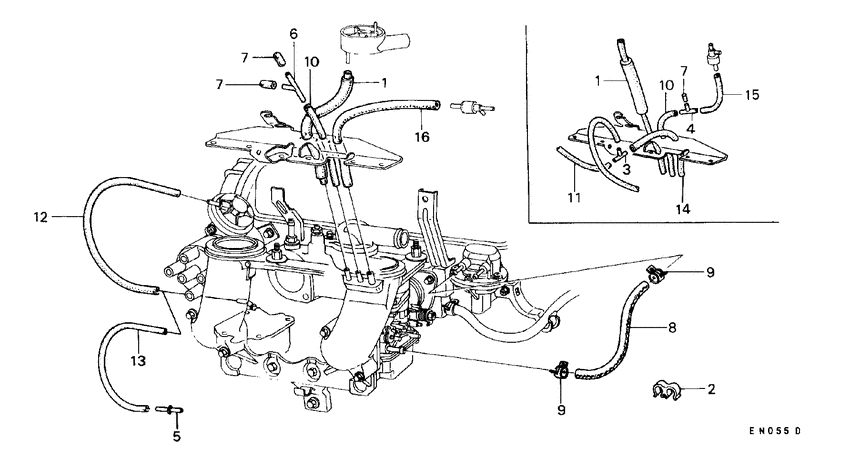

Fuel tubing (2) Diagram Honda CIVIC
- Year
- 1982
- Model code
- CIVIC
- Sales region
- General
- Engine
- EN4
- transmission
- 5MT
- Number of doors
- 3
- grade
- S
- area code
- KG
- sunroof
- +
- air conditioner (dealer set)
- +
- rear wiper
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15720-PB9-000
Tube assy
|
15720-PB9-000 |
— | ||
|
2
|
2
17265-PB9-000
Clamp
|
17265-PB9-000 |
— | ||
|
6
|
6
38773-PB9-000 JointTHREE WAY (3.5) |
38773-PB9-000 |
US $10.81 |
||
| replacement | |||||
|
6
|
6
36010-PA6-004 JointTHREE WAY |
36010-PA6-004 |
from US $6.51 |
||
|
7
|
7
90634-PA0-000 CapSEALING |
90634-PA0-000 |
from US $1.86 |
||
|
8
|
8
95001-551-852-0
Hose
|
95001-551-852-0 |
— | ||
|
9
|
9
95002-410-500-4 ClampTUBE (D10.5) |
95002-410-500-4 |
from US $0.74 |
||
|
10
|
10
95005-350-701-2 Tube3.5X70 (95005-35001-10M) |
95005-350-701-2 |
US $1.18 |
||
|
12
|
12
95005-352-601-2 Tube3.5X260 (95005-35001-10M) |
95005-352-601-2 |
US $3.26 |
||
|
16
|
16
95005-451-901-3 Tube4.5X190 (95005-45001-10M) |
95005-451-901-3 |
US $3.26 |
||
