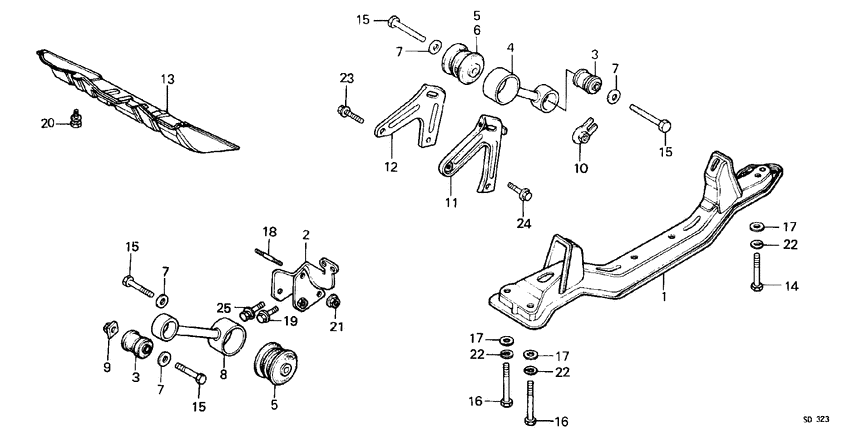

Torque rod/front beam Diagram Honda CIVIC
- Year
- 1983
- Model code
- CIVIC
- Sales region
- General
- Engine
- EN4
- transmission
- 5MT
- Number of doors
- 3
- grade
- S
- area code
- KG
- sunroof
- +
- rear wiper
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50100-SA0-040 BeamCENTER 0S300001 - |
50100-SA0-040 |
US $295.68 |
||
|
2
|
2
50820-SA0-020
Bracket
|
50820-SA0-020 |
— | ||
|
3
|
3
50834-SA0-010 Insulator aTORQUE ROD |
50834-SA0-010 |
US $17.54 |
||
|
4
|
4
50835-SA0-000
Rod
|
50835-SA0-000 |
— | ||
|
5
|
5
50836-SA0-010
Insulator b
|
50836-SA0-010 |
— | ||
|
7
|
7
50837-692-010
Washer
|
50837-692-010 |
— | ||
|
8
|
8
50838-SA0-000
Rod
|
50838-SA0-000 |
— | ||
|
9
|
9
50839-SA0-000
Nut
|
50839-SA0-000 |
— | ||
|
10
|
10
50839-692-000
Nut
|
50839-692-000 |
— | ||
|
11
|
11
50841-SA0-000
Bracket
|
50841-SA0-000 |
— | ||
|
12
|
12
50842-SA0-000
Bracket
|
50842-SA0-000 |
— | ||
|
13
|
13
60871-SA0-000
Guard
0S300001 - |
60871-SA0-000 |
— | ||
|
14
|
14
90122-679-000
Bolt
|
90122-679-000 |
— | ||
|
15
|
15
90131-692-000
Bolt
|
90131-692-000 |
— | ||
|
16
|
16
90160-SA0-020
Bolt
|
90160-SA0-020 |
— | ||
|
17
|
17
90504-SA0-000 WasherPLAIN, 10MM |
90504-SA0-000 |
US $9.37 |
||
|
18
|
18
92715-10040 BoltSTUD, 10X40 |
92715-10040 |
from US $0.81 |
||
| replacement | |||||
|
18
|
18
92715-10040-0B
Bolt,stud,10x40
|
92715-10040-0B |
— | ||
|
19
|
19
93492-100-320-8 Bolt-washer10X32 |
93492-100-320-8 |
US $0.81 |
||
|
20
|
20
93495-060-120-8 Bolt-washer6X12 0S300001 - |
93495-060-120-8 |
US $0.59 |
||
|
21
|
21
94050-10080 NutFLANGE, 10MM |
94050-10080 |
from US $0.74 |
||
|
22
|
22
94111-10800 WasherSPRING, 10MM |
94111-10800 |
from US $0.44 |
||
|
23
|
23
95700-100-600-8 BoltFLANGE, 10X60 |
95700-100-600-8 |
US $0.89 |
||
|
24
|
24
90129-692-000
Bolt
|
90129-692-000 |
— | ||
|
25
|
25
95822-100-250-8 BoltFLANGE, 10X25 |
95822-100-250-8 |
US $0.81 |
||
