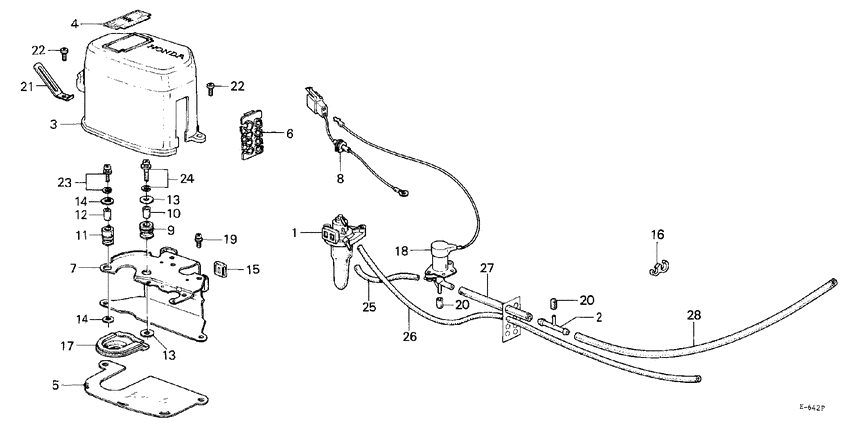

Control box Diagram Honda CIVIC
- Year
- 1983
- Model code
- CIVIC
- Sales region
- General
- Engine
- EN1
- transmission
- 5MT
- Number of doors
- 3
- grade
- STD
- area code
- KQ
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16300-PA1-014
Valve
|
16300-PA1-014 |
— | ||
|
2
|
2
17205-PA0-000
Joint
|
17205-PA0-000 |
— | ||
|
3
|
3
36020-PA0-004
Cover
|
36020-PA0-004 |
— | ||
|
4
|
4
36022-PA1-733
Label
2000001 - |
36022-PA1-733 |
— | ||
|
5
|
5
36023-PA0-004
Plate
|
36023-PA0-004 |
— | ||
|
6
|
6
36024-PA1-732 HolderTUBE |
36024-PA1-732 |
US $9.38 |
||
|
7
|
7
36030-PA6-731
Base
|
36030-PA6-731 |
— | ||
|
8
|
8
36041-665-731
Cord assy
2000001 - |
36041-665-731 |
— | ||
|
9
|
9
36051-657-300
Rubber
|
36051-657-300 |
— | ||
|
10
|
10
36052-657-300 CollarCONTROL VALVE |
36052-657-300 |
US $6 |
||
|
11
|
11
36053-657-003
Rubber b
|
36053-657-003 |
— | ||
|
12
|
12
36054-657-003
Collar b
|
36054-657-003 |
— | ||
|
13
|
13
36055-657-003
Washer a
|
36055-657-003 |
— | ||
|
14
|
14
36056-657-003
Washer b
|
36056-657-003 |
— | ||
|
15
|
15
36058-PA0-004
Rubber
|
36058-PA0-004 |
— | ||
|
16
|
16
36061-671-000
Clamp a
|
36061-671-000 |
— | ||
|
17
|
17
36067-PA0-004
Cap
|
36067-PA0-004 |
— | ||
|
18
|
18
36130-PA6-732
Valve assy.
|
36130-PA6-732 |
— | ||
|
19
|
19
90092-657-000 Screw-washer5X8 |
90092-657-000 |
from US $1.32 |
||
|
20
|
20
90634-PA0-000 CapSEALING |
90634-PA0-000 |
from US $1.86 |
||
|
21
|
21
90648-PA6-000
Clip
|
90648-PA6-000 |
— | ||
|
22
|
22
93500-050-121-H ScrewPAN, 5X12 |
93500-050-121-H |
from US $0.37 |
||
| replacement | |||||
|
22
|
22
93500-050-120-H ScrewPAN, 5X12 |
93500-050-120-H |
from US $0.37 |
||
|
23
|
23
93892-040-221-8 Screw-washer4X22 |
93892-040-221-8 |
US $0.44 |
||
|
24
|
24
93892-060-281-8 Screw-washer6X28 |
93892-060-281-8 |
US $0.59 |
||
|
25
|
25
95005-350-551-0 Tube3.5X55(95005-35001-10M) |
95005-350-551-0 |
US $1.18 |
||
|
26
|
26
95005-353-351-6 Tube3.5X335 (95005-35001-10M) |
95005-353-351-6 |
US $3.85 |
||
|
27
|
27
95005-550-551-0 Tube5.3X55 (95005-55001-10M) |
95005-550-551-0 |
US $2.37 |
||
|
28
|
28
95005-553-851-1 Tube5.3X385 (95005-55001-10M) |
95005-553-851-1 |
US $8.29 |
||
