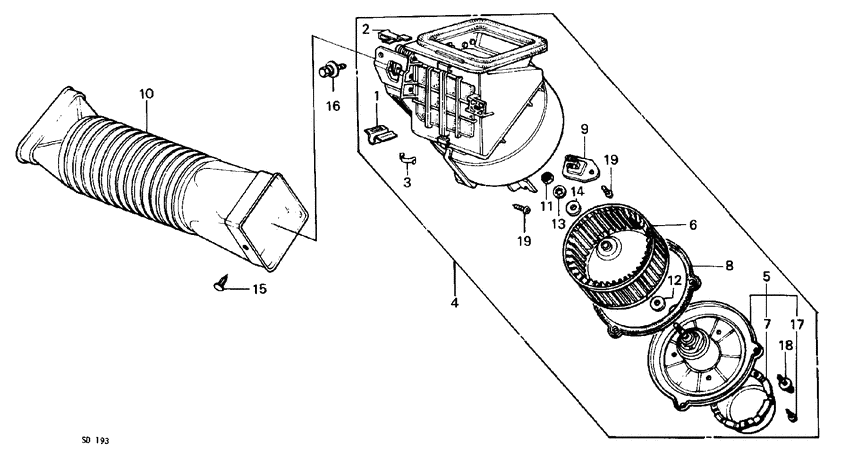

Heater blower Diagram Honda CIVIC
- Year
- 1982
- Model code
- CIVIC
- Sales region
- General
- Engine
- EN1
- transmission
- 5MT
- Number of doors
- 4
- grade
- STD
- area code
- KU
- right-hand drive
- +
- rear fog light
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39227-671-000
Clamp
|
39227-671-000 |
— | ||
|
3
|
3
39246-671-003
Clamp
|
39246-671-003 |
— | ||
|
4
|
4
39410-SA0-023
Blower assy
|
39410-SA0-023 |
— | ||
|
5
|
5
39430-SA0-003 Motor compBLOWER |
39430-SA0-003 |
US $313.60 |
||
|
6
|
6
39436-692-003
Fan
|
39436-692-003 |
— | ||
|
8
|
8
39443-692-003
Packing
|
39443-692-003 |
— | ||
|
9
|
9
39473-SA0-003
Resistor
|
39473-SA0-003 |
— | ||
|
10
|
10
39480-692-023
Duct
|
39480-692-023 |
— | ||
|
11
|
11
90302-671-003
Nut
00000000 - 0S207663 |
90302-671-003 |
— | ||
|
11
|
11
90307-SA0-003 NutFLANGE, 5MM 0S207664 - |
90307-SA0-003 |
US $2.31 |
||
|
12
|
12
90501-671-003 WasherSPECIAL |
90501-671-003 |
US $7.33 |
||
|
13
|
13
90502-671-003
Washer
00000000 - 0S207663 |
90502-671-003 |
— | ||
|
14
|
14
90503-671-003
Washer
00000000 - 0S207663 |
90503-671-003 |
— | ||
|
15
|
15
90666-SA0-003ZD ClipTRIM, 5MM *NH1L* |
90666-SA0-003ZD |
US $2.25 |
||
|
16
|
16
93495-060-160-8 Bolt-washer6X16 |
93495-060-160-8 |
US $1.63 |
||
| replacement | |||||
|
16
|
16
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
17
|
17
93901-24220 ScrewTAPPING, 4X10 |
93901-24220 |
from US $0.37 |
||
|
18
|
18
93901-35380 ScrewTAPPING, 5X16 |
93901-35380 |
from US $0.37 |
||
|
19
|
19
93903-34320 ScrewTAPPING, 4X12 |
93903-34320 |
from US $0.37 |
||
