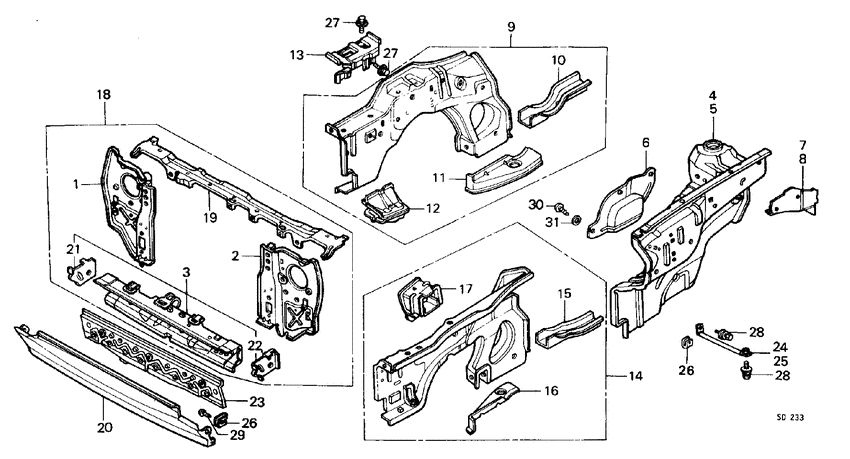

Body structure components Diagram Honda CIVIC
- Year
- 1982
- Model code
- CIVIC
- Sales region
- General
- Engine
- EN1
- transmission
- 3AT
- Number of doors
- 4
- grade
- STD
- area code
- KU
- right-hand drive
- +
- rear fog light
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
04601-SA0-310ZZ Panel setR. FR. BULKHEAD 00000000 - 0S209345 |
04601-SA0-310ZZ |
US $139.52 |
||
|
2
|
2
04611-SA0-310ZZ Panel setL. FR. BULKHEAD 00000000 - 0S209345 |
04611-SA0-310ZZ |
US $139.52 |
||
|
3
|
3
04631-SA0-663ZZ Panel setFR. BULKHEAD 00000000 - 0S209345 |
04631-SA0-663ZZ |
US $325.12 |
||
|
3
|
3
04631-SA0-664ZZ Panel setFR. BULKHEAD 0S209346 - 0S299999 |
04631-SA0-664ZZ |
US $325.12 |
||
|
4
|
4
04641-SA0-310ZZ Panel setR. FR. WHEELHOUSE 00000000 - 0S299999 |
04641-SA0-310ZZ |
US $441.60 |
||
|
5
|
5
04651-SA0-310ZZ Panel setL. FR. WHEELHOUSE |
04651-SA0-310ZZ |
US $394.24 |
||
|
6
|
6
60541-SA0-000ZZ
Guard
|
60541-SA0-000ZZ |
— | ||
|
7
|
7
60673-SA0-300ZZ
Extension
|
60673-SA0-300ZZ |
— | ||
|
8
|
8
60683-SA0-300ZZ
Extension
|
60683-SA0-300ZZ |
— | ||
|
9
|
9
60710-SA0-320ZZ
Frame comp
00000000 - 0S207556 |
60710-SA0-320ZZ |
— | ||
|
10
|
10
60713-SA0-300ZZ
Frame
|
60713-SA0-300ZZ |
— | ||
|
11
|
11
60716-SA0-300ZZ
Gusset
|
60716-SA0-300ZZ |
— | ||
|
12
|
12
60720-SA0-310ZZ
Bracket comp.
|
60720-SA0-310ZZ |
— | ||
|
13
|
13
60721-SA0-000ZZ BaseBATTERY SETTING 00000000 - 0S207556 |
60721-SA0-000ZZ |
US $44.93 |
||
|
14
|
14
60740-SA0-320ZZ
Frame comp
|
60740-SA0-320ZZ |
— | ||
|
15
|
15
60743-SA0-300ZZ
Frame
|
60743-SA0-300ZZ |
— | ||
|
16
|
16
60746-SA0-300ZZ
Gusset
|
60746-SA0-300ZZ |
— | ||
|
17
|
17
60770-SA0-310ZZ
Bracket comp.
|
60770-SA0-310ZZ |
— | ||
|
18
|
18
60810-SA0-621ZZ Bulkhead comp.FR. 00000000 - 0S209345 |
60810-SA0-621ZZ |
US $527.36 |
||
|
18
|
18
60810-SA0-624ZZ Bulkhead comp.FR. 0S209346 - 0S299999 |
60810-SA0-624ZZ |
US $480 |
||
|
19
|
19
60841-SA0-320ZZ FrameBULKHEAD UPPER |
60841-SA0-320ZZ |
US $124.80 |
||
|
20
|
20
60851-SA0-010ZZ
Skirt
|
60851-SA0-010ZZ |
— | ||
|
21
|
21
60865-SA0-662ZZ BracketR. SIDE CROSS MEMBER 00000000 - 0S299999 |
60865-SA0-662ZZ |
US $24.06 |
||
|
22
|
22
60866-SA0-662ZZ BracketL. SIDE CROSS MEMBER 00000000 - 0S299999 |
60866-SA0-662ZZ |
US $24.06 |
||
|
23
|
23
60869-SA0-310ZZ PlateCROSSMEMBER FACE 00000000 - 0S299999 |
60869-SA0-310ZZ |
US $42.88 |
||
|
24
|
24
61119-SA0-000
Stay
|
61119-SA0-000 |
— | ||
|
25
|
25
61169-SA0-000
Stay
|
61169-SA0-000 |
— | ||
|
26
|
26
90344-692-003 NutCLIP, 6MM |
90344-692-003 |
from US $2.38 |
||
|
27
|
27
93493-080-200-8 Bolt-washer8X20 00000000 - 0S299999 |
93493-080-200-8 |
from US $0.74 |
||
| replacement | |||||
|
27
|
27
93403-080-200-8 Bolt-washer8X20 00000000 - 0S299999 |
93403-080-200-8 |
from US $0.74 |
||
|
28
|
28
93495-060-160-8 Bolt-washer6X16 |
93495-060-160-8 |
US $1.63 |
||
| replacement | |||||
|
28
|
28
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
29
|
29
93903-16110
Screw
|
93903-16110 |
— | ||
|
30
|
30
93903-26180 ScrewTAPPING, 6X12 |
93903-26180 |
from US $0.44 |
||
|
31
|
31
94103-06700 WasherPLAIN, 6MM |
94103-06700 |
from US $0.37 |
||
