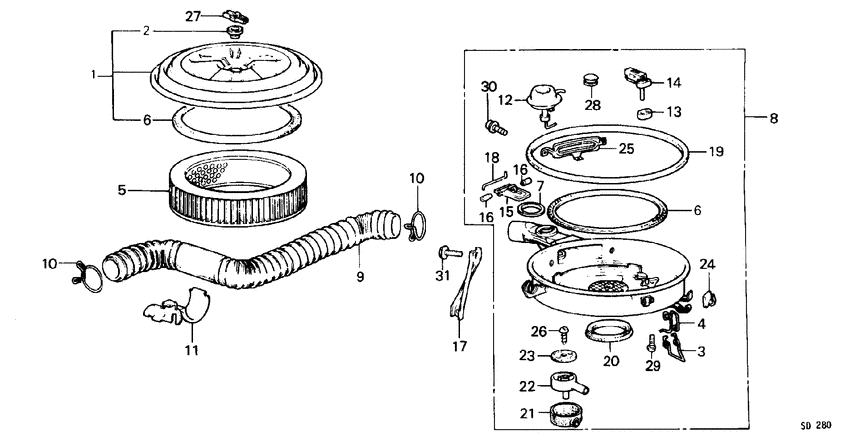

Air cleaner Diagram Honda CIVIC
- Year
- 1983
- Model code
- CIVIC
- Sales region
- General
- Engine
- EN3
- transmission
- 5MT
- Number of doors
- 4
- grade
- GL FINL
- area code
- KW
- air conditioner (dealer set)
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17210-PA1-020
Cover comp.
0S300001 - |
17210-PA1-020 |
— | ||
|
2
|
2
17212-PA0-000
Washer
|
17212-PA0-000 |
— | ||
| replacement | |||||
|
2
|
2
17212-PC0-000
Washer
|
17212-PC0-000 |
— | ||
|
3
|
3
17216-671-000
Clip A
|
17216-671-000 |
— | ||
|
4
|
4
17217-634-670
Clip b
|
17217-634-670 |
— | ||
|
5
|
5
17220-PA1-305
Element comp
0S300001 - |
17220-PA1-305 |
— | ||
|
6
|
6
17221-PA1-310
Packing
0S300001 - |
17221-PA1-310 |
— | ||
|
7
|
7
17222-657-300
Seal
|
17222-657-300 |
— | ||
|
8
|
8
17240-PA1-743
Case assy.
0S300001 - |
17240-PA1-743 |
— | ||
|
9
|
9
17242-PA1-641
Pipe
|
17242-PA1-641 |
— | ||
|
10
|
10
17243-671-000 ClipAIR INTAKE TUBE |
17243-671-000 |
US $3.22 |
||
|
11
|
11
17244-PA0-010
Clamp
0S300001 - |
17244-PA0-010 |
— | ||
|
12
|
12
17245-657-013 DiaphragmCONTROL VALVE |
17245-657-013 |
US $37.38 |
||
|
13
|
13
17247-PA0-000 InsulatorSENSOR |
17247-PA0-000 |
US $3.01 |
||
|
14
|
14
17250-PA0-003 Sensor compAIR IN. |
17250-PA0-003 |
US $53.25 |
||
|
15
|
15
17251-657-920
Valve comp.
|
17251-657-920 |
— | ||
|
16
|
16
17253-689-300 PlugCONTROL VALVE |
17253-689-300 |
US $3.15 |
||
|
17
|
17
17255-PA1-000
Stay
|
17255-PA1-000 |
— | ||
|
18
|
18
17257-634-310 PinPLUG LOCK |
17257-634-310 |
US $3.15 |
||
|
19
|
19
17258-634-300
Gasket
|
17258-634-300 |
— | ||
|
20
|
20
17266-PA1-640
Insulator
|
17266-PA1-640 |
— | ||
|
21
|
21
17270-PA1-000
Cover
|
17270-PA1-000 |
— | ||
|
22
|
22
17271-PA1-640
Chamber
|
17271-PA1-640 |
— | ||
|
23
|
23
17272-634-000
Gasket
|
17272-634-000 |
— | ||
|
24
|
24
17362-PA1-000
Clamp
|
17362-PA1-000 |
— | ||
|
25
|
25
17415-PA1-732
Plate
|
17415-PA1-732 |
— | ||
|
26
|
26
90070-PA5-660
Screw
|
90070-PA5-660 |
— | ||
|
27
|
27
90203-PB2-000 NutAIR CLEANER COVER (DACRO COATING) |
90203-PB2-000 |
from US $2.17 |
||
|
28
|
28
90809-PA1-730
Plug
|
90809-PA1-730 |
— | ||
|
29
|
29
93500-040-160-H ScrewPAN, 4X16 |
93500-040-160-H |
from US $0.37 |
||
|
30
|
30
93891-040-080-8 Screw-washer4X8 |
93891-040-080-8 |
from US $0.44 |
||
|
31
|
31
95700-060-100-8 BoltFLANGE, 6X10 |
95700-060-100-8 |
US $24.80 |
||
| replacement | |||||
|
31
|
31
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
