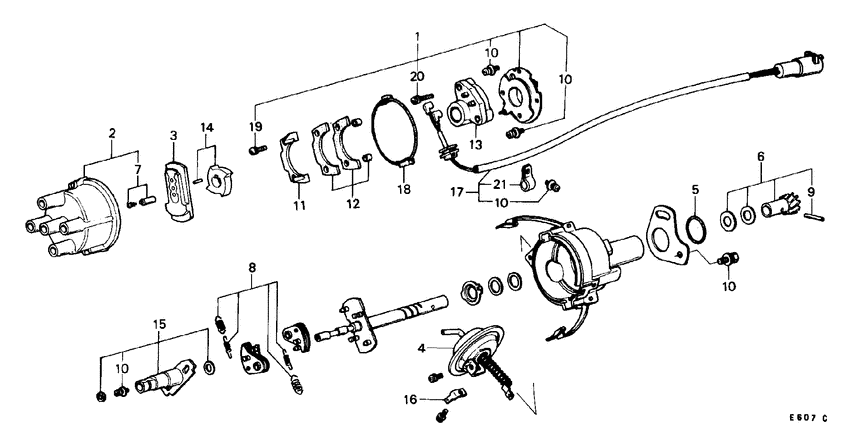

Distributor components (HITACHI) Diagram Honda CIVIC
- Year
- 1983
- Model code
- CIVIC
- Sales region
- General
- Engine
- EN3
- transmission
- 5MT
- Number of doors
- 4
- grade
- GL FINL
- area code
- KW
- air conditioner (dealer set)
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30101-PA1-733
Base
|
30101-PA1-733 |
— | ||
|
2
|
2
30102-PA0-005
Cap assy.
|
30102-PA0-005 |
— | ||
|
3
|
3
30103-PB9-601 HeadROTOR |
30103-PB9-601 |
US $10.22 |
||
|
4
|
4
30104-PB0-751
Control assy.
|
30104-PB0-751 |
— | ||
|
5
|
5
30110-590-075 O-ring26.4X3.1 (HITACHI) |
30110-590-075 |
US $5.46 |
||
|
6
|
6
30113-PA1-731
Pinion set
|
30113-PA1-731 |
— | ||
|
7
|
7
30115-634-005
Point assy
|
30115-634-005 |
— | ||
|
8
|
8
30116-PA1-731
Spring set
|
30116-PA1-731 |
— | ||
|
9
|
9
30118-634-005
Pin
|
30118-634-005 |
— | ||
|
10
|
10
30119-PA6-003
Screw kit
|
30119-PA6-003 |
— | ||
|
11
|
11
30121-PA1-731
Stator
|
30121-PA1-731 |
— | ||
|
12
|
12
30123-PC1-005
Magnet set
|
30123-PC1-005 |
— | ||
|
13
|
13
30124-PA1-731
Coil assy
|
30124-PA1-731 |
— | ||
|
14
|
14
30126-PA1-731
Reluctor set
|
30126-PA1-731 |
— | ||
|
15
|
15
30127-PA1-731
Shaft set
|
30127-PA1-731 |
— | ||
|
16
|
16
30129-PA6-911
Terminal
|
30129-PA6-911 |
— | ||
|
17
|
17
30131-PB9-601
Harness assy
|
30131-PB9-601 |
— | ||
|
18
|
18
30132-PA0-661
Gasket
|
30132-PA0-661 |
— | ||
|
19
|
19
30134-PA0-661
Screw-washer
|
30134-PA0-661 |
— | ||
|
20
|
20
30136-PA1-731
Screw
|
30136-PA1-731 |
— | ||
|
21
|
21
30137-PB9-601
Clamp
|
30137-PB9-601 |
— |
