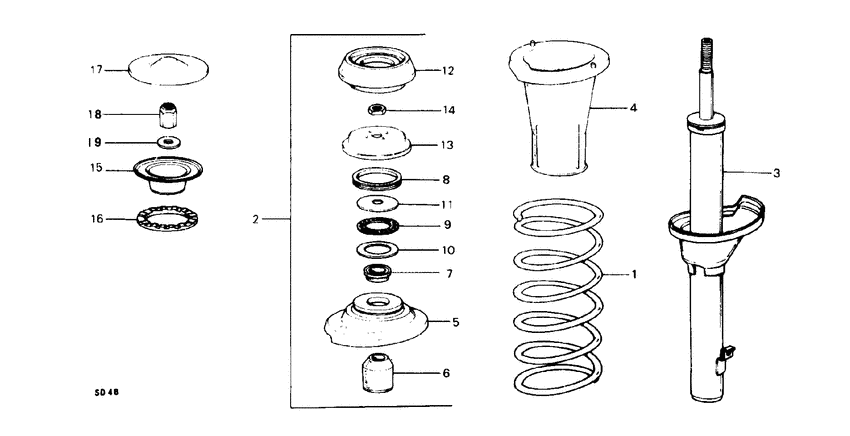

Front shock absorber Diagram Honda CIVIC
- Year
- 1982
- Model code
- CIVIC
- Sales region
- General
- Engine
- EN1
- transmission
- 4MT
- Number of doors
- 4
- grade
- STD
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51401-SA2-009
Spring
00000000 - 0S299999 |
51401-SA2-009 |
— | ||
|
1
|
1
51401-SA2-014
Spring
00000000 - 0S299999 |
51401-SA2-014 |
— | ||
|
2
|
2
51601-SA3-736
Absorber assy
00000000 - 0S299999 |
51601-SA3-736 |
— | ||
|
3
|
3
51605-SA0-927
Absorber unit
00000000 - 0S299999 |
51605-SA0-927 |
— | ||
|
4
|
4
51687-SA0-004
Cover
|
51687-SA0-004 |
— | ||
|
5
|
5
51688-SA0-004
Seat comp
|
51688-SA0-004 |
— | ||
|
6
|
6
51722-SA0-006 RubberFR. BUMP STOPPER (M.T.P. KASEI) 00000000 - 0S299999 |
51722-SA0-006 |
US $18.30 |
||
|
6
|
6
51722-SA0-004 RubberFR. BUMP STOPPER (HOKUSHIN) 00000000 - 0S299999 |
51722-SA0-004 |
US $14.21 |
||
|
6
|
6
51722-SA0-005 RubberFR. BUMP STOPPER (NOK) 00000000 - 0S299999 |
51722-SA0-005 |
US $18.30 |
||
|
7
|
7
51724-SA0-004
Seal
|
51724-SA0-004 |
— | ||
|
8
|
8
51725-671-004
Seal
|
51725-671-004 |
— | ||
|
9
|
9
51726-671-004
Bearing
|
51726-671-004 |
— | ||
|
10
|
10
51727-671-004
Race
|
51727-671-004 |
— | ||
|
11
|
11
51728-692-004
Spacer
|
51728-692-004 |
— | ||
|
12
|
12
51921-SA0-731
Rubber
|
51921-SA0-731 |
— | ||
|
12
|
12
51921-SA0-732
Rubber
|
51921-SA0-732 |
— | ||
|
13
|
13
51923-SA0-004
Base comp.
|
51923-SA0-004 |
— | ||
|
14
|
14
51924-692-004 NutSPRING SEAT (SHOWA) |
51924-692-004 |
US $4.62 |
||
|
14
|
14
51924-692-003
Nut
|
51924-692-003 |
— | ||
|
15
|
15
51925-SA0-010
Seat
|
51925-SA0-010 |
— | ||
|
16
|
16
51926-693-003
Stopper
00000000 - 0S299999 |
51926-693-003 |
— | ||
|
17
|
17
51932-SA0-010 CapSHOCK ABSORBER MOUNT |
51932-SA0-010 |
US $5.88 |
||
|
18
|
18
90212-692-003
Nut
|
90212-692-003 |
— | ||
|
19
|
19
94101-12800 WasherPLAIN, 12MM |
94101-12800 |
from US $0.41 |
