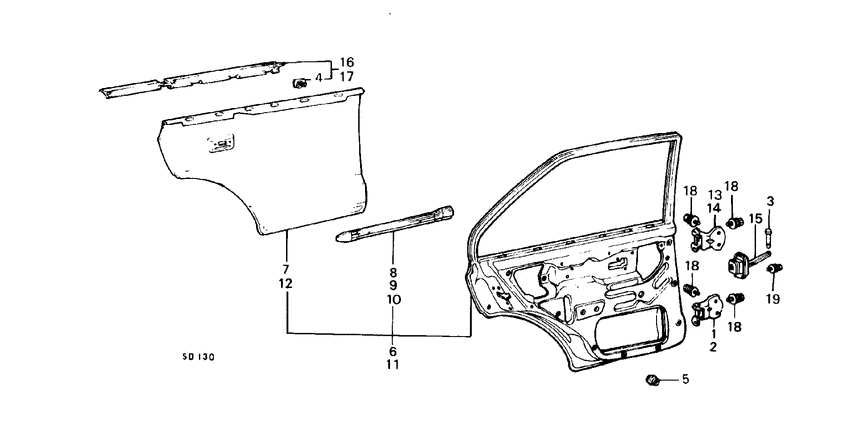

Rear door panel (5D) Diagram Honda CIVIC
- Year
- 1983
- Model code
- CIVIC
- Sales region
- General
- Engine
- EN3
- transmission
- 4MT
- Number of doors
- 5
- grade
- STD 1200
- area code
- KD
- left-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75710-SA0-013ZZ
Hinge a
|
75710-SA0-013ZZ |
— | ||
|
2
|
2
75720-SA0-013ZZ
Hinge b
|
75720-SA0-013ZZ |
— | ||
|
3
|
3
75760-692-000
Pin assy
|
75760-692-000 |
— | ||
|
4
|
4
75864-SA0-003
Clip
|
75864-SA0-003 |
— | ||
|
5
|
5
75891-634-600
Stopper
|
75891-634-600 |
— | ||
|
6
|
6
76110-SA1-020ZZ
Panel comp
0S300001 - |
76110-SA1-020ZZ |
— | ||
|
7
|
7
76111-SA1-310ZZ
Skin
|
76111-SA1-310ZZ |
— | ||
|
8
|
8
76127-SA1-300ZZ
Stiffener
|
76127-SA1-300ZZ |
— | ||
|
11
|
11
76150-SA1-020ZZ
Panel comp
0S300001 - |
76150-SA1-020ZZ |
— | ||
|
12
|
12
76151-SA1-310ZZ
Skin
|
76151-SA1-310ZZ |
— | ||
|
13
|
13
76710-SA1-013ZZ
Hinge
|
76710-SA1-013ZZ |
— | ||
|
14
|
14
76720-SA1-013ZZ
Hinge
|
76720-SA1-013ZZ |
— | ||
|
15
|
15
76750-SA1-013
Checker comp.
|
76750-SA1-013 |
— | ||
|
15
|
15
76750-SA1-004
Checker comp.
|
76750-SA1-004 |
— | ||
|
16
|
16
76860-SA1-003
Weatherstrip comp.
|
76860-SA1-003 |
— | ||
|
17
|
17
76865-SA1-003
Weatherstrip comp.
|
76865-SA1-003 |
— | ||
|
18
|
18
90157-SA0-000 Bolt-washer8X25 0S300001 - |
90157-SA0-000 |
US $2.37 |
||
|
19
|
19
93495-060-160-8 Bolt-washer6X16 |
93495-060-160-8 |
US $1.63 |
||
| replacement | |||||
|
19
|
19
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
