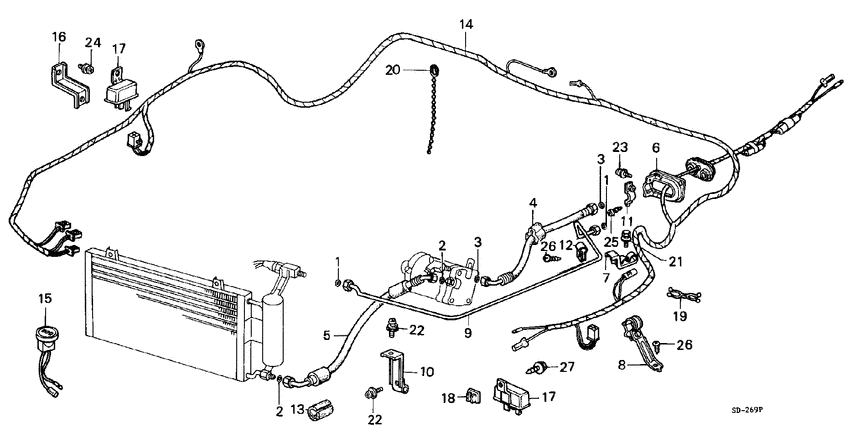

Air conditioner suction/ discharge hoses Diagram Honda CIVIC
- Year
- 1983
- Model code
- CIVIC
- Sales region
- General
- Engine
- EN3
- transmission
- 3AT
- Number of doors
- 5
- grade
- STD 1200
- area code
- KD
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38646-692-660
O-ring
|
38646-692-660 |
— | ||
| replacement | |||||
|
1
|
1
80874-SL0-900 O-ring3/8" |
80874-SL0-900 |
US $3.74 |
||
|
2
|
2
38647-692-660 O-ring1/2" |
38647-692-660 |
US $2.87 |
||
|
3
|
3
38648-692-660 O-ring5/8" |
38648-692-660 |
US $2.87 |
||
|
4
|
4
38670-SA0-662
Hose comp.
|
38670-SA0-662 |
— | ||
|
5
|
5
38671-SA0-662
Hose comp.
|
38671-SA0-662 |
— | ||
|
6
|
6
38676-692-000
Protector
|
38676-692-000 |
— | ||
|
7
|
7
38677-SA0-662
Stay a
0S300001 - |
38677-SA0-662 |
— | ||
|
8
|
8
38678-SA0-660
Stay comp. b
|
38678-SA0-660 |
— | ||
|
9
|
9
38681-SA0-661
Pipe
|
38681-SA0-661 |
— | ||
|
14
|
14
38710-SA0-720
Harness
|
38710-SA0-720 |
— | ||
|
15
|
15
38711-692-010
Protector
|
38711-692-010 |
— | ||
|
16
|
16
38731-SA0-000
Bracket
|
38731-SA0-000 |
— | ||
|
17
|
17
39400-657-672 Relay assyFAN (DENSO) |
39400-657-672 |
US $66.56 |
||
|
17
|
17
39400-SA5-003 Relay assyPOWER (4P) (MITSUBA) |
39400-SA5-003 |
US $56.19 |
||
|
20
|
20
90690-671-000
Band
|
90690-671-000 |
— | ||
|
21
|
21
93493-060-120-8 Bolt-washer6X12 |
93493-060-120-8 |
from US $0.59 |
||
| replacement | |||||
|
21
|
21
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
24
|
24
93893-060-120-8 Screw-washer6X12 |
93893-060-120-8 |
from US $0.59 |
||
|
25
|
25
93901-15220
Screw
|
93901-15220 |
— | ||
|
27
|
27
93904-16220 ScrewTAPPING, 6X16 |
93904-16220 |
US $0.44 |
||
