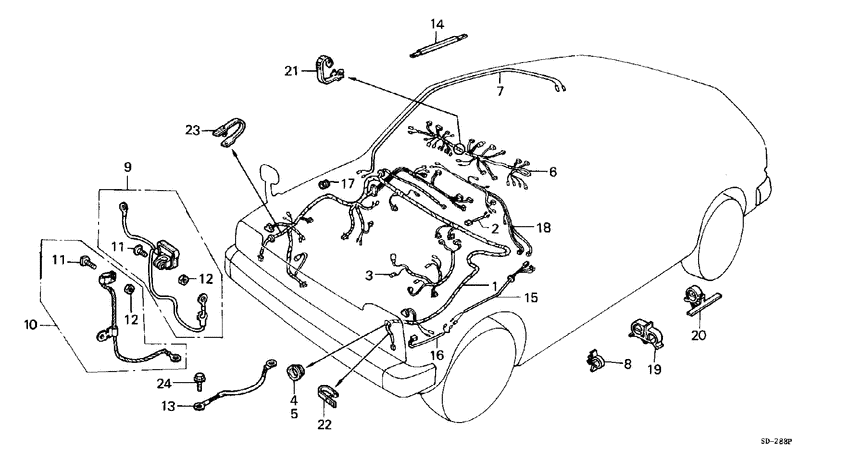

Wire harness (3D,4D,5D) Diagram Honda CIVIC
- Year
- 1982
- Model code
- CIVIC
- Sales region
- General
- Engine
- EN1
- transmission
- 3AT
- Number of doors
- 5
- grade
- DX
- area code
- KS
- rear wiper
- +
- head light washer
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32100-SA0-811
Harness
00000000 - 0S300000 |
32100-SA0-811 |
— | ||
|
2
|
2
32101-SA0-760
Sub cord
00000000 - 0S300000 |
32101-SA0-760 |
— | ||
|
3
|
3
32110-SA0-761
Sub cord
|
32110-SA0-761 |
— | ||
|
4
|
4
32111-594-000 Grommet24MM |
32111-594-000 |
US $10.92 |
||
|
6
|
6
32117-SA0-737
Harness
00000000 - 0S300000 |
32117-SA0-737 |
— | ||
|
7
|
7
32155-SA0-000
Cord assy
00000000 - 0S210591 |
32155-SA0-000 |
— | ||
|
7
|
7
32155-SA0-010
Cord assy
0S210592 - |
32155-SA0-010 |
— | ||
|
9
|
9
32410-SA0-672 Cable assySTARTER |
32410-SA0-672 |
US $46.08 |
||
|
9
|
9
32410-SA0-671 Cable assySTARTER |
32410-SA0-671 |
US $46.08 |
||
|
10
|
10
32600-SA0-673 Cable assyEARTH (FURUKAWA) |
32600-SA0-673 |
US $37.38 |
||
|
10
|
10
32600-SA0-672 Cable assyEARTH (SUMITOMO) |
32600-SA0-672 |
US $37.38 |
||
|
11
|
11
32601-SA5-004 BoltBATTERY TERMINAL (FURUKAWA) |
32601-SA5-004 |
US $3.43 |
||
|
11
|
11
32601-SA5-003 BoltBATTERY TERMINAL (SUMITOMO) |
32601-SA5-003 |
from US $3.50 |
||
|
12
|
12
32602-SA5-003 NutBATTERY TERMINAL (SUMITOMO) |
32602-SA5-003 |
from US $2.24 |
||
|
12
|
12
32602-SA5-004 NutBATTERY TERMINAL (FURUKAWA) |
32602-SA5-004 |
US $2.24 |
||
|
13
|
13
32610-659-000 CableSUB EARTH |
32610-659-000 |
US $10.36 |
||
|
14
|
14
32818-SA0-000
Protector
0S210592 - |
32818-SA0-000 |
— | ||
|
17
|
17
36043-657-000 GrommetWIRE HARNESS |
36043-657-000 |
US $6.56 |
||
| replacement | |||||
|
17
|
17
36037-657-000 Grommet a, tube |
36037-657-000 |
from US $2.17 |
||
|
18
|
18
39299-SA0-611
Harness
00000000 - 0S300000 |
39299-SA0-611 |
— | ||
|
19
|
19
90616-SA0-003
Clip
0S210592 - |
90616-SA0-003 |
— | ||
|
20
|
20
90618-SA0-003
Clip
0S210592 - |
90618-SA0-003 |
— | ||
|
21
|
21
90668-SA0-003
Strap a
|
90668-SA0-003 |
— | ||
|
23
|
23
90669-671-003 Strap bCABLE, 125MM (BLUE) |
90669-671-003 |
US $4.61 |
||
|
24
|
24
92000-06008-0H BoltHEX., 6X8 |
92000-06008-0H |
US $0.44 |
||
| replacement | |||||
|
24
|
24
92000-06008-08 BoltHEX., 6X8 |
92000-06008-08 |
from US $0.44 |
||
