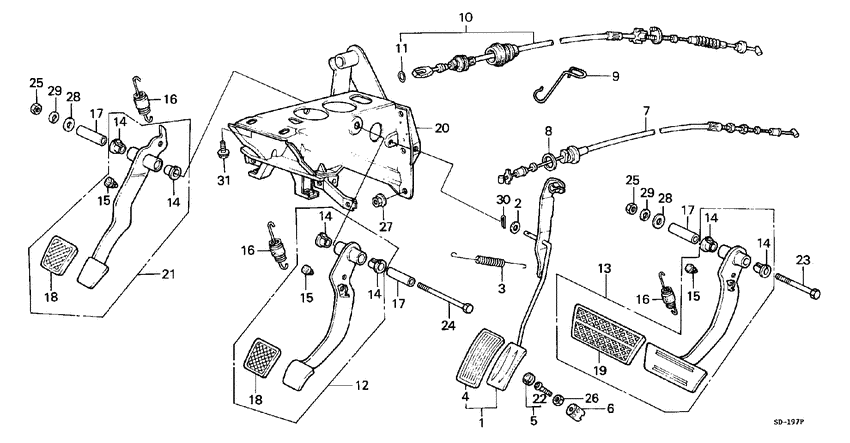

Pedal (T,U,E,Q) Diagram Honda CIVIC
- Year
- 1983
- Model code
- CIVIC
- Sales region
- General
- Engine
- EN3
- transmission
- 4MT
- Number of doors
- 5
- grade
- STD 1200
- area code
- KT
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17800-SA0-000
Pedal assy
|
17800-SA0-000 |
— | ||
|
2
|
2
17812-634-670 WasherACCELERATOR PEDAL |
17812-634-670 |
US $3.38 |
||
| replacement | |||||
|
2
|
2
17812-SA7-010 WasherACCELERATOR PEDAL |
17812-SA7-010 |
from US $2 |
||
|
3
|
3
17814-SA0-000
Spring
|
17814-SA0-000 |
— | ||
|
4
|
4
17816-692-000 CoverACCELERATOR PEDAL |
17816-692-000 |
US $6.16 |
||
|
5
|
5
17833-SA0-000
Bolt
|
17833-SA0-000 |
— | ||
|
6
|
6
17835-SA0-000
Base a
|
17835-SA0-000 |
— | ||
|
7
|
7
17910-SA0-600
Wire comp
|
17910-SA0-600 |
— | ||
|
8
|
8
17921-538-010
Seal
|
17921-538-010 |
— | ||
|
9
|
9
17925-634-600
Clamp
0S300001 - |
17925-634-600 |
— | ||
|
10
|
10
22910-693-020
Wire comp
|
22910-693-020 |
— | ||
|
11
|
11
22917-634-000
Seal
|
22917-634-000 |
— | ||
|
12
|
12
46500-SA0-000
Pedal assy
|
46500-SA0-000 |
— | ||
|
14
|
14
46504-679-300 BushPEDAL |
46504-679-300 |
from US $5.37 |
||
|
15
|
15
46505-SA5-000 PadPEDAL STOPPER |
46505-SA5-000 |
from US $2.38 |
||
|
16
|
16
46530-SA0-000
Spring assy
|
46530-SA0-000 |
— | ||
|
16
|
16
46530-SA0-900
Spring assy
0S300001 - |
46530-SA0-900 |
— | ||
|
17
|
17
46535-692-000 CollarPEDAL |
46535-692-000 |
US $6.86 |
||
|
18
|
18
46545-538-010 CoverPEDAL |
46545-538-010 |
from US $3.77 |
||
|
20
|
20
46590-SA0-020
Bracket
0S300001 - |
46590-SA0-020 |
— | ||
|
21
|
21
46900-SA0-010
Pedal assy
0S300001 - |
46900-SA0-010 |
— | ||
|
22
|
22
90111-671-010
Bolt
|
90111-671-010 |
— | ||
|
24
|
24
92200-10130-0J BoltHEX., 10X130 |
92200-10130-0J |
US $1.63 |
||
|
25
|
25
94001-100-800-S NutHEX., 10MM |
94001-100-800-S |
from US $0.52 |
||
|
27
|
27
94070-08080 Nut-washer8MM |
94070-08080 |
from US $0.52 |
||
|
28
|
28
94101-10800 WasherPLAIN, 10MM |
94101-10800 |
from US $0.52 |
||
|
29
|
29
94111-10800 WasherSPRING, 10MM |
94111-10800 |
from US $0.44 |
||
|
30
|
30
94201-25180 PinSPLIT, 2.5X18 |
94201-25180 |
from US $0.37 |
||
|
31
|
31
95700-080-200-8 BoltFLANGE, 8X20 0S300001 - |
95700-080-200-8 |
from US $0.59 |
||
| replacement | |||||
|
31
|
31
95701-080-200-8 BoltFLANGE, 8X20 0S300001 - |
95701-080-200-8 |
from US $0.58 |
||
