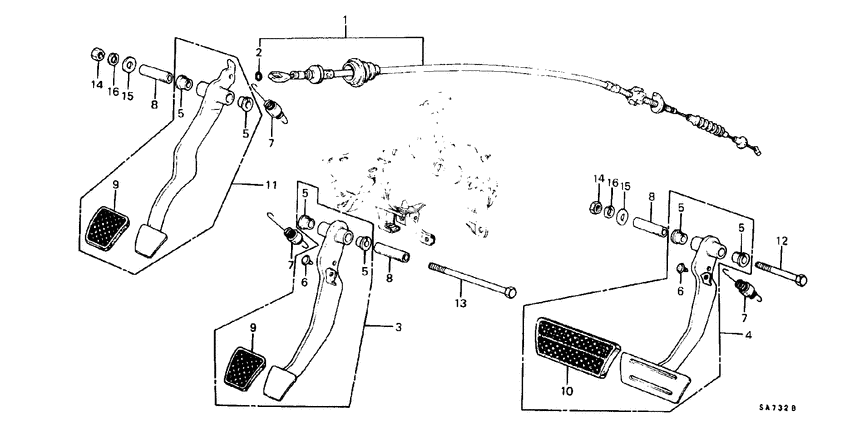

Pedal (2) Diagram Honda CIVIC
- Year
- 1983
- Model code
- CIVIC WAGON
- Sales region
- General
- Engine
- EN1
- transmission
- 3AT
- Number of doors
- 5
- grade
- DX
- area code
- KF
- yellow bulb
- +
- rear wiper
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
4
|
4
46500-SA0-782
Pedal assy
0S300001 - |
46500-SA0-782 |
— | ||
|
5
|
5
46504-679-300 BushPEDAL |
46504-679-300 |
from US $5.37 |
||
|
6
|
6
46505-SA5-000 PadPEDAL STOPPER |
46505-SA5-000 |
from US $2.38 |
||
|
7
|
7
46530-SA0-900
Spring assy
|
46530-SA0-900 |
— | ||
|
8
|
8
46535-692-000 CollarPEDAL |
46535-692-000 |
US $6.86 |
||
|
10
|
10
46545-692-980 CoverBRAKE PEDAL |
46545-692-980 |
from US $7.20 |
||
|
12
|
12
92200-10075-0J BoltHEX., 10X75 |
92200-10075-0J |
US $1.04 |
||
|
14
|
14
94001-100-800-S NutHEX., 10MM |
94001-100-800-S |
from US $0.52 |
||
|
15
|
15
94101-10800 WasherPLAIN, 10MM |
94101-10800 |
from US $0.52 |
||
|
16
|
16
94111-10800 WasherSPRING, 10MM |
94111-10800 |
from US $0.44 |
