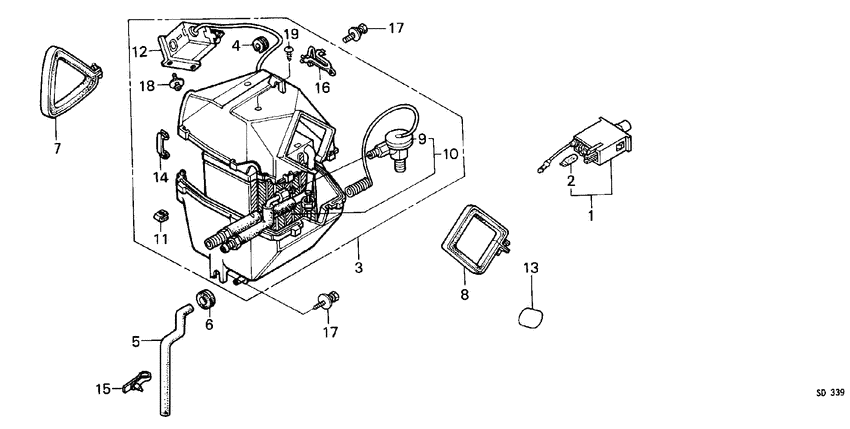

Air conditioner (COOLER UNIT) Diagram Honda CIVIC
- Year
- 1983
- Model code
- CIVIC WAGON
- Sales region
- General
- Engine
- EN1
- transmission
- 5MT
- Number of doors
- 5
- grade
- DX
- area code
- KG
- air conditioner (dealer set)
- +
- rear wiper
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35850-693-003
Switch assy
|
35850-693-003 |
— | ||
|
2
|
2
37553-SA0-003
Bulb & socket
|
37553-SA0-003 |
— | ||
|
3
|
3
38620-692-661
Cooler unit
|
38620-692-661 |
— | ||
|
4
|
4
38625-692-000
Grommet
|
38625-692-000 |
— | ||
|
5
|
5
38626-692-000
Hose
|
38626-692-000 |
— | ||
|
6
|
6
38627-692-000
Grommet
|
38627-692-000 |
— | ||
|
7
|
7
38638-692-010
Band a
0S300001 - |
38638-692-010 |
— | ||
|
8
|
8
38639-692-010
Band b
|
38639-692-010 |
— | ||
|
9
|
9
38650-692-661
Valve assy.
|
38650-692-661 |
— | ||
|
10
|
10
38655-692-662
Evaporator sub assy.
|
38655-692-662 |
— | ||
|
11
|
11
38659-692-660
Nut
|
38659-692-660 |
— | ||
|
12
|
12
38660-692-661
Thermostat
|
38660-692-661 |
— | ||
|
13
|
13
76841-672-000
Seal
|
76841-672-000 |
— | ||
|
14
|
14
90659-692-000 ClampCASE |
90659-692-000 |
from US $2.10 |
||
|
15
|
15
90668-671-003 Strap aCABLE, 95MM (WHITE) |
90668-671-003 |
US $3.96 |
||
|
16
|
16
90699-692-003
Cap
|
90699-692-003 |
— | ||
|
17
|
17
93495-060-160-0 Bolt-washer6X16 |
93495-060-160-0 |
from US $0.59 |
||
| replacement | |||||
|
17
|
17
93405-060-160-0 Bolt-washer6X16 |
93405-060-160-0 |
from US $0.59 |
||
|
18
|
18
93894-040-081-8 Screw-washer4X8 |
93894-040-081-8 |
US $0.44 |
||
|
19
|
19
93903-15280 ScrewTAPPING, 5X12 |
93903-15280 |
US $0.37 |
||
