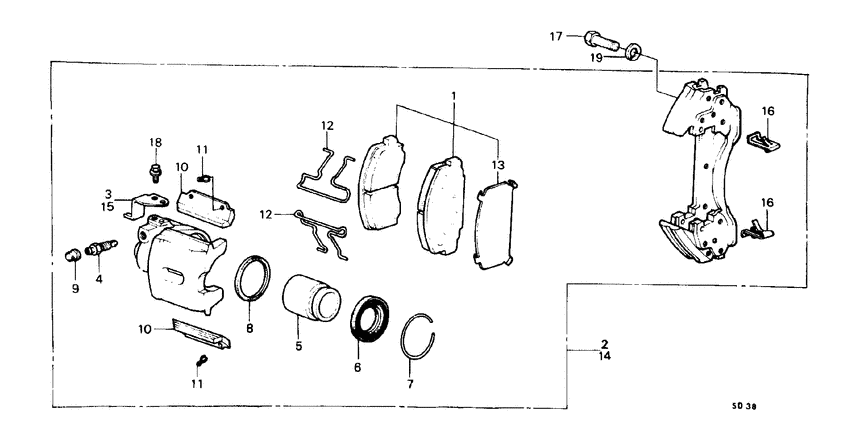

Front brake (WAGON) Diagram Honda CIVIC
- Year
- 1983
- Model code
- CIVIC WAGON
- Sales region
- General
- Engine
- EN1
- transmission
- 3AT
- Number of doors
- 5
- grade
- DX
- area code
- KG
- rear wiper
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45022-SA3-671
Pad set
|
45022-SA3-671 |
— | ||
|
2
|
2
45210-SA3-672
Caliper assy
|
45210-SA3-672 |
— | ||
|
3
|
3
45213-671-673
Bracket
|
45213-671-673 |
— | ||
|
4
|
4
45215-671-672 ScrewBLEEDER |
45215-671-672 |
US $9.24 |
||
|
5
|
5
45216-SA3-671
Piston
|
45216-SA3-671 |
— | ||
|
6
|
6
45216-671-672
Boot
|
45216-671-672 |
— | ||
|
7
|
7
45217-671-672
Ring
|
45217-671-672 |
— | ||
|
8
|
8
45218-671-672
Seal
|
45218-671-672 |
— | ||
|
9
|
9
45219-671-672 CapBLEEDER SCREW |
45219-671-672 |
from US $2.73 |
||
|
10
|
10
45221-671-672
Plug
|
45221-671-672 |
— | ||
|
11
|
11
45222-671-672
Pin
|
45222-671-672 |
— | ||
|
12
|
12
45223-SA3-671
Spring
|
45223-SA3-671 |
— | ||
|
13
|
13
45228-SA3-672
Shim
0S300001 - |
45228-SA3-672 |
— | ||
|
14
|
14
45230-SA3-672
Caliper assy
|
45230-SA3-672 |
— | ||
|
15
|
15
45233-671-673
Bracket
|
45233-671-673 |
— | ||
|
16
|
16
45256-671-672
Spring
|
45256-671-672 |
— | ||
|
17
|
17
90107-663-670 BoltCALIPER MOUNTING |
90107-663-670 |
US $3.57 |
||
|
18
|
18
93492-060-120-8 Bolt-washer6X12 |
93492-060-120-8 |
from US $0.52 |
||
| replacement | |||||
|
18
|
18
93402-060-120-8 Bolt-washer6X12 |
93402-060-120-8 |
from US $0.52 |
||
|
19
|
19
94111-12800 WasherSPRING, 12MM |
94111-12800 |
from US $0.44 |
||
