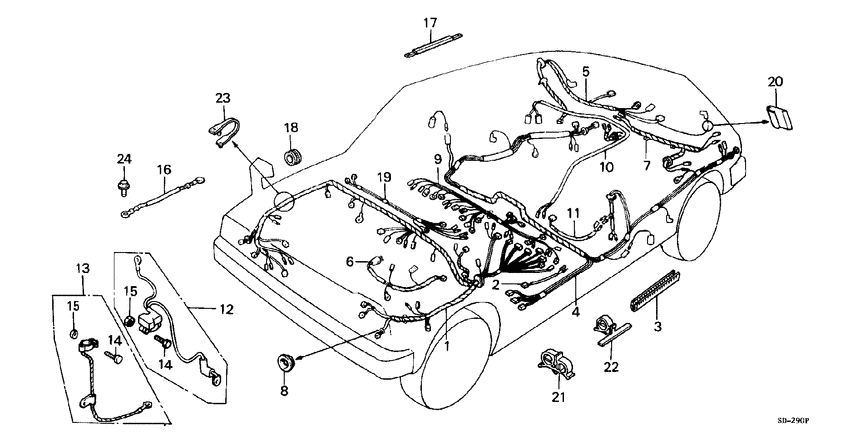

Wire harness (WAGON) Diagram Honda CIVIC
- Year
- 1983
- Model code
- CIVIC WAGON
- Sales region
- General
- Engine
- EN1
- transmission
- 3AT
- Number of doors
- 5
- grade
- DX
- area code
- KG
- rear wiper
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32100-SA0-885
Harness
0S300001 - |
32100-SA0-885 |
— | ||
|
3
|
3
32104-SA3-000
Protector
0S300001 - |
32104-SA3-000 |
— | ||
|
4
|
4
32107-SA3-746
Harness
0S300001 - |
32107-SA3-746 |
— | ||
|
5
|
5
32109-SA3-704
Cord
0S300001 - |
32109-SA3-704 |
— | ||
|
6
|
6
32110-SA0-760
Sub cord
|
32110-SA0-760 |
— | ||
|
7
|
7
32111-SA0-741
Cord
0S300001 - |
32111-SA0-741 |
— | ||
|
8
|
8
32111-594-000 Grommet24MM |
32111-594-000 |
US $10.92 |
||
|
9
|
9
32117-SA0-761
Harness
0S300001 - |
32117-SA0-761 |
— | ||
|
10
|
10
32155-SA0-010
Cord assy
0S203537 - |
32155-SA0-010 |
— | ||
|
11
|
11
32170-SA0-010
Cord
|
32170-SA0-010 |
— | ||
|
12
|
12
32410-SA0-671 Cable assySTARTER |
32410-SA0-671 |
US $46.08 |
||
|
12
|
12
32410-SA0-672 Cable assySTARTER |
32410-SA0-672 |
US $46.08 |
||
|
13
|
13
32600-SA0-673 Cable assyEARTH (FURUKAWA) |
32600-SA0-673 |
US $37.38 |
||
|
13
|
13
32600-SA0-672 Cable assyEARTH (SUMITOMO) |
32600-SA0-672 |
US $37.38 |
||
|
14
|
14
32601-SA5-004 BoltBATTERY TERMINAL (FURUKAWA) |
32601-SA5-004 |
US $3.43 |
||
|
14
|
14
32601-SA5-003 BoltBATTERY TERMINAL (SUMITOMO) |
32601-SA5-003 |
from US $3.50 |
||
|
15
|
15
32602-SA5-004 NutBATTERY TERMINAL (FURUKAWA) |
32602-SA5-004 |
US $2.24 |
||
|
15
|
15
32602-SA5-003 NutBATTERY TERMINAL (SUMITOMO) |
32602-SA5-003 |
from US $2.24 |
||
|
16
|
16
32610-659-000 CableSUB EARTH |
32610-659-000 |
US $10.36 |
||
|
17
|
17
32818-SA0-000
Protector
0S203537 - |
32818-SA0-000 |
— | ||
|
18
|
18
36043-657-000 GrommetWIRE HARNESS |
36043-657-000 |
US $6.56 |
||
| replacement | |||||
|
18
|
18
36037-657-000 Grommet a, tube |
36037-657-000 |
from US $2.17 |
||
|
19
|
19
39299-SA0-613
Harness
0S300001 - |
39299-SA0-613 |
— | ||
|
20
|
20
74203-SA0-000
Holder
|
74203-SA0-000 |
— | ||
|
21
|
21
90616-SA0-003
Clip
0S203537 - |
90616-SA0-003 |
— | ||
|
22
|
22
90618-SA0-003
Clip
0S203537 - |
90618-SA0-003 |
— | ||
|
23
|
23
90669-671-003 Strap bCABLE, 125MM (BLUE) |
90669-671-003 |
US $4.61 |
||
|
24
|
24
92000-06008-0H BoltHEX., 6X8 |
92000-06008-0H |
US $0.44 |
||
| replacement | |||||
|
24
|
24
92000-06008-08 BoltHEX., 6X8 |
92000-06008-08 |
from US $0.44 |
||
