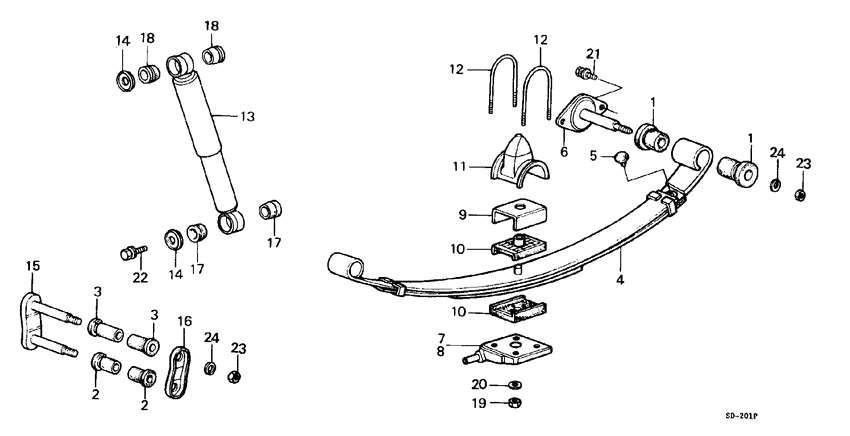

Rear shock absorber (WAGON) Diagram Honda CIVIC
- Year
- 1983
- Model code
- CIVIC WAGON
- Sales region
- General
- Engine
- EN1
- transmission
- 3AT
- Number of doors
- 5
- grade
- STD
- area code
- KQ
- right-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52432-SA3-004
Bush
|
52432-SA3-004 |
— | ||
|
2
|
2
52433-SA2-004
Bush
|
52433-SA2-004 |
— | ||
|
3
|
3
52434-679-004
Bush
|
52434-679-004 |
— | ||
|
4
|
4
52440-SA3-682
Spring
|
52440-SA3-682 |
— | ||
|
4
|
4
52440-SA3-681
Spring
|
52440-SA3-681 |
— | ||
|
5
|
5
52441-SA2-005
Silencer
|
52441-SA2-005 |
— | ||
|
5
|
5
52441-SA2-003
Silencer
|
52441-SA2-003 |
— | ||
|
6
|
6
52460-SA2-000
Pin comp.
|
52460-SA2-000 |
— | ||
|
7
|
7
52521-SA2-000
Clamp
|
52521-SA2-000 |
— | ||
|
8
|
8
52522-SA2-000
Clamp
|
52522-SA2-000 |
— | ||
|
9
|
9
52523-SA2-010
Plate
0S300001 - |
52523-SA2-010 |
— | ||
|
10
|
10
52524-SA2-014
Pad
|
52524-SA2-014 |
— | ||
|
11
|
11
52531-SA2-003
Stopper
|
52531-SA2-003 |
— | ||
|
12
|
12
52542-SA2-000
U-bolt
|
52542-SA2-000 |
— | ||
|
13
|
13
52610-SA2-024
Absorber assy
0S300001 - |
52610-SA2-024 |
— | ||
|
14
|
14
52612-663-010
Washer
|
52612-663-010 |
— | ||
|
15
|
15
52625-SA2-000
Shackle comp.
|
52625-SA2-000 |
— | ||
|
16
|
16
52626-SA2-000
Plate
|
52626-SA2-000 |
— | ||
|
17
|
17
52676-SA2-004
Rubber
|
52676-SA2-004 |
— | ||
|
18
|
18
52678-SA2-004
Rubber
|
52678-SA2-004 |
— | ||
|
19
|
19
90305-538-000
Nut
|
90305-538-000 |
— | ||
|
20
|
20
91061-611-005
Washer
|
91061-611-005 |
— | ||
|
21
|
21
93492-080-200-8 Bolt-washer8X20 |
93492-080-200-8 |
from US $0.59 |
||
| replacement | |||||
|
21
|
21
93402-080-200-8 Bolt-washer8X20 |
93402-080-200-8 |
from US $0.74 |
||
|
22
|
22
93492-100-200-8 Bolt-washer10X20 |
93492-100-200-8 |
US $0.74 |
||
|
23
|
23
94001-100-800-S NutHEX., 10MM |
94001-100-800-S |
from US $0.52 |
||
|
24
|
24
94111-10000 WasherSPRING, 10MM |
94111-10000 |
from US $0.44 |
||
