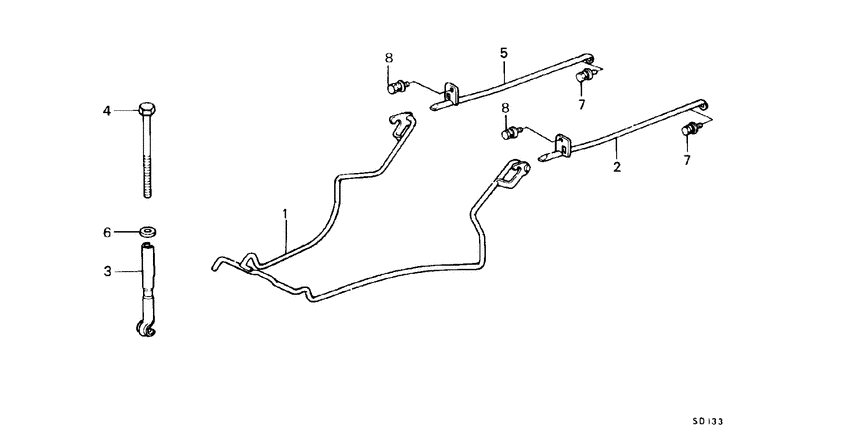

Spare tire carrier (WAGON) Diagram Honda CIVIC
- Year
- 1983
- Model code
- CIVIC WAGON
- Sales region
- General
- Engine
- EN1
- transmission
- 3AT
- Number of doors
- 5
- grade
- STD
- area code
- KQ
- right-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
72220-SA2-000
Carrier comp.
|
72220-SA2-000 |
— | ||
|
2
|
2
72221-SA2-000
Guide
|
72221-SA2-000 |
— | ||
|
3
|
3
72222-SA2-000
Hook
|
72222-SA2-000 |
— | ||
|
4
|
4
72223-SA2-000
Bolt
|
72223-SA2-000 |
— | ||
|
5
|
5
72231-SA2-000
Guide
|
72231-SA2-000 |
— | ||
|
6
|
6
83904-663-000
Washer
|
83904-663-000 |
— | ||
|
7
|
7
93492-100-200-8 Bolt-washer10X20 |
93492-100-200-8 |
US $0.74 |
||
|
8
|
8
93493-080-160-8 Bolt-washer8X16 |
93493-080-160-8 |
from US $0.74 |
||
| replacement | |||||
|
8
|
8
93403-080-160-8 Bolt-washer8X16 |
93403-080-160-8 |
from US $0.74 |
||
