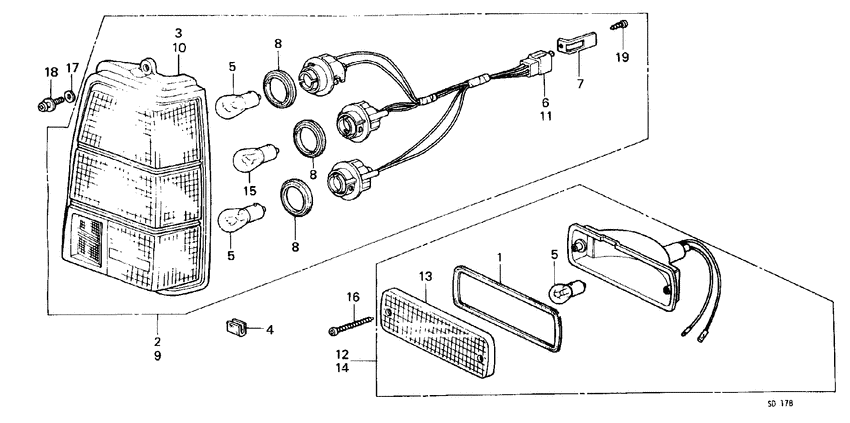

Taillight (WAGON) Diagram Honda CIVIC
- Year
- 1983
- Model code
- CIVIC WAGON
- Sales region
- General
- Engine
- EN1
- transmission
- 3AT
- Number of doors
- 5
- grade
- STD
- area code
- KQ
- right-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33303-692-003 PackingSTANLEY |
33303-692-003 |
US $9.64 |
||
| replacement | |||||
|
1
|
1
33303-958-003
Gasket
|
33303-958-003 |
— | ||
|
2
|
2
33500-SA3-651
Taillight assy.
|
33500-SA3-651 |
— | ||
|
3
|
3
33501-SA3-003
Lens
|
33501-SA3-003 |
— | ||
|
4
|
4
33502-SA2-000
Rubber
|
33502-SA2-000 |
— | ||
|
5
|
5
33503-506-600 Bulb12V 21W) (STANLEY |
33503-506-600 |
US $9.37 |
||
| replacements | |||||
|
5
|
5
34905-KV7-671 Bulb,winker (12v |
34905-KV7-671 |
from US $3.32 |
||
|
5
|
5
34908-634-611 Bulb12V 21W) (ECE) (STANLEY |
34908-634-611 |
from US $2.66 |
||
|
6
|
6
33505-SA2-003
Cord comp
|
33505-SA2-003 |
— | ||
|
7
|
7
33507-SA2-003
Stay
|
33507-SA2-003 |
— | ||
|
8
|
8
33518-SA2-003 GasketSEAL |
33518-SA2-003 |
from US $2.24 |
||
|
9
|
9
33550-SA3-651
Taillight assy.
|
33550-SA3-651 |
— | ||
|
10
|
10
33551-SA3-003
Lens
|
33551-SA3-003 |
— | ||
|
11
|
11
33555-SA2-003
Cord comp
|
33555-SA2-003 |
— | ||
|
15
|
15
34906-594-622 Bulb12V 21/5W |
34906-594-622 |
US $3.08 |
||
|
17
|
17
90544-SA3-000
Washer
|
90544-SA3-000 |
— | ||
|
18
|
18
93894-060-160-8 Screw-washer6X16 |
93894-060-160-8 |
US $0.52 |
||
|
19
|
19
93901-24320 ScrewTAPPING, 4X12 |
93901-24320 |
from US $0.37 |
||
