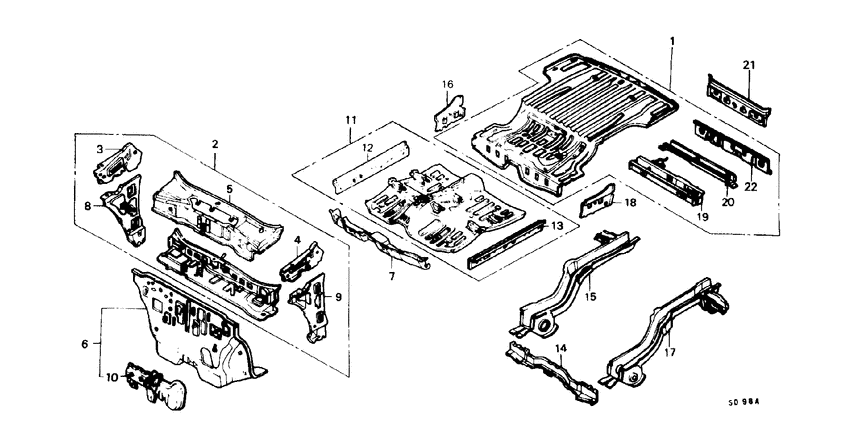

Body structure components (3; WAGON) Diagram Honda CIVIC
- Year
- 1982
- Model code
- CIVIC WAGON
- Sales region
- General
- Engine
- EN1
- transmission
- 5MT
- Number of doors
- 5
- grade
- STD
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
04761-SA3-660ZZ Floor compRR. 00000000 - 0S299999 |
04761-SA3-660ZZ |
US $1,620.48 |
||
|
2
|
2
60610-SA0-736ZZ
Dashboard comp.
00000000 - 0S299999 |
60610-SA0-736ZZ |
— | ||
|
3
|
3
60617-SA0-310ZZ
Panel
00000000 - 0S299999 |
60617-SA0-310ZZ |
— | ||
|
4
|
4
60618-SA0-310ZZ
Panel
00000000 - 0S299999 |
60618-SA0-310ZZ |
— | ||
|
5
|
5
60651-SA0-734ZZ
Windshield
|
60651-SA0-734ZZ |
— | ||
|
6
|
6
60660-SA0-733ZZ
Dashboard comp.
00000000 - 0S299999 |
60660-SA0-733ZZ |
— | ||
|
7
|
7
60668-SA0-740ZZ
Crossmember comp.
|
60668-SA0-740ZZ |
— | ||
|
8
|
8
60670-SA0-660ZZ Pillar comp.R. FR. INNER LOWER |
60670-SA0-660ZZ |
US $117.76 |
||
|
9
|
9
60680-SA0-660ZZ Pillar comp.L. FR. INNER LOWER |
60680-SA0-660ZZ |
US $117.76 |
||
|
10
|
10
60690-SA0-660ZZ
Frame comp
|
60690-SA0-660ZZ |
— | ||
|
11
|
11
70210-SA1-732ZZ
Floor comp
00000000 - 0S299999 |
70210-SA1-732ZZ |
— | ||
|
12
|
12
70220-SA1-300ZZ
Sill comp.
00000000 - 0S299999 |
70220-SA1-300ZZ |
— | ||
|
13
|
13
70225-SA1-300ZZ
Sill comp.
00000000 - 0S299999 |
70225-SA1-300ZZ |
— | ||
|
14
|
14
70235-SA3-731ZZ Crossmember comp.MIDDLE FLOOR 00000000 - 0S299999 |
70235-SA3-731ZZ |
US $195.84 |
||
|
15
|
15
70250-SA3-661ZZ
Frame comp
|
70250-SA3-661ZZ |
— | ||
|
16
|
16
70255-SA1-300ZZ
Extension comp
00000000 - 0S299999 |
70255-SA1-300ZZ |
— | ||
|
17
|
17
70260-SA3-661ZZ
Frame comp
00000000 - 0S299999 |
70260-SA3-661ZZ |
— | ||
|
19
|
19
70280-SA2-300ZZ
Crossmember comp. a
|
70280-SA2-300ZZ |
— | ||
|
20
|
20
70291-SA2-310ZZ
Crossmember b
|
70291-SA2-310ZZ |
— | ||
|
21
|
21
80330-SA3-662ZZ
Skirt comp.
00000000 - 0S299999 |
80330-SA3-662ZZ |
— | ||
|
22
|
22
80334-SA3-661ZZ
Skirt comp.
|
80334-SA3-661ZZ |
— |
