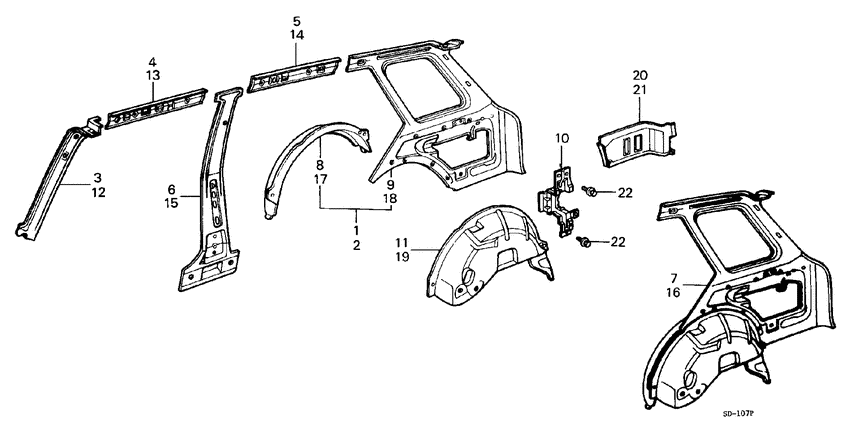

Body structure components (12; WAGON) Diagram Honda CIVIC
- Year
- 1982
- Model code
- CIVIC WAGON
- Sales region
- General
- Engine
- EN1
- transmission
- 5MT
- Number of doors
- 5
- grade
- STD
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
04671-SA2-310ZZ
Panel comp
00000000 - 0S299999 |
04671-SA2-310ZZ |
— | ||
|
2
|
2
04681-SA2-310ZZ
Panel comp
00000000 - 0S299999 |
04681-SA2-310ZZ |
— | ||
|
3
|
3
70511-SA2-320ZZ PillarR. FR. INNER UPPER 00000000 - 0S299999 |
70511-SA2-320ZZ |
US $69.76 |
||
|
4
|
4
70541-SA2-310ZZ
Rail
|
70541-SA2-310ZZ |
— | ||
|
5
|
5
70542-SA2-300ZZ
Rail
|
70542-SA2-300ZZ |
— | ||
|
6
|
6
70560-SA1-310ZZ
Pillar comp.
|
70560-SA1-310ZZ |
— | ||
|
7
|
7
70570-SA3-310ZZ Panel compR. RR. INSIDE 00000000 - 0S299999 |
70570-SA3-310ZZ |
US $947.20 |
||
|
8
|
8
70572-SA2-300ZZ
Panel
|
70572-SA2-300ZZ |
— | ||
|
9
|
9
70580-SA2-310ZZ
Sub panel comp.
00000000 - 0S299999 |
70580-SA2-310ZZ |
— | ||
|
10
|
10
70581-SA2-000ZZ BracketJACK 00000000 - 0S299999 |
70581-SA2-000ZZ |
US $32.64 |
||
|
11
|
11
70590-SA3-300ZZ
Wheelhouse comp.
00000000 - 0S299999 |
70590-SA3-300ZZ |
— | ||
|
12
|
12
70611-SA2-320ZZ PillarL. FR. INNER UPPER 00000000 - 0S299999 |
70611-SA2-320ZZ |
US $69.76 |
||
|
13
|
13
70641-SA2-310ZZ
Rail
|
70641-SA2-310ZZ |
— | ||
|
14
|
14
70642-SA2-300ZZ
Rail
|
70642-SA2-300ZZ |
— | ||
|
15
|
15
70660-SA1-310ZZ
Pillar comp.
|
70660-SA1-310ZZ |
— | ||
|
16
|
16
70670-SA3-310ZZ Panel compL. RR. INSIDE 00000000 - 0S299999 |
70670-SA3-310ZZ |
US $947.20 |
||
|
17
|
17
70672-SA2-300ZZ
Panel
|
70672-SA2-300ZZ |
— | ||
|
18
|
18
70680-SA2-310ZZ
Sub panel comp.
|
70680-SA2-310ZZ |
— | ||
|
19
|
19
70690-SA3-300ZZ
Wheelhouse comp.
00000000 - 0S299999 |
70690-SA3-300ZZ |
— | ||
|
20
|
20
80341-SA2-300ZZ
Panel
|
80341-SA2-300ZZ |
— | ||
|
21
|
21
80361-SA2-300ZZ
Panel
|
80361-SA2-300ZZ |
— | ||
|
22
|
22
93494-060-120-8 Bolt-washer6X12 |
93494-060-120-8 |
from US $0.52 |
||
| replacement | |||||
|
22
|
22
93404-060-120-7 Bolt-washer6X12 |
93404-060-120-7 |
from US $0.52 |
||
